Granule Maxi
User manual
GrANuldisk AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
EN
Contents
........................................................................................
..........................................................
.......................................................................................
...................................................................................
Art. no. EN162950912 - Canada
®
4
5
12
15
16
.....................................

Advertisement

loading
Need help?

Need help?

Do you have a question about the Granule Maxi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRANULDISK Granule Maxi

Summary of Contents for GRANULDISK Granule Maxi

  • Page 1: Table Of Contents

    3. dAilY ClEANiNG ..................4. HACCP OPErATiON ANd HYGiENE dOCuMENTATiON ................... 5. TrOuBlEsHOOTiNG and AlArMs ........Art. no. EN162950912 – Canada GrANuldisk AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors.

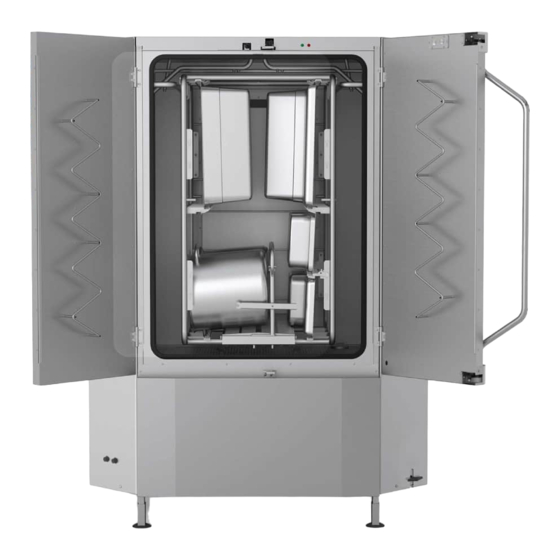

  • Page 2 75 MAlMÖ, sweden declares that the following machinery: The GrANuldisk system Granule Maxi The Granule Maxi is a Granule potwashing machine – a potwashing machine for commercial kitchens that is designed for washing wares like pots and pans. Basic conception...
