Granule Flexi®
User manual
Art.no EN16265201104
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. +46 40 671 50 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Granule Flexi and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRANULDISK Granule Flexi

Summary of Contents for GRANULDISK Granule Flexi

  • Page 1 Granule Flexi® User manual Art.no EN16265201104 GRANULDISK AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors. www.granuldisk.com Tel. +46 40 671 50 60...

  • Page 3: Table Of Contents

    Contents Declaration of Conformity General Description and Safety 1.1 To the user 1.2 Safety regulations 1.3 Technical data Operating Daily cleaning 3.1 Collecting and cleaning PowerGran- ules 3.2 Cleaning inside the machine 3.3 Replacement of cleaned items 3.4 Over night and at longer stoppages 3.5 GD Memo™...

  • Page 5: Declaration Of Conformity

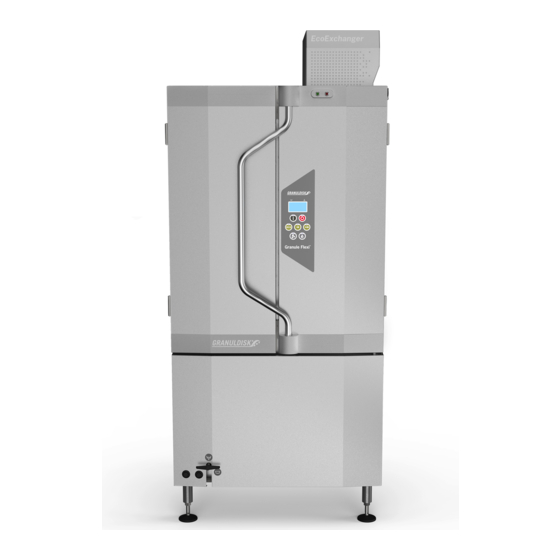

    The GRANULDISK system Granule Flexi®. The Granule Flexi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing such wares as pots and pans. Basic conception a.
  • Page 6 Declaration of Conformity...

  • Page 7: General Description And Safety

    Granule Flexi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing pots and pans. This manual is your guide for the correct installation and use of the Granule Flexi® pot washing machine.

  • Page 8: Technical Data

    1.3 Technical data 1 General Description and Safety Technical data Weight ......372 kg (filled machine), 278 kg (empty machine) External dimensions .
  • Page 9 ** For specific data regarding delivered machines, please see machine rating plate NOTE The Granule Flexi® is supplied with a 2 metres long electric cable to be connected to an approved supply disconnecting device on the wall. The supply disconnecting device is not included in the delivery.
  • Page 10 1.3 Technical data 1 General Description and Safety...

  • Page 11: Operating

    Operating Start up Fill the machine with the right amount of PowerGranules from the Granule Collector. Close the drain valve (see Figure 1 Close the drain valve). Switch on the main electrical switch. Figure 1: Close the drain valve Filling with water Close the doors Press the Confirm (1) button in order to fill the wash tank.
  • Page 12 2 Operating attained in the wash tank after filling, the following message is displayed: 50°C 60°C Heating the wash tank, 65 C Ready to use when the correct temperature has been attained in the wash tank. A preselected programme is now displayed;...
  • Page 13 2 Operating Removing the insert The inserts can be removed. To remove the insert: 1. Draw the insert out as far as it will go 2. Tilt the insert by lifting it straight up. Pull out. Figure 4 Figure 5 Figure 4: Figure 5: GD 672 Insert for containers (13465)
  • Page 14 2 Operating Figure 7 GD 672 GN 1/1, 1/4, 1/6 and 1/9 loaded. Figure 7: GD 672 GD 673 Flexible Insert (13820) Any dishware, with the inside facing downwards, can be placed in this fitting and the fastening frame is then lowered over. The rubber bands ensure that items do not move during washing.
  • Page 15 2 Operating GD 674 Insert for lids and trays (6001147) 12 lids, trays or similar items with a maximum depth of 20 mm are washed with this insert. NOTE Because of how the lids and trays are loaded in this fitting it is only suitable for lightly soiled dishware.
  • Page 16 2 Operating Figure 13 GD 675 Insert loaded with GN 1/4 and pot Figure 13: GD 675 Figure 14 GD 675 Insert loaded with large pot. Large pots as deep as 700 mm can be washed together with the GD 654 (6000370) short spray pipe.
  • Page 17 2 Operating Control Panel Confirm button is used to answer “yes” to a question shown in the display window The Stop button is used to reset potential alarms. It is also used to enter sleep mode. After 30 seconds the display light goes out and the machine goes into sleep mode.
  • Page 18 2 Operating 2 min, 30 sec (with Granules), 2 min, 30 sec (without Granules) Short 4 min, 40 sec (with Granules), 3 min, 40 sec (without Granules) + 1 minute with steam reduction Normal 6 min, 40 sec (with Granules), 5 min, 40 sec (without Granules) + 1 minute with steam reduction 65°C...
  • Page 19 Figure 16: Make sure no Granules are stuck. PowerGranules • Specially designed to work with Granule pot and pan washing machines from GRANULDISK. • Ensure the best wash result as well as the longest working life both for themselves and the machine.
  • Page 20 2 Operating Language selection To change the language settings: Press the STOP button, release it and wait for 3 seconds. Press the (4) “short programme” button, five times. The display shows the following; Press the Confirm button for “select”. Language English Select Back...

  • Page 21: Daily Cleaning

    Daily cleaning Collecting and cleaning PowerGranules Use the Granule Collector Place the Granule Collector in the insert (Figure 17 Granule collector in machine). Close the doors and press STOP. Wait for 3 seconds. Then press the buttons for Short programme (4) and Granules (6) simultaneously until the display shows “Granule collect program”.

  • Page 22: Cleaning Inside The Machine

    3.2 Cleaning inside the machine 3 Daily cleaning Top-up with Granules when needed. Wash result will suffer if the Granule level is too low. When the doors are opened the machine will return to STOP mode. Take the filled Granule collector out from the machine and rinse the Granules thoroughly.
  • Page 23 3 Daily cleaning 3.2 Cleaning inside the machine spraypipe. Any pieces stuck will then fall down the spraypipe and out at the end. Figure 19 Removing spray arm Figure 20 Cleaning wash nozzles. Lift out the two tank grids. Clean and flush both grids with water.

  • Page 24: Replacement Of Cleaned Items

    3.4 Over night and at longer stoppages 3 Daily cleaning Replacement of cleaned items Replace all items • Cover – overflow sieve • Cover – Granule valve • Tank grids • Spray pipes Make sure the handle on the Granule valve cover is pressed in.

  • Page 25: Gd Memo

    3 Daily cleaning 3.5 GD Memo™ • After a long stoppage; check operation of the machine according to service manual, possibly with the assistance of a service engineer. GD Memo™ GD Memo is an integrated function which informs the user of the machine’s most important maintenance requirements.
  • Page 26 2” depending on which service is required. Phone number for Service company or GRANULDISK is shown below the service message. The reminder can be reset by an authorised service technician, once the service is performed. OK is shown in the display during 2 seconds after the reset.

  • Page 27: Haccp Hygiene And Operation Documentation

    HACCP Hygiene and Operation Documentation GRANULDISK Documentation Tool, GDTdirect™, is an integrated function for the documentation of the warewashing machine’s operating parameters and critical hygiene control points, HACCP. • Operating data for the last 99 wash programmes run is viewed directly in the control panel window.
  • Page 28 4 HACCP Hygiene and Operation Documentation 090121 15:19 SG Error 103 To view information on programme run previously, scroll backwards and forwards in the list using button “eco programme” (3) or button “normal programme” (5). To end scrolling and leave the list, press Confirm button (1). Press the STOP button (2) to return to operating mode.

  • Page 29: Troubleshooting And Alarms

    Troubleshooting and alarms The meaning of the error codes can be read out from the table below. • Error codes 100, 109, 116, 118, 132 are also displayed with an Error message text shown in the Meaning column. • When an error code is displayed, the program is always interrupted. •...
  • Page 30 5 Troubleshooting and alarms Error Meaning Cause Remedy code Door switch Someone has attempted Close the door and reset the to open the doors during alarm by pressing the STOP operation. button. Temperature The temperature sensor in Contact a service engineer! sensor in the wash tank or rinse tank is broken - probably the rinse...
  • Page 31 5 Troubleshooting and alarms Error Meaning Cause Remedy code Drain valve not The drain valve has opened Close the drain valve and closed during an active process in reset the alarm by pressing the machine. the STOP button. Motor circuit The motor is overloaded.
  • Page 32 5 Troubleshooting and alarms...

  • Page 33: Notes

    Notes Rev. 2011-04...
  • Page 34 Granule Flexi ® 5 sec. Operation / Opération / Start und Betrieb / Funzionamento xxx? 2:35 E N D GRANULDISK Jägershillgatan 15 SE-213 75 MALMÖ Sweden Tel: +4640 671 50 60 Fax: +4640 21 07 21 info@granuldisk.com w w w . g r a n u l d i s k . c o m...
