Granule Gastro®
User manual
Art.no EN16235201104
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. +46 40 671 50 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Granule Gastro and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GRANULDISK Granule Gastro

Summary of Contents for GRANULDISK Granule Gastro

  • Page 1 Granule Gastro® User manual Art.no EN16235201104 GRANULDISK AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors. www.granuldisk.com Tel. +46 40 671 50 60...

  • Page 3: Table Of Contents

    Contents Declaration of Conformity General Description and Safety 1.1 To the user 1.2 Safety regulations 1.3 Technical data Operating Daily cleaning 3.1 Collecting and cleaning PowerGran- ules 3.2 Cleaning inside the tank 3.3 Replacement of cleaned items 3.4 Over night and at longer stoppages 3.5 GD Memo™...

  • Page 5: Declaration Of Conformity

    SE-213 75 MALMÖ, Sweden declares that the following machinery: The GRANULDISK system Granule Gastro®. Granule Gastro® is a Granule potwashing machine – a potwashing machine for commercial kitchens that is designed for washing wares like pots and pans. Basic conception a.
  • Page 6 Declaration of Conformity...

  • Page 7: General Description And Safety

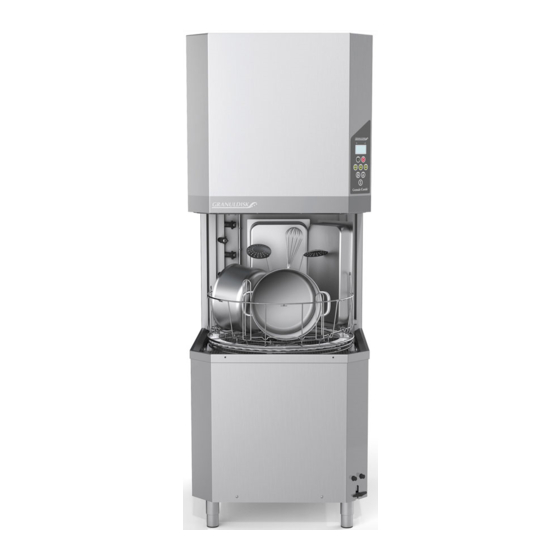

    Granule Gastro® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing pots and pans. This manual is your guide for the correct installation and use of the Granule Gastro® pot washing machine.

  • Page 8: Technical Data

    1.3 Technical data 1 General Description and Safety Technical data Weight ......413 kg (filled machine), 320 kg (empty machine) External dimensions .
  • Page 9 ** For specific data regarding delivered machines, please see machine rating plate NOTE The Granule Gastro® is supplied with a 2 metres long electric cable to be connected to an approved supply disconnecting device on the wall. The supply disconnecting device is not included in the delivery.
  • Page 10 1.3 Technical data 1 General Description and Safety...

  • Page 11: Operating

    Operating Start up Empty the Granule Collector with PowerGranules into the left part of the wash tank. Basket wheel and tank grid and need to be taken out (Figure 1 Granule filling). Figure 1: Granule filling Place the two tank grids in position (Figure 2 Tank grids).
  • Page 12 2 Operating Put the basket wheel in place (Figure 3 Basket wheel). Figure 3: Basket wheel Close the drain valve on the right hand side of the machine (). Switch on the main electrical switch. NOTE Never place items on top of the hood.
  • Page 13 2 Operating Filling with water Press the Confirm (1) button in order to fill the wash tank. Fill wash tank? If the hood is in the raised position, it will close automatically before starting the filling. The machine will now fill with water and heat up to the correct temperature.
  • Page 14 2 Operating Preparing utensils Scrape or rinse off all loose food remains before loading the utensils (see Figure 6 Scrape off loose food). • No soaking or scrubbing is needed. • No usage of hand-soap or similar (to avoid foaming which could lead to extended problem) Figure 6: Scrape off loose food Loading utensils...
  • Page 15 2 Operating GD 102 Standard wash basket (19999) it is possible to load 6 x GN 1/1 or 1/2 containers by sliding them into the basket. Either 6 x 65 mm deep containers or 3 x 65 mm deep containers plus 3 x 200 mm containers.
  • Page 16 2 Operating GD 750 Saucepanholder (13756) Possible to load pots, saucepans, bowls and smaller preperation containers. Containers from approx 60 mm to 170 mm deep can be washed. Possible to load ladles, whisks, spatulas and similar in the net basket in the middle of the holder.
  • Page 17 2 Operating GD 152 Multiflex holder (20554) Accessory for loading 3-5 saucepans, small bowls, sieves etc. Figure 15 GD 152. Figure 15: GD 152 Control Panel Confirm button is used to answer “yes” to a question shown in the display window The Stop button is used to reset potential alarms.
  • Page 18 2 Operating Start and Operation Press the Confirm button (1) • If temperature is lower than 65 °C in wash tank at the time of the first start, once the wash tank has been filled, the machine will continue heating. •...
  • Page 19 2 Operating 65°C 85°C Eco program with Granules Wash time: 2:00 NOTE The hood can not be opened until the wash programme is complete. Close the hood by pressing button (8) if you are not running another wash programme straight away. It saves energy and reduces evaporation from the wash tank. Stopping the machine while in operation •...
  • Page 20 Figure 17: Make sure no Granules are stuck. PowerGranules • Specially designed to work with Granule pot and pan washing machines from GRANULDISK. • Ensure the best wash result as well as the longest working life both for themselves and the machine.
  • Page 21 2 Operating Language selection To change the language settings: Press the STOP button, release it and wait for 3 seconds. Press the (4) “short programme” button, five times. The display shows the following; Press the Confirm button for “select”. Language English Select Back...
  • Page 22 2 Operating...

  • Page 23: Daily Cleaning

    Daily cleaning Collecting and cleaning PowerGranules Use the Granule Collector Place the Granule collector on the tank grid (Figure 18 Granule collector machine). It is important to place the collector as closely to the hood as possible. Close the hood and start the special Granule collecting programme, as described below.
  • Page 24 3.1 Collecting and cleaning PowerGranules 3 Daily cleaning • From 0 programme: Change Granules now (after every collection until message is reset) Top-up with Granules when needed. Wash result will suffer if the Granule level is too low. When the hood is lifted, the machine will return to STOP mode.

  • Page 25: Cleaning Inside The Tank

    3 Daily cleaning 3.2 Cleaning inside the tank Cleaning inside the tank Press STOP button (2) and open drain valve to empty wash tank. See Figure 20 Open drain valve. Secure the hood in it’s upper position (Figure 25 Hood lock).

  • Page 26: Replacement Of Cleaned Items

    3.4 Over night and at longer stoppages 3 Daily cleaning Clean and flush bottom sieve (A) with water. To make cleaning easier, bottom sieve can be unscrewed (Figure 23 Bottom sieve and level sensor). Wipe off level sensor (B) with a clean cloth.

  • Page 27: Gd Memo

    3 Daily cleaning 3.5 GD Memo™ • PowerGranules should be stored in Granule collector standing in the machine. • After a long stoppage; check operation of the machine according to service manual, possibly with the assistance of a service engineer. Figure 25: Hood lock GD Memo™...
  • Page 28 2” depending on which service is required. Phone number for Service company or GRANULDISK is shown below the service message. The reminder can be reset by an authorised service technician, once the service is performed. OK is shown in the display during 2 seconds after the reset.

  • Page 29: Haccp Hygiene And Operation Documentation

    HACCP Hygiene and Operation Documentation GRANULDISK Documentation Tool, GDTdirect™, is an integrated function for the documentation of the warewashing machine’s operating parameters and critical hygiene control points, HACCP. • Operating data for the last 99 wash programmes run is viewed directly in the control panel window.
  • Page 30 4 HACCP Hygiene and Operation Documentation 090121 15:19 SG Error 103 To view information on programme run previously, scroll backwards and forwards in the list using button “eco programme” (3) or button “normal programme” (5). To end scrolling and leave the list, press Confirm button (1). Press the STOP button (2) to return to operating mode.

  • Page 31: Troubleshooting And Alarms

    Troubleshooting and alarms The meaning of the error codes can be read out from the table below. • Error codes 116, 118, 120, 124, 132 are also displayed with an Error message text shown in the Meaning column. • When an error code is displayed, the program is always interrupted. •...
  • Page 32 5 Troubleshooting and alarms Error Meaning Cause Remedy code Temperature The temperature sensor in Contact a service engineer! sensor in wash the wash tank or rinse tank tank or rinse tank is broken - probably the rinse not functioning - tank sensor.
  • Page 33 5 Troubleshooting and alarms Error Meaning Cause Remedy code Drain valve not The drain valve has opened Close the drain valve and closed during an active process in reset the alarm by pressing the machine. the STOP button. Motor circuit The motor is overloaded.
  • Page 34 5 Troubleshooting and alarms Error Meaning Cause Remedy code Clean level sensor The level sensor in the wash Empty the wash tank and tank may be dirty, or water in clean the level sensor in the the wash tank has not been wash tank.

  • Page 35: Notes

    Notes Rev. 2011-04...
  • Page 36 Granule Gastro ® 3 sec. Operation / Opération / Start und Betrieb / Funzionamento xxx? GRANULDISK Jägershillgatan 15 SE-213 75 MALMÖ Sweden Tel: +4640 671 50 60 Fax: +4640 21 07 21 info@granuldisk.com w w w . g r a n u l d i s k . c o m...
