GRANULE
COMBI®
USER MANUAL.
Art.no EN16208201502
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. +46 40 671 50 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRANULE COMBI and is the answer not in the manual?

Questions and answers

Related Manuals for GRANULDISK GRANULE COMBI

Summary of Contents for GRANULDISK GRANULE COMBI

  • Page 1 GRANULE COMBI® USER MANUAL. Art.no EN16208201502 GRANULDISK AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors. www.granuldisk.com Tel. +46 40 671 50 60...

  • Page 3: Table Of Contents

    Collecting and cleaning PowerGranules Cleaning inside the machine Replacement of cleaned items Over night and at longer stoppages GD Memo™ HACCP Hygiene and Operation Documentation Troubleshooting and alarms Course of actions when finding shattered glass in a Granule Combi Notes...

  • Page 5: Ce Declaration Of Conformity

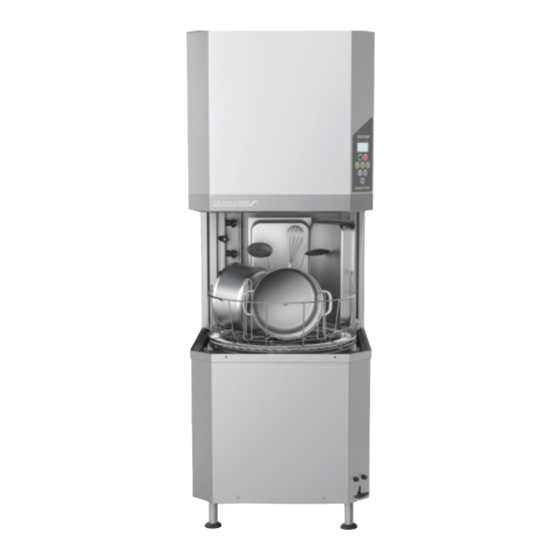

    SE-213 75 MALMÖ, Sweden declares that the following machinery: The GRANULDISK system Granule Combi®. Granule Combi® is a unique Combi dishwasher which combines the award winning Granule Optimised Washing Technology with the traditional dishwashing technique for plates, cutlery and most of the crockery.
  • Page 6 CE Declaration of Conformity...

  • Page 7: General Description And Safety

    This manual is your guide for the correct use of the Granule Combi® pot washing machine. GRANULDISK recommends that you study the manual thoroughly to be sure that the machine is installed and used correctly and safely.

  • Page 8: Technical Data

    1.3 Technical data 1 General Description and Safety Technical data Weight ......... 416 kg (filled machine), 323 kg (empty machine) External dimensions ....2340 (± 25) x 850 x 1002 mm (H x W x D) for more details see Installation drawing Tank volume ......
  • Page 9 ** For specific data regarding delivered machines, please see machine rating plate NOTE The Granule Combi® is supplied with a 2 metres long electric cable to be connected to an approved supply disconnecting device on the wall. The supply disconnecting device is not included in the delivery.
  • Page 10 1.3 Technical data 1 General Description and Safety...

  • Page 11: Operating

    Operating Start up Empty the Granule Collector with PowerGranules into the left part of the wash tank. Basket wheel and tank grid need to be taken out (Figure 1 Granule filling). Figure 1: Granule filling Place the tank grid in position (Figure 2 Tank grid).
  • Page 12 2 Operating Put the basket wheel in place (Figure 3 Basket wheel). Figure 3: Basket wheel Close the drain valve on the right hand side of the machine (Figure 4 Drain valve). Switch on the main electrical switch. NOTE Never place items on top of the hood.
  • Page 13 2 Operating Filling with water Press the Confirm (1) button in order to fill the wash tank. Fill wash tank? If the hood is in the raised position, it will close automatically before starting the filling. The machine will now fill with water and heat up to the correct temperature.
  • Page 14 2 Operating Preparing utensils Empty and scrape off all food remains before loading the utensils (see Figure 6 Scrape off food). • No soaking or scrubbing is needed. • No usage of hand-soap or similar (to avoid foaming which could lead to extended problem) Pots and pans containing moist protein-rich food remains may need a splash of water...
  • Page 15 2 Operating Standard wash basket (19999) It is possible to load 6 x GN 1/1 or 1/2 containers by sliding them into the basket. Either 6 x 65 mm deep containers or 3 x 65 mm deep containers plus 3 x 200 mm containers. See Figure 7 Wash basket.
  • Page 16 2 Operating Possible to load grids, chopping boards, baking trays, flat trays and GN 1/1 lids. See Figure 10 Inser loaded with various items. Figure 10: Inser loaded with various items Multiflex holder for saucepans, small bowls, sieves (20554) To be placed inside standard wash basket. Capacity: up to 3-4 saucepans or up to 4-5 small bowls, sieves etc.
  • Page 17 2 Operating Flexible pot holder (13789) Rubber strap with two hooks. Rubber strap to be placed around pot and hooked on to the basket. Be careful when fastening and releasing the rubber bands as the hooks may cause harm. Figure 13 Flexible pot holder.
  • Page 18 2 Operating Folding table (19570) Can be installed on front or on either side of the machine. Figure 16 Folding table. Figure 16: Folding table Loading of crockery and cutlery Place the items to be washed in a wash basket. Rinse off any remaining bits of food.
  • Page 19 2 Operating Wash basket for plates and crockery (19882) Wash basket for plates and crockery, 500 x 500 mm Capacity: 18 dinner plates or 12 soup plates. Figure 18 Wash basket for plates. Figure 18: Wash basket for plates Control Panel Confirm button is used to answer “yes”...
  • Page 20 2 Operating • If temperature is lower than 65 °C in wash tank at the time of the first start, once the wash tank has been filled, the machine will continue heating. • Washing at a too low temperature increases the risk of foaming and the items not being hygienically clean.
  • Page 21 2 Operating 65°C 85°C 2:07 Once the wash programme is complete, the hood goes up, and the machine goes into stand-by mode and shows the latest programme used, e.g. 65°C 85°C Eco program with Granules Wash time: 2:20 NOTE The hood can not be opened until the wash programme is complete. Close the hood by pressing button (8) if you are not running another wash programme straight away.
  • Page 22 Figure 20: Make sure no Granules are stuck. PowerGranules • Specially designed to work with Granule pot and pan washing machines from GRANULDISK. • Ensure the best wash result as well as the longest working life both for themselves and the machine.
  • Page 23 2 Operating • Worn out Granules should be handled as non-hazardous industrial waste. Appropriate for sorting as combustible waste. Used Granules should be sealed in a plastic bucket with a lid or in a plastic bag before being disposed of. Language selection To change the language settings: Press the STOP button, release it and wait...
  • Page 24 2 Operating...

  • Page 25: Daily Cleaning

    Daily cleaning Collecting and cleaning PowerGranules Use the Granule Collector Place the Granule collector on the tank grid, leaning onto the white roller at the front (Figure 21 Granule collector in machine, Figure 22 Place on the white roller). It is important to place the collector as closely to the hood as possible.
  • Page 26 3.1 Collecting and cleaning PowerGranules 3 Daily cleaning • From 0 programme: Change Granules now (after every collection until message is reset) Top-up with Granules when needed. Wash result will suffer if the Granule level is too low. When the hood is lifted, the machine will return to STOP mode.

  • Page 27: Cleaning Inside The Machine

    3 Daily cleaning 3.2 Cleaning inside the machine Cleaning inside the machine Press STOP button (2) and open drain valve to empty wash tank. See Figure 24 Drain valve. Secure the hood in it’s upper position (Figure 30 Hood lock). Switch off at the main electrical switch.
  • Page 28 3.2 Cleaning inside the machine 3 Daily cleaning Clean and flush bottom sieve (A) with water. To make cleaning easier, bottom sieve can be unscrewed (Figure 27 Clean bottom sieve and level sensor). Wipe off level sensor (B) (Figure 27 Clean bottom sieve and level sensor).

  • Page 29: Replacement Of Cleaned Items

    3 Daily cleaning 3.5 GD Memo™ Replacement of cleaned items Replace all items • Put back bottom sieve if it has been unscrewed. • Put back tank grid. • Put back basket wheel. Over night and at longer stoppages • Ensure that wash tank is completely empty after cleaning.
  • Page 30 Either “Time for service 1” or “Time for service 2” depending on which service is required. Phone number for Service company or GRANULDISK is shown below the service message. The reminder can be reset by an authorised service technician, once the service is performed.
  • Page 31 3 Daily cleaning 3.5 GD Memo™ • Once the water has been changed and the message reset, the next message can be shown • Second priority “Change Granules now”, “Time for service” are alternately displayed, if issued at the same time. •...
  • Page 32 3.5 GD Memo™ 3 Daily cleaning...

  • Page 33: Haccp Hygiene And Operation Documentation

    HACCP Hygiene and Operation Documentation GRANULDISK Documentation Tool, GDTdirect™, is an integrated function for the documentation of the warewashing machine’s operating parameters and critical hygiene control points, HACCP. • Operating data for the last 200 wash programmes run is viewed directly in the control panel window.
  • Page 34 4 HACCP Hygiene and Operation Documentation NOTE If the wash programme has been cancelled due to an operating error or technical error, the temperature indication is not included and “error” plus an error code appears in its place. 090121 15:19 SG Error 103 To view information on programme run previously, scroll backwards and forwards in the list using button “eco programme”...

  • Page 35: Troubleshooting And Alarms

    Motor protector, The motor is overloaded. Contact a service engineer! potwash pump tripped. (Granule Combi only) Motor circuit breaker The motor is overloaded. Contact a service engineer! for Combi wash pump tripped. Motor circuit breaker...
  • Page 36 5 Troubleshooting and alarms Error Meaning Cause Remedy code Temperature not Temperature in rinse tank not Reset the alarm by pressing reached in rinse reached, ongoing process the STOP button. If the alarm tank interrupted. recurs, contact a service engineer! Temp sensor rinse The temperature sensor in the Contact a service engineer!
  • Page 37 5 Troubleshooting and alarms Error Meaning Cause Remedy code Basket drive device Something is preventing the Check that nothing is stuck blocked. rotation of the basket. between the basket and the basket wheel . Reset the alarm by pressing the STOP button. Motor protector, The motor is overloaded.
  • Page 38 5 Troubleshooting and alarms Error Meaning Cause Remedy code Basket sensor Basket sensor that detects type Remove wash basket and run indicating error basket is indicating error. a programme. Place empty pot washing basket (round) in the machine and start a programme.

  • Page 39: Course Of Actions When Finding Shattered Glass In A Granule Combi

    5 Troubleshooting and alarms 5.1 Course of actions when finding shattered glass in a Granule Combi Course of actions when finding shattered glass in a Granule Combi Equipment: • Thick protective gloves • Vacuum cleaner for water Please follow these steps in this particular order: •...
  • Page 40 5.1 Course of actions when finding shattered glass 5 Troubleshooting and alarms in a Granule Combi...

  • Page 41: Notes

    Notes Rev. 2015-02...
  • Page 42 REINIGUNG / PULIZIA GIORNALIERA COMBI 3 sec. ® OPERATION / OPÉRATION / START UND BETRIEB / FUNZIONAMENTO xxx? GRANULDISK, Jägershillgatan 15, SE-213 75 Malmö, SWEDEN Tel: +4640 671 50 60 | Fax: +4640 21 07 21 | info@granuldisk.com | www.granuldisk.com...
