GRANULE
MAXI®
USER MANUAL.
Art.no EN16295201502
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. +46 40 671 50 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GRANULE MAXI and is the answer not in the manual?

Questions and answers

Related Manuals for GRANULDISK GRANULE MAXI

Summary of Contents for GRANULDISK GRANULE MAXI

  • Page 1 GRANULE MAXI® USER MANUAL. Art.no EN16295201502 GRANULDISK AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors. www.granuldisk.com Tel. +46 40 671 50 60...

  • Page 3: Table Of Contents

    Contents CE Declaration of Conformity General Description and Safety To the user Safety regulations Technical data Operating Daily cleaning Collecting and cleaning PowerGranules Cleaning inside the machine Replacement of cleaned items Over night and at longer stoppages GD Memo™ HACCP Hygiene and Operation Documentation Troubleshooting and alarms Notes...

  • Page 5: Ce Declaration Of Conformity

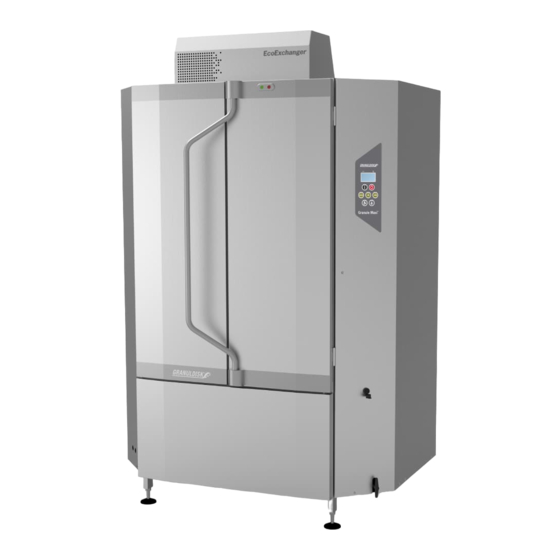

    The GRANULDISK system Granule Maxi®. The Granule Maxi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing such wares as pots and pans. Basic conception a.
  • Page 6 CE Declaration of Conformity...

  • Page 7: General Description And Safety

    General Description and Safety To the user Granule Maxi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing pots and pans. This manual is your guide for the correct use of the Granule Maxi® pot washing machine.

  • Page 8: Technical Data

    1.3 Technical data 1 General Description and Safety Technical data Weight ......... 666 kg (filled machine), 485 kg (empty machine) External dimensions ....2029 (± 25 mm) x 1452 x 1089 mm (H x W x D) Tank volume ......165 litres Granule amount ......
  • Page 9 ** For specific data regarding delivered machines, please see machine rating plate NOTE The Granule Maxi® is supplied with a 2 metres long electric cable to be connected to an approved supply disconnecting device on the wall. The supply disconnecting device is not included in the delivery.
  • Page 10 1.3 Technical data 1 General Description and Safety...

  • Page 11: Operating

    Operating Start up Fill the machine with the right amount of PowerGranules from the Granule collectors. Close the drain valve (see Figure 1 Close the drain valve). Switch on the main electrical switch. Figure 1: Close the drain valve Filling with water Close the doors.
  • Page 12 2 Operating 50°C 60°C Heating the wash tank, 65 C Ready to use when the correct temperature has been attained in the wash tank. A preselected programme is now displayed; 65°C 85°C Eco program with Granules wash time: 2:30 NOTE Indication lamps RED LAMP;...
  • Page 13 Granule Maxi, Compact Version: The cassette is an integral part of the machine and can be slid halfway out of the machine. Granule Maxi, Flow system: roll the trolley up to the loaded cassette. Undo the catch and raise the handle (Figure 6 Hooking the cassette).
  • Page 14 2 Operating Multicassette for Granule Maxi Flow/FreeFlow (14469) For 8 GN 1/1 containers or 4 GN 2/1 or the equivalent in other wash ware. Figure 8 Multicassette. Figure 8: Multicassette Pot- and saucepan holder (10972) Capacity: 3-5 pots/saucepans with handles or ears to be hung on to the hooks.
  • Page 15 2 Operating Dividers for GN containers, sizes GN 1/9-2/3 (19313) To allow GN 1/2, 1/3, 1/6, 1/9 and 2/3. The Divider makes it possible to load one of the following combinations: • 4 x 1/2 GN containers or • 8 GN 1/4 or •...
  • Page 16 2 Operating Netbasket with lid (21477) For ladles, whisks up to 500 mm length. Place at the bottom of the cassette, following the runners. Figure 14 Netbasket. Figure 14: Netbasket Insert for baking trays (22017) Capacity: 8 x 600x400 mm baking trays, max 20 mm edge.
  • Page 17 2 Operating Control Panel Confirm button is used to answer “yes” to a question shown in the display window The Stop button is used to reset potential alarms. It is also used to enter sleep mode. After 30 seconds the display light goes out and the machine goes into sleep mode.
  • Page 18 2 Operating Select and start required wash time (3), (4) or (5) 2 min, 30 sec (with Granules), 2 min, 30 sec (without Granules) Short 4 min, 40 sec (with Granules), 3 min, 40 sec (without Granules) + 1 minute with steam reduction Normal 6 min, 40 sec (with Granules), 5 min, 40 sec (without Granules)
  • Page 19 2 Operating 65°C 85°C Eco program with Granules Wash time: 2:30 WARNING Do not open the door during a wash cycle! Risk of burn. Keep the doors closed if you are not running another wash programme straight away. It saves energy and reduces evaporation from the wash tank.
  • Page 20 Figure 19: Make sure no Granules are stuck. PowerGranules • Specially designed to work with Granule pot and pan washing machines from GRANULDISK. • Ensure the best wash result as well as the longest working life both for themselves and the machine.
  • Page 21 2 Operating • Worn out Granules should be handled as non-hazardous industrial waste. Appropriate for sorting as combustible waste. Used Granules should be sealed in a plastic bucket with a lid or in a plastic bag before being disposed of. Language selection To change the language settings: Press the STOP button, release it and wait...
  • Page 22 2 Operating...

  • Page 23: Daily Cleaning

    Daily cleaning Collecting and cleaning PowerGranules Use the Granule Collector (2 pcs) Place the Granule Collector in the cassette (Figure 20 Granule collectors in machine). Close the doors and press STOP. Wait for 3 seconds. Then press the buttons for Short programme (4) and Granules (6) simultaneously until the display shows “Granule collect program”.

  • Page 24: Cleaning Inside The Machine

    3.2 Cleaning inside the machine 3 Daily cleaning Top-up with Granules when needed. Wash result will suffer if the Granule level is too low. When the doors are opened the machine will return to STOP mode. Take the filled Granule collector out from the machine and rinse the Granules thoroughly.
  • Page 25 3 Daily cleaning 3.2 Cleaning inside the machine • The spray pipe lock is folded up, then you push the spray pipe up and pull it to one side. • The spray pipe is pulled down gently and removed from the machine. •...

  • Page 26: Replacement Of Cleaned Items

    3.4 Over night and at longer stoppages 3 Daily cleaning The drip groove (D) is to be washed clean and dried in order to avoid blockage in the drain channels. See Figure 25 Granule strainer and drip groove. Wipe door seals. Wipe inside of the doors with a damp cloth.

  • Page 27: Gd Memo

    3 Daily cleaning 3.5 GD Memo™ GD Memo™ GD Memo is an integrated function which informs the user of the machine’s most important maintenance requirements. With GD Memo, it is possible to ensure optimum wash results, avoid break downs during peak hours and maintain the lowest possible operating costs. This function is integrated in the control panel and keeps the user informed as follows: 1.
  • Page 28 Either “Time for service 1” or “Time for service 2” depending on which service is required. Phone number for Service company or GRANULDISK is shown below the service message. The reminder can be reset by an authorised service technician, once the service is performed.

  • Page 29: Haccp Hygiene And Operation Documentation

    HACCP Hygiene and Operation Documentation GRANULDISK Documentation Tool, GDTdirect™, is an integrated function for the documentation of the warewashing machine’s operating parameters and critical hygiene control points, HACCP. • Operating data for the last 200 wash programmes run is viewed directly in the control panel window.
  • Page 30 4 HACCP Hygiene and Operation Documentation 090121 15:19 SG Error 103 To view information on programme run previously, scroll backwards and forwards in the list using button “eco programme” (3) or button “normal programme” (5). To end scrolling and leave the list, press Confirm button (1). Press the STOP button (2) to return to operating mode.

  • Page 31: Troubleshooting And Alarms

    Troubleshooting and alarms The meaning of the error codes can be read out from the table below. • Error codes 100, 109, 116, 118, 132 are also displayed with an Error message text shown in the Meaning column. • When an error code is displayed, the program is always interrupted. •...
  • Page 32 5 Troubleshooting and alarms Error Meaning Cause Remedy code Temperature not Temperature in rinse tank not Clean level sensor. Reset reached in rinse reached, ongoing process overheat protection. If error tank interrupted. code recurs in the next few hours, call a service engineer. Door switch The the doors has accidently Close the door and reset the...
  • Page 33 5 Troubleshooting and alarms Error Meaning Cause Remedy code Drain valve not The drain valve has opened Close the drain valve and closed during an active process in the reset the alarm by pressing the machine. STOP button. IO board not tested IO circuit board not tested at Contact a service engineer! at manufacture.
  • Page 34 5 Troubleshooting and alarms...

  • Page 35: Notes

    Notes Rev. 2015-02...
  • Page 36 REINIGUNG / PULIZIA GIORNALIERA MAXI 3 sec. ® OPERATION / OPÉRATION / START UND BETRIEB / FUNZIONAMENTO xxx? GRANULDISK, Jägershillgatan 15, SE-213 75 Malmö, SWEDEN Tel: +4640 671 50 60 | Fax: +4640 21 07 21 | info@granuldisk.com | www.granuldisk.com...
