Granule Maxi®
User manual
Art.no EN162950201104
GRANULDISK AB retains the right to make technical changes to the products.
No responsibility is taken for any printing errors.
www.granuldisk.com Tel. +46 40 671 50 60

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Granule Maxi and is the answer not in the manual?

Questions and answers

Related Manuals for GRANULDISK Granule Maxi

Summary of Contents for GRANULDISK Granule Maxi

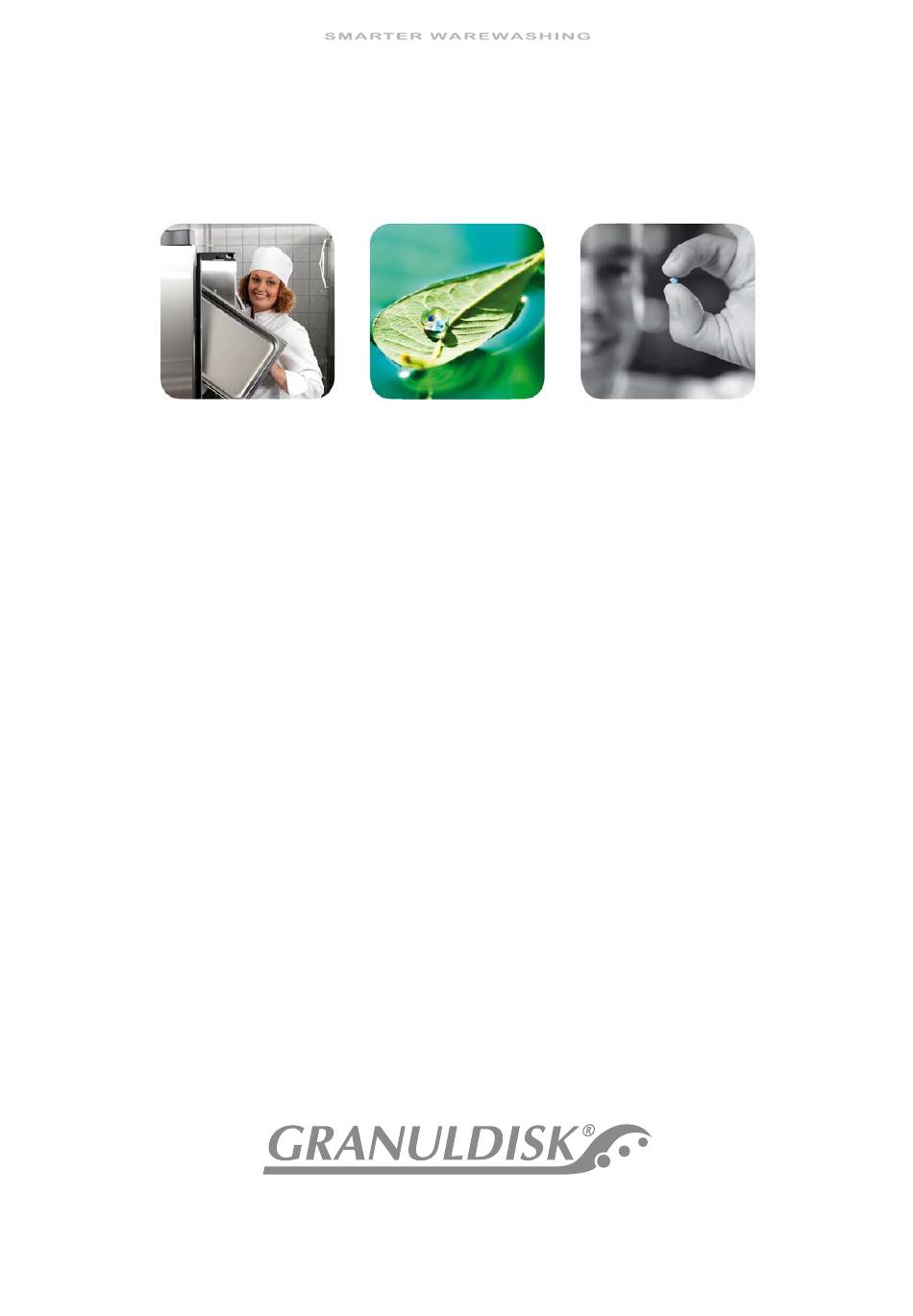

  • Page 1 Granule Maxi® User manual Art.no EN162950201104 GRANULDISK AB retains the right to make technical changes to the products. No responsibility is taken for any printing errors. www.granuldisk.com Tel. +46 40 671 50 60...

  • Page 3: Table Of Contents

    Contents Declaration of Conformity General Description and Safety 1.1 To the user 1.2 Safety regulations 1.3 Technical data Operating Daily cleaning 3.1 Collecting and cleaning PowerGran- ules 3.2 Cleaning inside the machine 3.3 Replacement of cleaned items 3.4 Over night and at longer stoppages 3.5 GD Memo™...

  • Page 5: Declaration Of Conformity

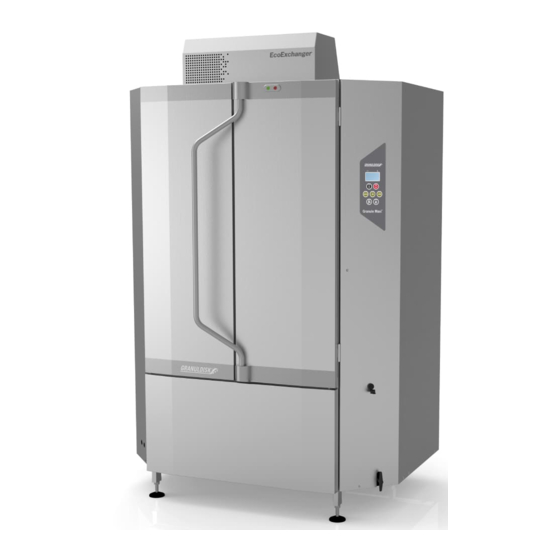

    The GRANULDISK system Granule Maxi®. The Granule Maxi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing such wares as pots and pans. Basic conception a.
  • Page 6 Declaration of Conformity...

  • Page 7: General Description And Safety

    Granule Maxi® is a Granule pot washing machine – a pot washing machine for commercial kitchens that is designed for washing pots and pans. This manual is your guide for the correct installation and use of the Granule Maxi® pot washing machine.

  • Page 8: Technical Data

    1.3 Technical data 1 General Description and Safety Technical data Weight ......674 kg (filled machine) Tank volume .
  • Page 9 ** For specific data regarding delivered machines, please see machine rating plate NOTE The Granule Maxi® is supplied with a 2 metres long electric cable to be connected to an approved supply disconnecting device on the wall. The supply disconnecting device is not included in the delivery.
  • Page 10 1.3 Technical data 1 General Description and Safety...

  • Page 11: Operating

    Operating Start up Fill the machine with the right amount of PowerGranules from the Granule Collector. Close the drain valve (see Figure 1 Close the drain valve). Switch on the main electrical switch. Figure 1: Close the drain valve Filling with water Close the doors Press the Confirm (1) button in order to fill the wash tank.
  • Page 12 2 Operating 50°C 60°C Heating the wash tank, 65 C Ready to use when the correct temperature has been attained in the wash tank. A preselected programme is now displayed; 65°C 85°C Eco program with Granules wash time: 2:30 Preparing utensils Scrape or rinse off all loose food remains before loading the utensils (see Figure 3...
  • Page 13 Granule Maxi, Compact Version: The cassette is an integral part of the machine and can be slid halfway out of the machine. Granule Maxi, Flow system: roll the trolley up to the loaded cassette. Undo the catch and raise the handle (Figure 5 Hooking the cassette).
  • Page 14 2 Operating GD 950 Multipurpose Holder (10972) For ABC pans, pots and saucepans or other equipment that can be hung on hooks. The Gd 950 is fitted in one of the four existing runners on the cassette. Figure 8 Multipurpose holder.
  • Page 15 2 Operating GD 953 Lid holder (10950) Lids, trays and similar equipment with a maximum depth of 20 mm can be washed using this. The lid holder is best fitted in the lower cassette runners. See Figure 11 Lid holder. Figure 11: Lid holder GD 954 Holder for GN containers 1/3, 1/6, 1/9 (10948)
  • Page 16 2 Operating Control Panel Confirm button is used to answer “yes” to a question shown in the display window The Stop button is used to reset potential alarms. It is also used to enter sleep mode. After 30 seconds the display light goes out and the machine goes into sleep mode.
  • Page 17 2 Operating 2 min, 30 sec (with Granules), 2 min, 30 sec (without Granules) Short 4 min, 40 sec (with Granules), 3 min, 40 sec (without Granules) + 1 minute with steam reduction Normal 6 min, 40 sec (with Granules), 5 min, 40 sec (without Granules) + 1 minute with steam reduction 65°C...
  • Page 18 2 Operating Stopping the machine while in operation • Switch to washing with water for about 30 seconds in order to rinse off all Granules. Then press STOP (2) • In an emergency: Just press STOP (2) NOTE Utensils may have remains of detergent and should be washed again before they are taken out of the machine.
  • Page 19 2 Operating PowerGranules • Specially designed to work with Granule pot and pan washing machines from GRANULDISK. • Ensure the best wash result as well as the longest working life both for themselves and the machine. • The plastic material is approved for use in conjunction with food.
  • Page 20 2 Operating Language selection To change the language settings: Press the STOP button, release it and wait for 3 seconds. Press the (4) “short programme” button, five times. The display shows the following; Press the Confirm button for “select”. Language English Select Back...

  • Page 21: Daily Cleaning

    Daily cleaning Collecting and cleaning PowerGranules Use the Granule Collector (2 pcs) Place the Granule Collector in the cassette (Figure 16 Granule collectors in machine). Close the doors and press STOP. Wait for 3 seconds. Then press the buttons for Short programme (4) and Granules (6) simultaneously until the display shows “Granule collect program”.

  • Page 22: Cleaning Inside The Machine

    3.2 Cleaning inside the machine 3 Daily cleaning Top-up with Granules when needed. Wash result will suffer if the Granule level is too low. When the doors are opened the machine will return to STOP mode. Take the filled Granule collector out from the machine and rinse the Granules thoroughly.
  • Page 23 3 Daily cleaning 3.2 Cleaning inside the machine • The spray pipe lock is folded up, then you push the spray pipe up and pull it to one side. • The spray pipe is pulled down gently and removed from the machine. •...

  • Page 24: Replacement Of Cleaned Items

    3.4 Over night and at longer stoppages 3 Daily cleaning Wipe off the level sensor (C) with a clean cloth. See Figure 22 Level sensor. The drip groove (D) is to be washed clean and dried in order to avoid blockage in the drain channels.

  • Page 25: Gd Memo

    3 Daily cleaning 3.5 GD Memo™ • PowerGranules should be stored in Granule collector standing in the machine. • After a long stoppage; check operation of the machine according to service manual, possibly with the assistance of a service engineer. GD Memo™...
  • Page 26 2” depending on which service is required. Phone number for Service company or GRANULDISK is shown below the service message. The reminder can be reset by an authorised service technician, once the service is performed. OK is shown in the display during 2 seconds after the reset.

  • Page 27: Haccp Hygiene And Operation Documentation

    HACCP Hygiene and Operation Documentation GRANULDISK Documentation Tool, GDTdirect™, is an integrated function for the documentation of the warewashing machine’s operating parameters and critical hygiene control points, HACCP. • Operating data for the last 99 wash programmes run is viewed directly in the control panel window.
  • Page 28 4 HACCP Hygiene and Operation Documentation 090121 15:19 SG Error 103 To view information on programme run previously, scroll backwards and forwards in the list using button “eco programme” (3) or button “normal programme” (5). To end scrolling and leave the list, press Confirm button (1). Press the STOP button (2) to return to operating mode.

  • Page 29: Troubleshooting And Alarms

    Troubleshooting and alarms The meaning of the error codes can be read out from the table below. • Error codes 100, 109, 116, 118, 132 are also displayed with an Error message text shown in the Meaning column. • When an error code is displayed, the program is always interrupted. •...
  • Page 30 5 Troubleshooting and alarms Error Meaning Cause Remedy code Temperature not The wash water in the wash Clean level sensor. Reset reached in wash tank does not reach its preset overheat protection. If error tank temperature during the wash code recurs in the next few process.
  • Page 31 5 Troubleshooting and alarms Error Meaning Cause Remedy code Low water level, Foam forming in the machine. Avoid using detergent problem with foam designed for washing up by hand. Change the wash water. Contact the detergent supplier if the problems with foam formation still persist.
  • Page 32 5 Troubleshooting and alarms...

  • Page 33: Notes

    Notes Rev. 2011-04...
  • Page 34 Daily cleaning Nettoyage quotidien/Tägliche Granule Maxi ® Reinigung/Pulizia giornaliera 5 sec. Operation / Opération / Start und Betrieb / Funzionamento xxx? 2:35 E N D GRANULDISK Jägershillgatan 15 SE-213 75 MALMÖ Sweden Tel: +4640 671 50 60 Fax: +4640 21 07 21 info@granuldisk.com...
