Lock / Brake Output
This output is used to power an electrical lock or a motor brake release. The factory default for the lock/
brake release is on output 1. Output 1 is a voltage-free relay contact with common and normally open
contacts. Having it voltage-free allows you to connect either 12VDC/AC, 24VDC/AC or 240VAC to the

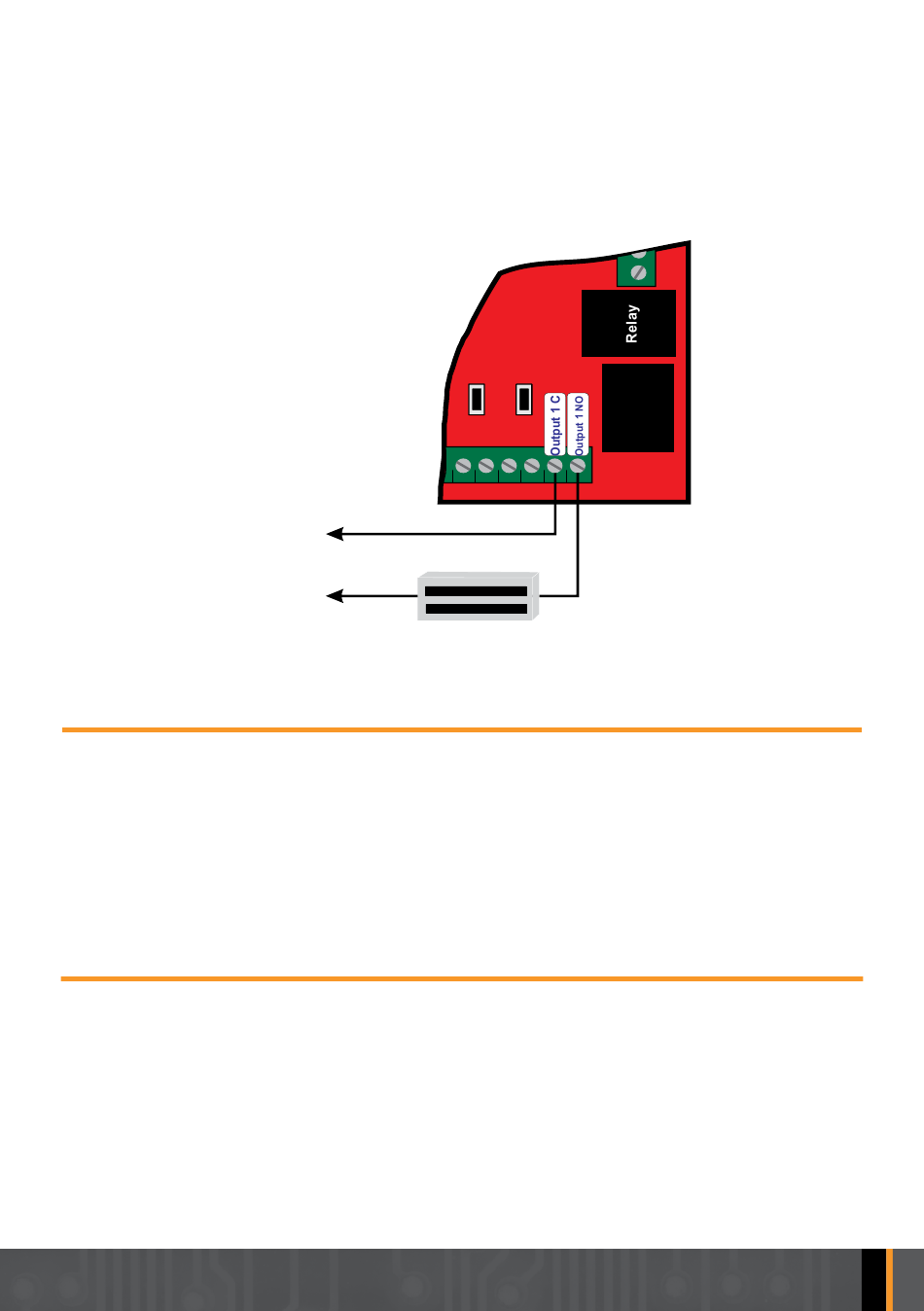

common. The normally open contact drives the lock/brake. See diagram below:

Courtesy Light

This output is used to power a courtesy light. The factory default for the courtesy light is on output 2.
Output 2 is a voltage-free relay contact with common, normally open and normally closed contacts.
Having it voltage-free allows you to connect either 12VDC/AC, 24VDC/AC or 240VAC supply to the
common. The normally open contact drives the light. See diagram on the next page.

Service Call Output

Either output 1 or output 2 can be changed to service call indicator. This will trigger the output when
the software service counter is reached. Used to alert installers or owners when the gate/door is to be
serviced. Use Elsema's GSM-1000 receiver allows installers or owners to get a SMS message when the
service is due.
www.elsema.com
Open
+ if DC
Supply
- if DC
Lock/Brake
Close Stop
12VDC or
24VDC
Relay
