Limit Switches

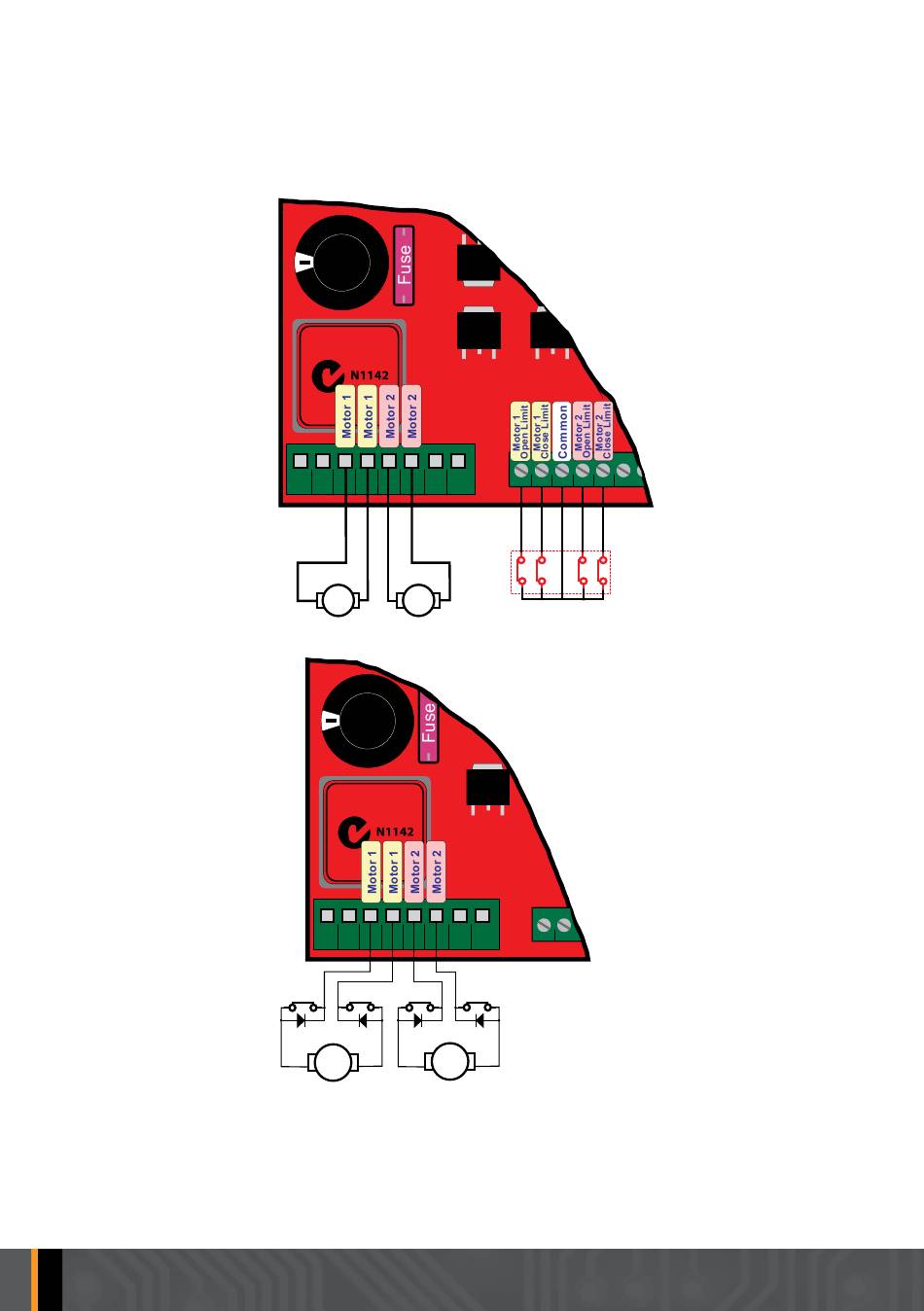

If you are using limit switches make sure they are connected properly. The control card can operate
with either the limit switches connected directly to the cards terminal blocks or in series with the motor.
Check diagrams below:
Controller with limits
in series with motor
By default the limit switch inputs on the control card are normally closed (NC).
This can be changed to normally open (NO) during the setup steps.
10
AC Supply : 24/12 Volts AC
Model : MC
Designed by ELSEMA
IN AUSTRALIA
M M
Motor 1 Motor 2
AC Supply : 24/12 Volts AC
Model : MC
Designed by ELSEMA
IN AUSTRALIA
Close
Open Open
Limit Limit Limit
Diode* Diode* Diode*
M
M
Double Gate & Door Controller
Normally Closed
User can change
Close
Limit
* 6 Amps, 50V or better diode
Elsema : Diode FR604
Diode*
with Eclipse
Controller with
limits connected
Operating System (EOS)
®
