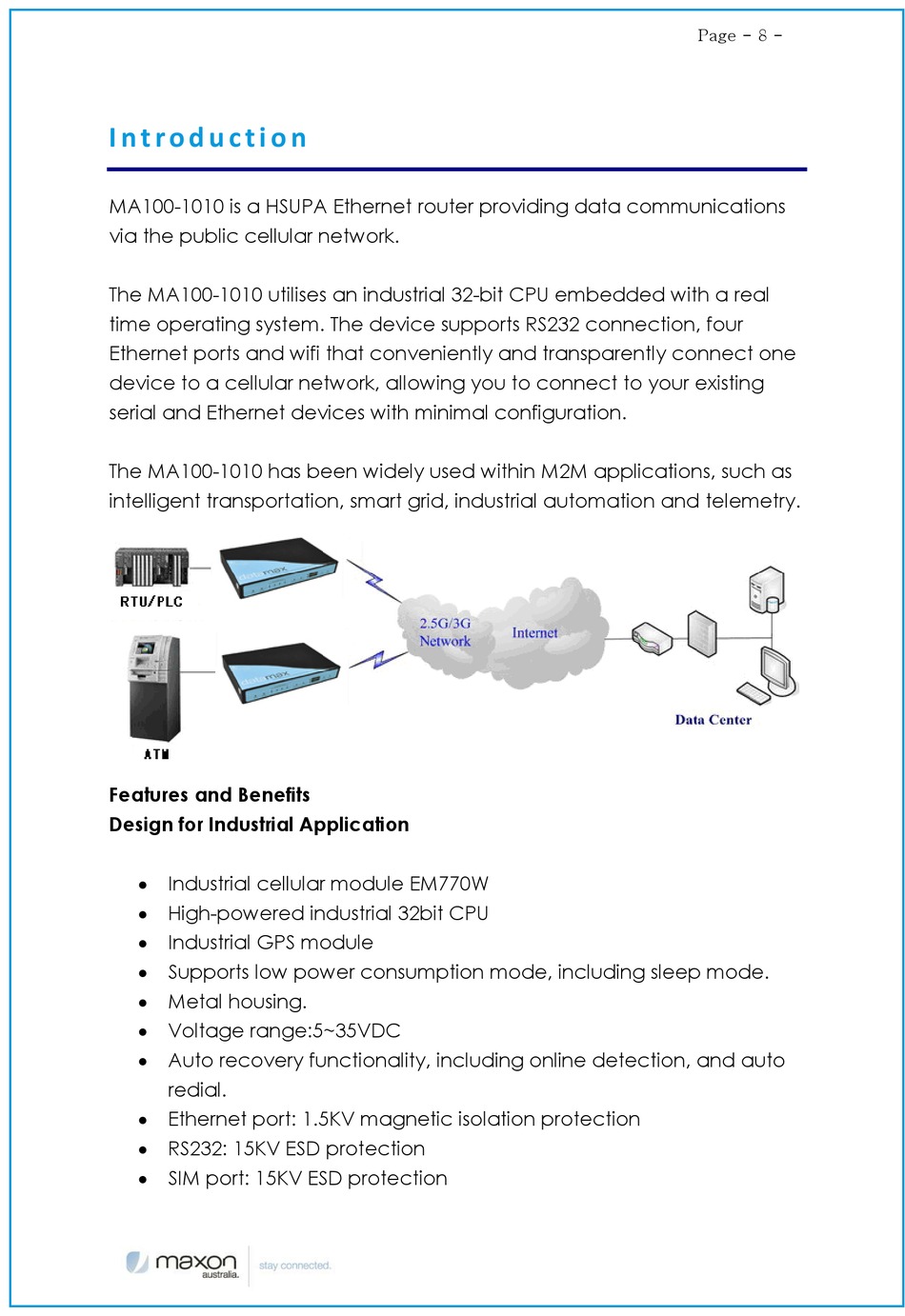

I n t r o d u c t i o n
MA100-1010 is a HSUPA Ethernet router providing data communications
via the public cellular network.
The MA100-1010 utilises an industrial 32-bit CPU embedded with a real
time operating system. The device supports RS232 connection, four
Ethernet ports and wifi that conveniently and transparently connect one
device to a cellular network, allowing you to connect to your existing
serial and Ethernet devices with minimal configuration.
The MA100-1010 has been widely used within M2M applications, such as
intelligent transportation, smart grid, industrial automation and telemetry.
Features and Benefits
Design for Industrial Application
 Industrial cellular module EM770W
 High-powered industrial 32bit CPU
 Industrial GPS module
 Supports low power consumption mode, including sleep mode.
 Metal housing.
 Voltage range:5~35VDC
 Auto recovery functionality, including online detection, and auto
redial.
 Ethernet port: 1.5KV magnetic isolation protection
 RS232: 15KV ESD protection
 SIM port: 15KV ESD protection
