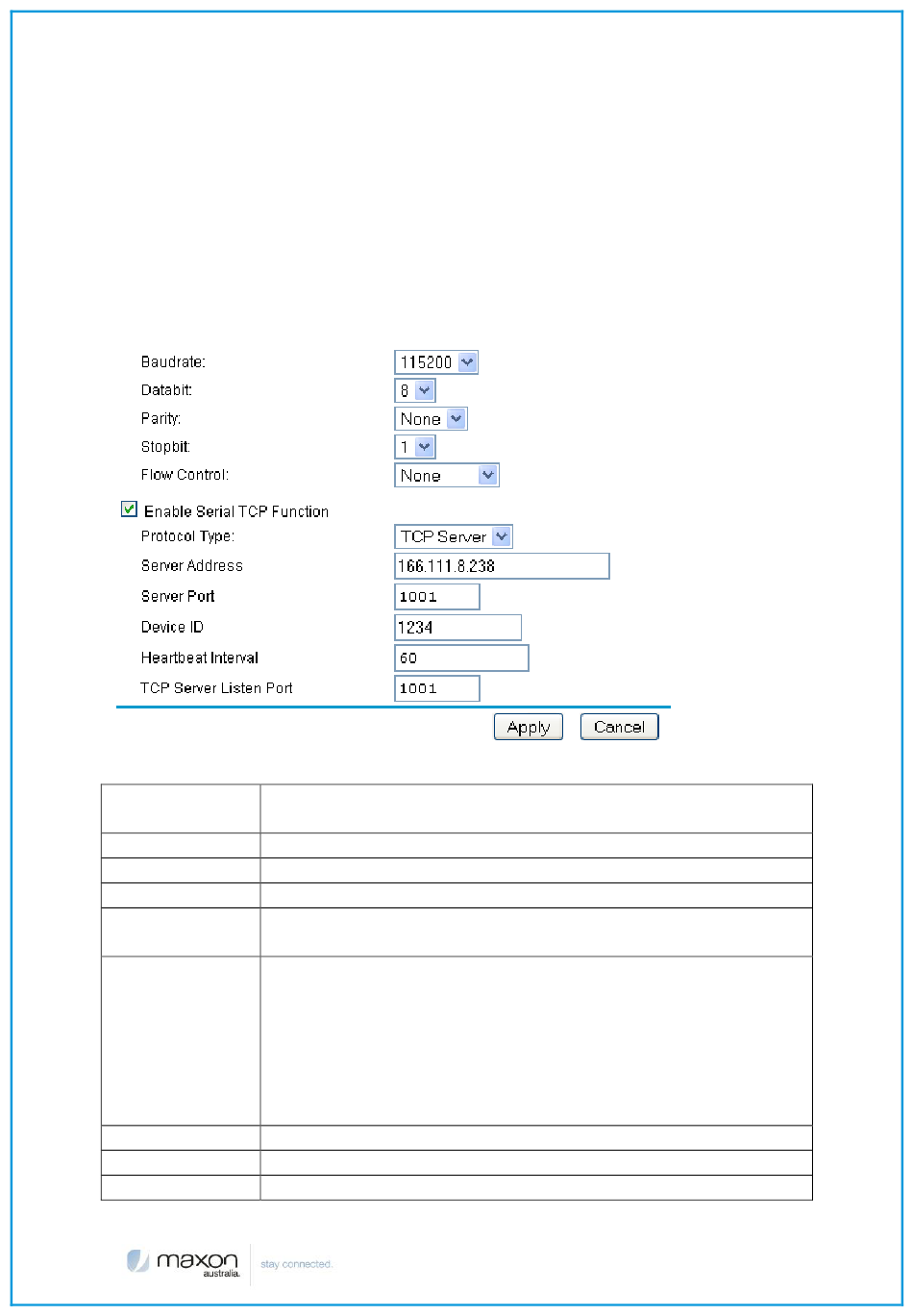

Serial Settings

The console port on the Datamax is normally used for router debugging.
The console port can also be used as a standard serial port.
The data sent via the serial port is encapsulated by a TCP/IP protocol
stack prior to being sent to the destination server. This function allows the
Datamax to operate as a DTU (Data Terminal Unit).
Serial port Settings:
Baud rate
The serial port baud rate supports
110,300,1200,2400,4800,9600,19200,38400,57600,115200
Data bit
data bit supports 8,7,6,5 data bit
Parity
parity supports odd and even parity
Stop bit
stop bit, supports 1 and 2 stop bits
Enable
Serial
Enable the serial to TCP function
TCP Function
Protocol Type
Supports the following:
UDP(DTU) – UDP with heart beat mechanism
Pure UDP – Data transmit with standard UDP protocol.
TCP(DTU) -- TCP with Heart beat mechanism
Pure TCP -- Data transmit with standard TCP protocol
TCP Server: the Modem will be listening on the WANIP
address and defined port number
Server Address
The data service center's IP Address or domain name
Server Port
The data service center's listening port
Device ID
The router's identity number
