9 BIOM
Instruction Manual BIOM® 5 (G/55400/0413/en)

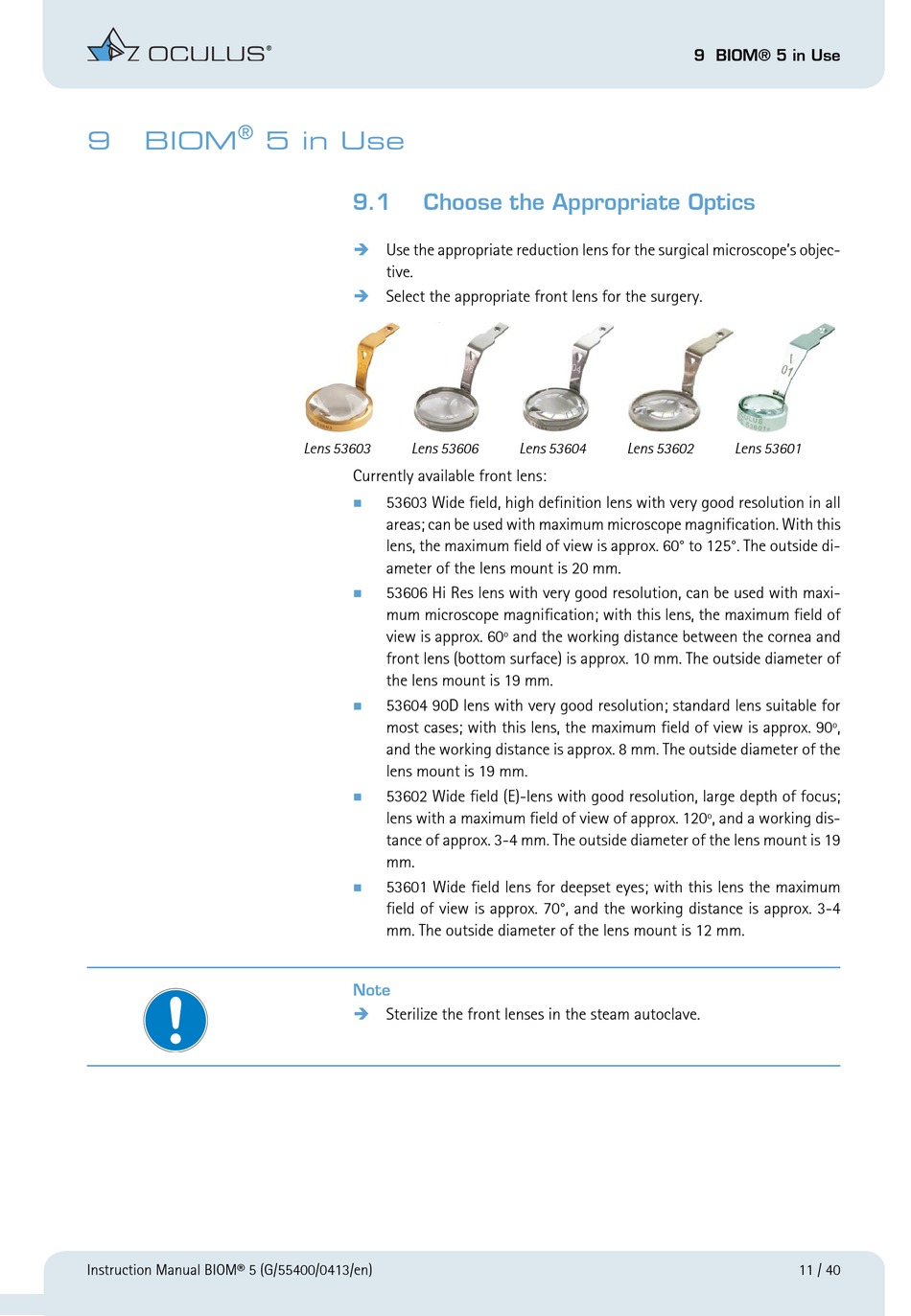

5 in Use
9.1

Choose the Appropriate Optics


Use the appropriate reduction lens for the surgical microscope's objec-
tive.

Select the appropriate front lens for the surgery.
Lens 53603 Lens 53606
Currently available front lens:
53603 Wide field, high definition lens with very good resolution in all

areas; can be used with maximum microscope magnification. With this
lens, the maximum field of view is approx. 60° to 125°. The outside di-
ameter of the lens mount is 20 mm.
53606 Hi Res lens with very good resolution, can be used with maxi-

mum microscope magnification; with this lens, the maximum field of
view is approx. 60º and the working distance between the cornea and
front lens (bottom surface) is approx. 10 mm. The outside diameter of
the lens mount is 19 mm.
 53604 90D lens with very good resolution; standard lens suitable for
most cases; with this lens, the maximum field of view is approx. 90º,
and the working distance is approx. 8 mm. The outside diameter of the
lens mount is 19 mm.
53602 Wide field (E)-lens with good resolution, large depth of focus;

lens with a maximum field of view of approx. 120º, and a working dis-
tance of approx. 3-4 mm. The outside diameter of the lens mount is 19
mm.
53601 Wide field lens for deepset eyes; with this lens the maximum

field of view is approx. 70°, and the working distance is approx. 3-4
mm. The outside diameter of the lens mount is 12 mm.
Note

Sterilize the front lenses in the steam autoclave.
9 BIOM® 5 in Use
Lens 53604 Lens 53602 Lens 53601
