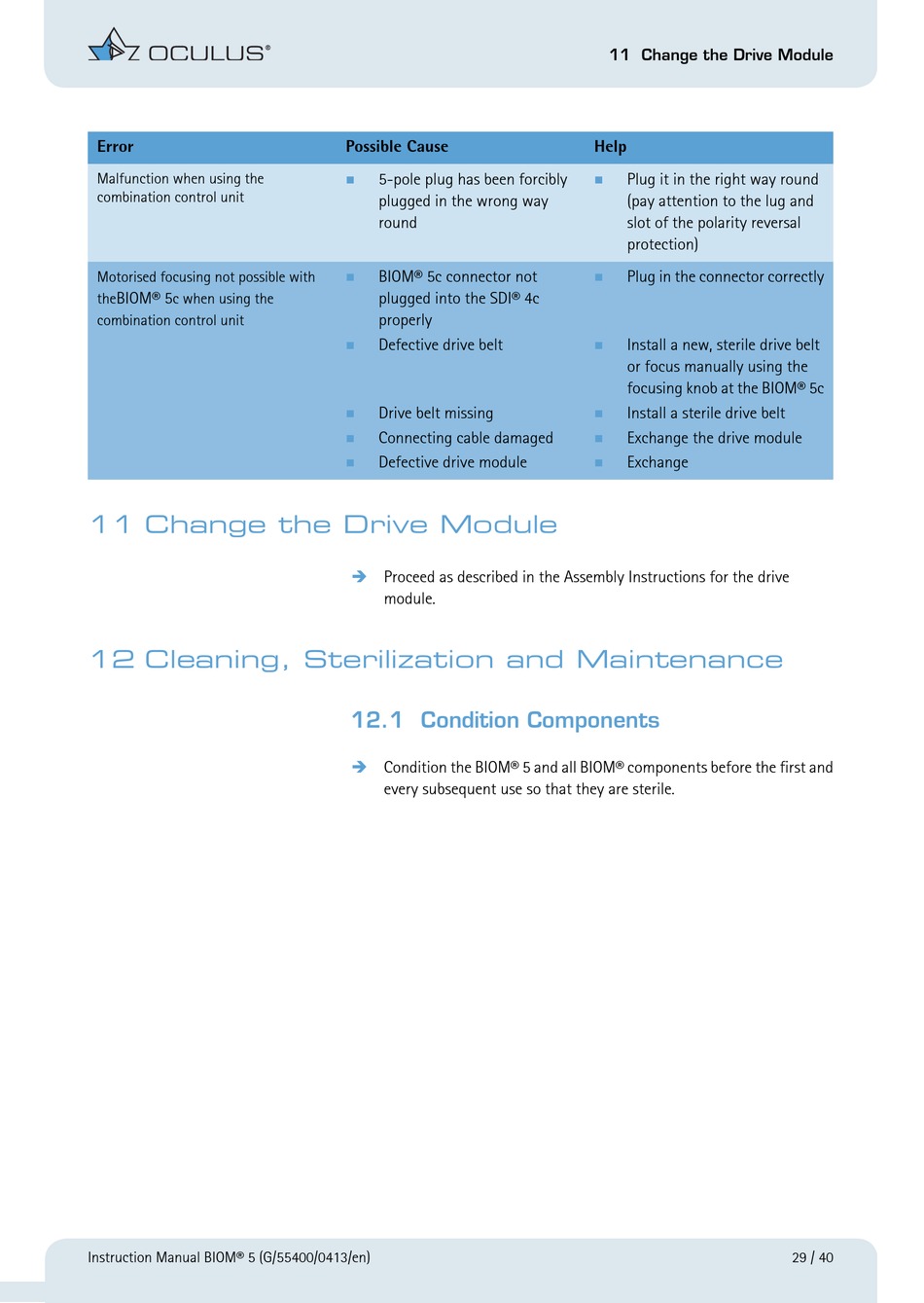

Change The Drive Module; Cleaning, Sterilization And Maintenance; Condition Components - OCULUS BIOM 5c Instruction Manual

Error
Malfunction when using the
combination control unit
Motorised focusing not possible with
BIOM® 5
the c when using the
combination control unit

11 Change the Drive Module

12 Cleaning, Sterilization and Maintenance

Instruction Manual BIOM® 5 (G/55400/0413/en)
Possible Cause
5-pole plug has been forcibly

plugged in the wrong way
round
 BIOM® 5c connector not
plugged into the SDI® 4c
properly
Defective drive belt

Drive belt missing

 Connecting cable damaged
Defective drive module


Proceed as described in the Assembly Instructions for the drive
module.

12.1 Condition Components


Condition the BIOM® 5 and all BIOM® components before the first and
every subsequent use so that they are sterile.
11 Change the Drive Module
Help
Plug it in the right way round

(pay attention to the lug and
slot of the polarity reversal
protection)
 Plug in the connector correctly
Install a new, sterile drive belt

or focus manually using the
focusing knob at the BIOM® 5c
Install a sterile drive belt

 Exchange the drive module
Exchange

29 / 40
