Pull the plug of the BIOM® 5c out of the coupler at
the SDI® 4c housing. To do this, grip the plug at the
sleeve and unlock it.

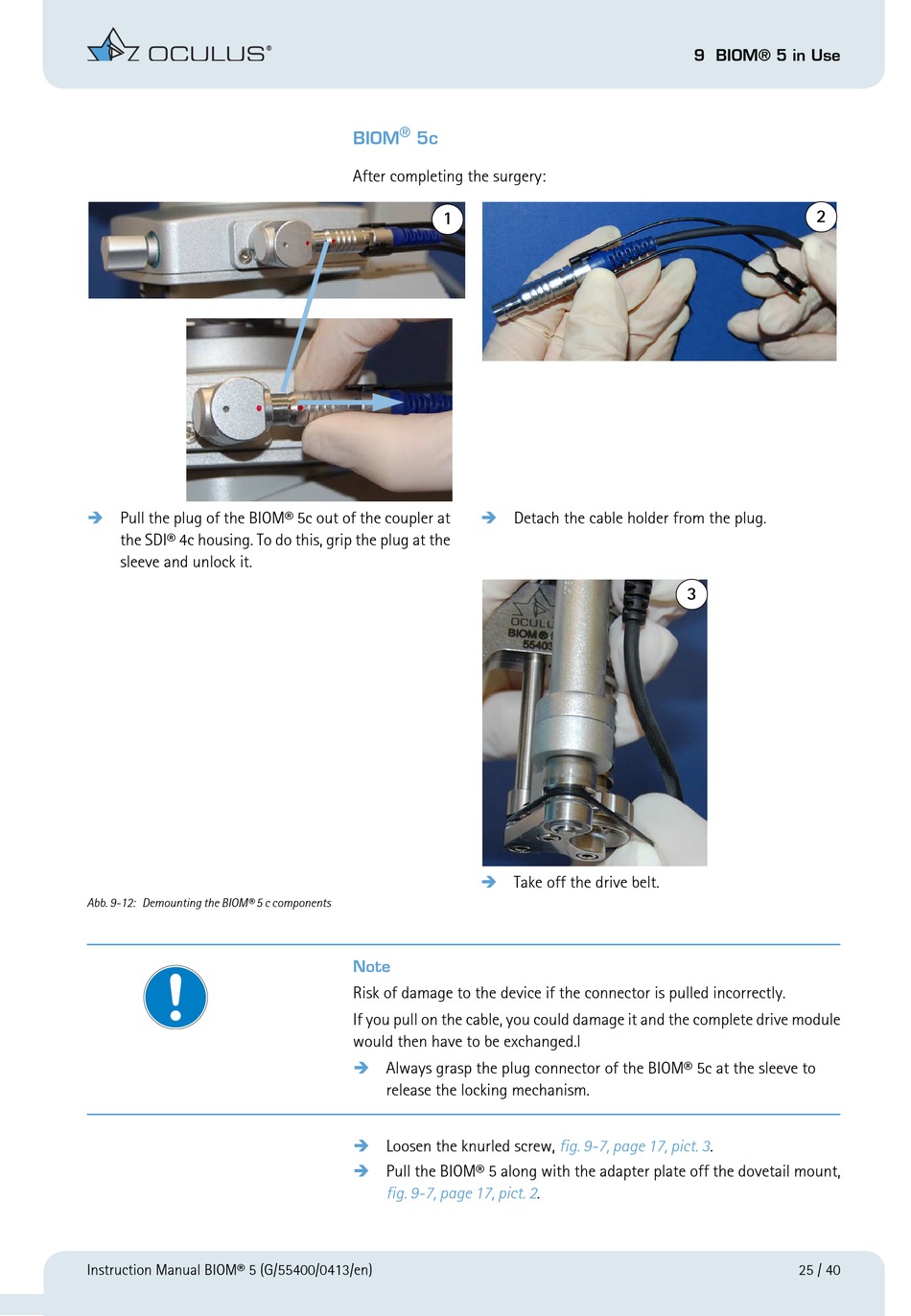

Abb. 9-12: Demounting the BIOM® 5 c components
Instruction Manual BIOM® 5 (G/55400/0413/en)
®
BIOM 5c
After completing the surgery:
1

Detach the cable holder from the plug.

Take off the drive belt.
Note
Risk of damage to the device if the connector is pulled incorrectly.
If you pull on the cable, you could damage it and the complete drive module
would then have to be exchanged.l

Always grasp the plug connector of the BIOM® 5c at the sleeve to
release the locking mechanism.

Loosen the knurled screw,

Pull the BIOM® 5 along with the adapter plate off the dovetail mount,
fig. 9-7, page 17, pict. 2.
