5 Device Description

5 Device Description
8

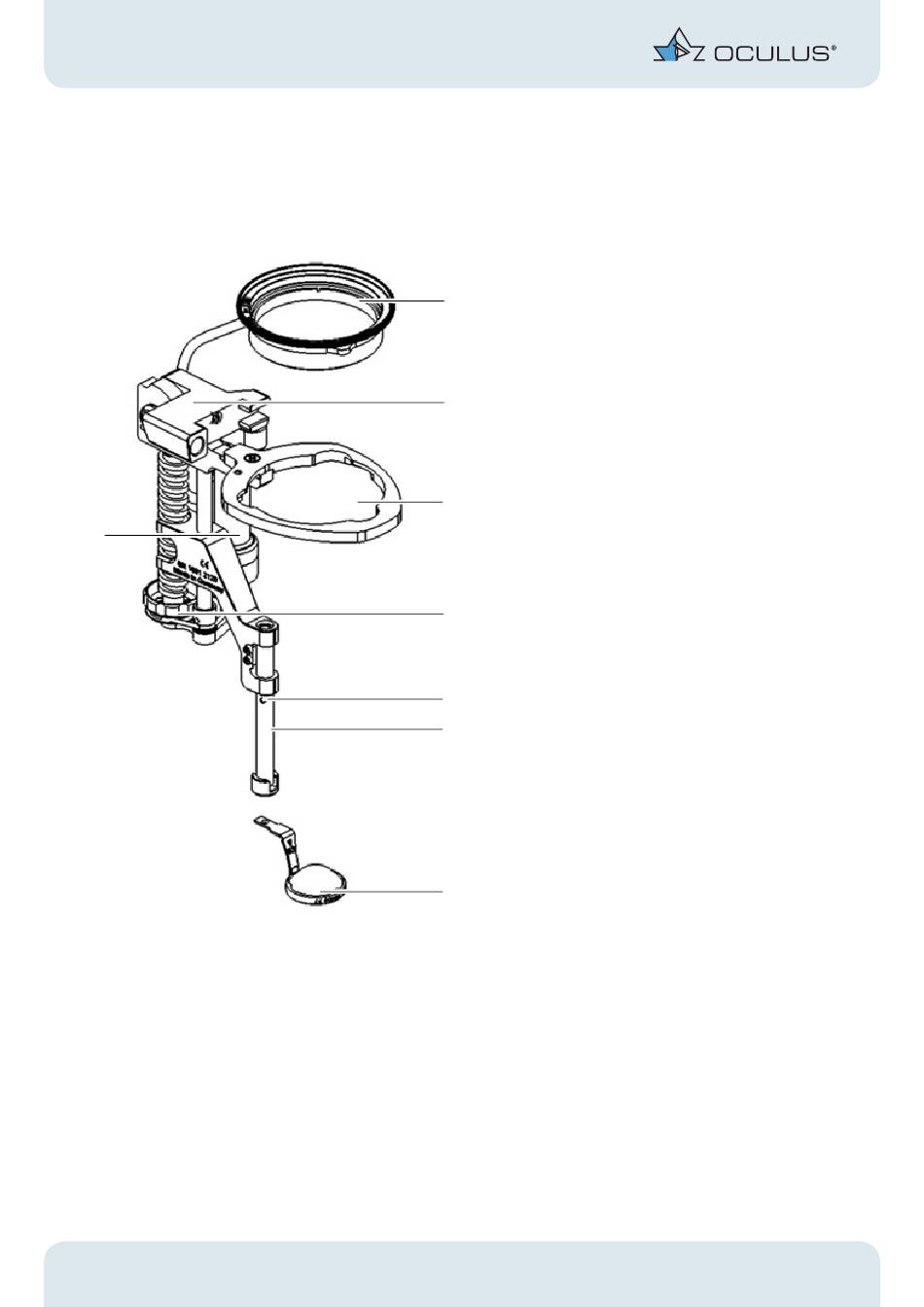

Fig. 5-1: Device overview BIOM® 5c with reduction lens and ophthalmoscopy lens
6 / 40
®
BIOM 5c
1 Reduction lens
(not supplied with the BIOM®)
2 Housing with swivel mechanism
1
3 Lens receptacle
4 Focus adjustment wheel
5 Control mark
6 Lensholder with safety rod
7 Front lens
2
(not supplied with the BIOM®)
8 Drive module
3
4
5
6
7
