Connect the cable to the SDI®. The connector locks automatically.
Recommendation: If surgery is to be done on the left eye, connect the
control cable at the left hand side of the SDI®. When doing surgery on a
right eye, connect the control cable at the right hand side.
9.5 Swivel the BIOM
Parked Position

During extra-ocular surgery phases, swing the BIOM® out of the beam
path into the parked position.

When swinging out the BIOM®, push in the safety rod, including the
front lens, with you finger, until the rod reaches the limit stop.

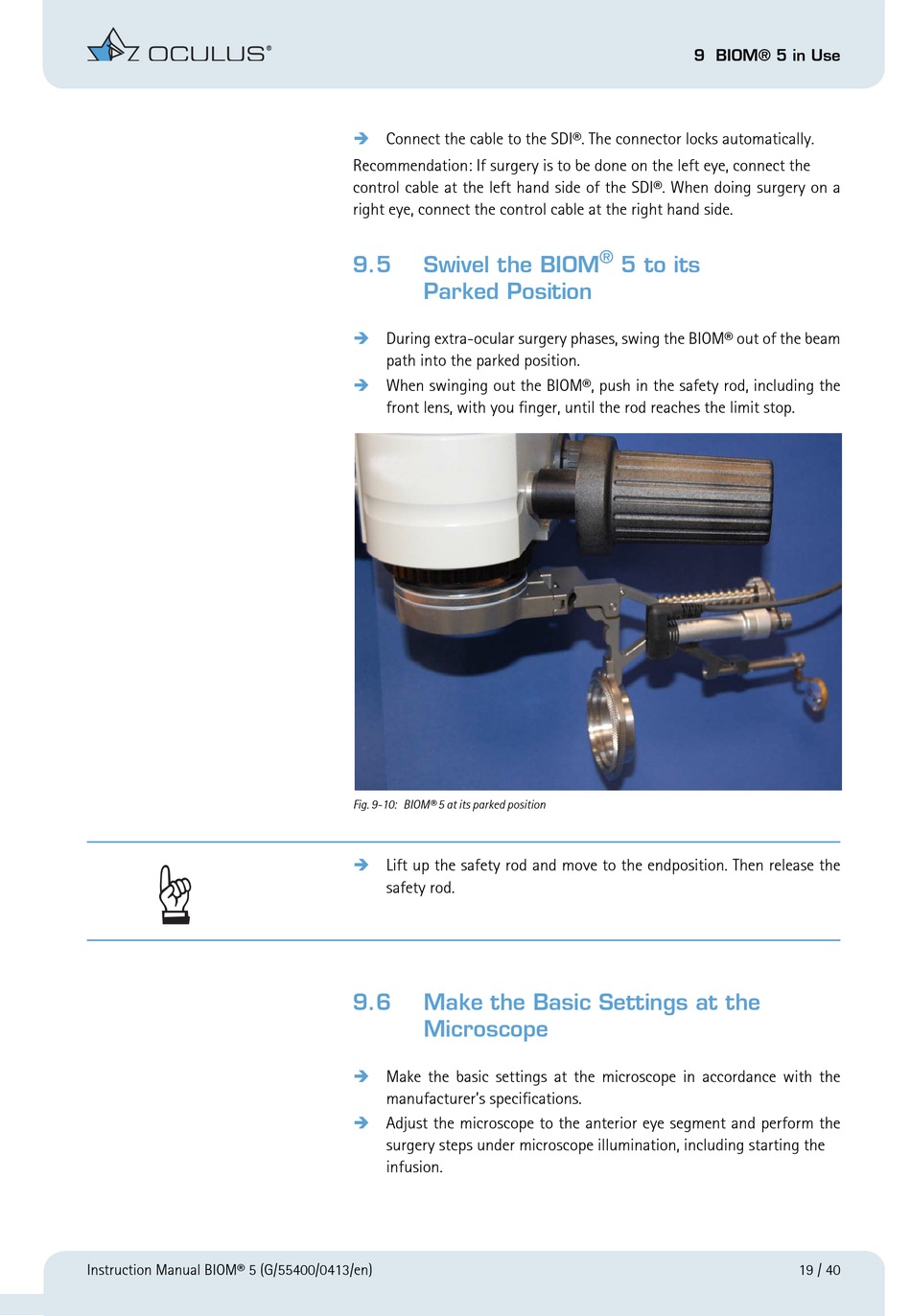

Fig. 9-10: BIOM® 5 at its parked position

Lift up the safety rod and move to the endposition. Then release the
safety rod.
9.6 Make the Basic Settings at the
Microscope

Make the basic settings at the microscope in accordance with the
manufacturer's specifications.

Adjust the microscope to the anterior eye segment and perform the
surgery steps under microscope illumination, including starting the
infusion.
