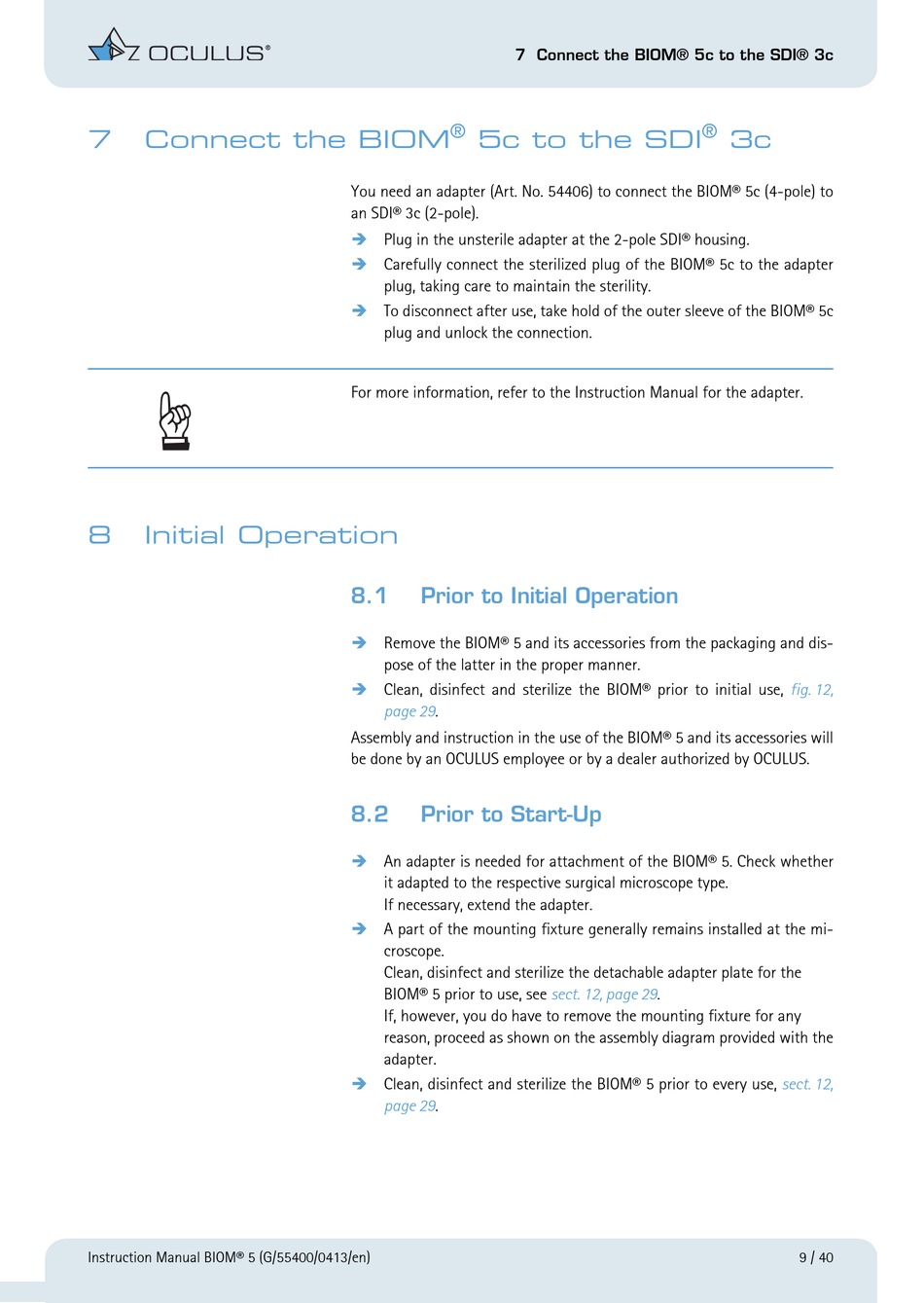

7 Connect the BIOM® 5c to the SDI® 3c
®
5c to the SDI
You need an adapter (Art. No. 54406) to connect the BIOM® 5c (4-pole) to
an SDI® 3c (2-pole).

Plug in the unsterile adapter at the 2-pole SDI® housing.

Carefully connect the sterilized plug of the BIOM® 5c to the adapter
plug, taking care to maintain the sterility.

To disconnect after use, take hold of the outer sleeve of the BIOM® 5c
plug and unlock the connection.
For more information, refer to the Instruction Manual for the adapter.
8.1

Prior to Initial Operation


Remove the BIOM® 5 and its accessories from the packaging and dis-
pose of the latter in the proper manner.

Clean, disinfect and sterilize the BIOM® prior to initial use,
page 29.
Assembly and instruction in the use of the BIOM® 5 and its accessories will
be done by an OCULUS employee or by a dealer authorized by OCULUS.
8.2

Prior to Start-Up


An adapter is needed for attachment of the BIOM® 5. Check whether
it adapted to the respective surgical microscope type.
If necessary, extend the adapter.

A part of the mounting fixture generally remains installed at the mi-
croscope.
Clean, disinfect and sterilize the detachable adapter plate for the
BIOM® 5 prior to use, see
If, however, you do have to remove the mounting fixture for any
reason, proceed as shown on the assembly diagram provided with the
adapter.

Clean, disinfect and sterilize the BIOM® 5 prior to every use,
page 29.
®
sect. 12, page 29.
