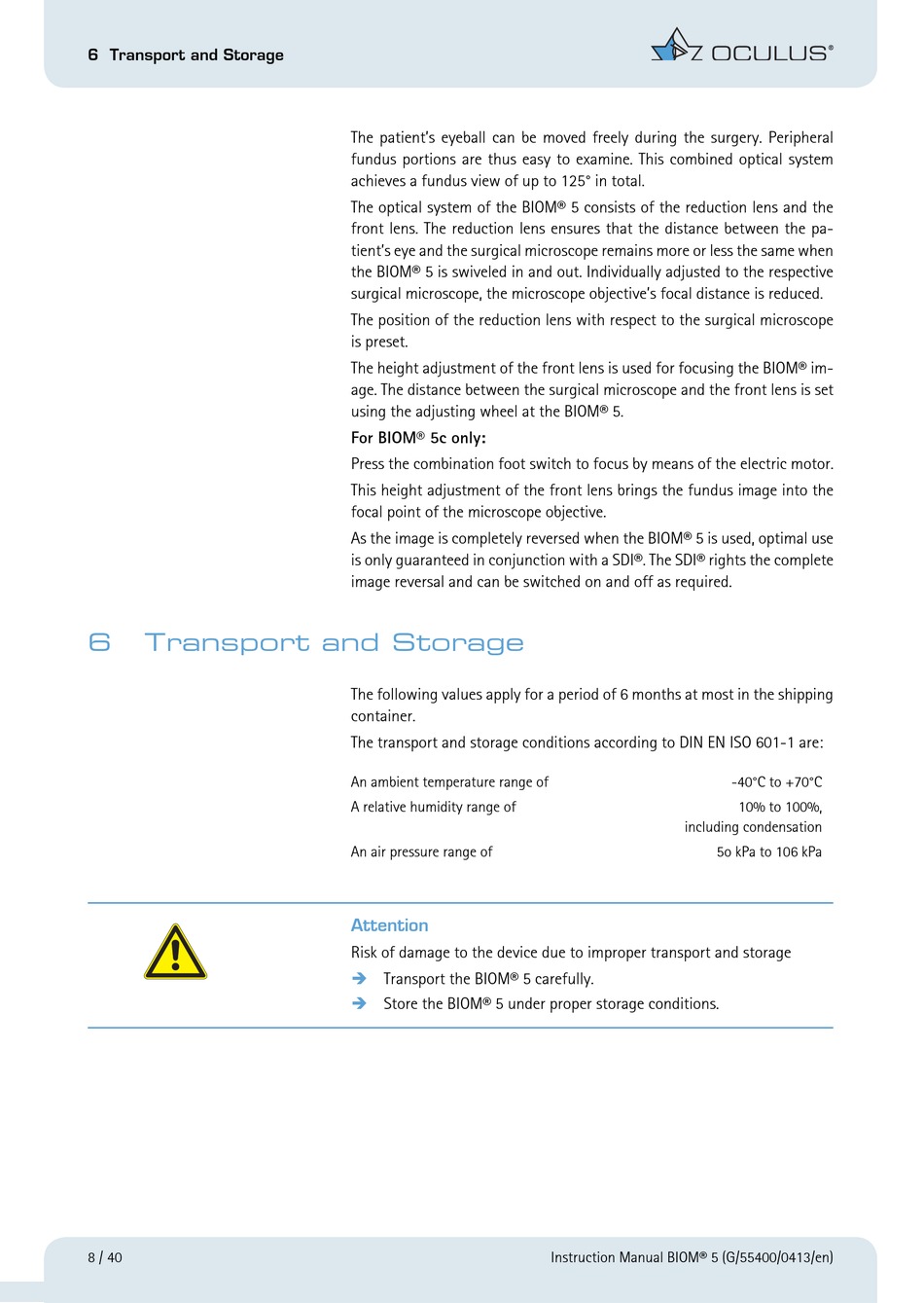

6 Transport and Storage

6 Transport and Storage
8 / 40
The patient's eyeball can be moved freely during the surgery. Peripheral
fundus portions are thus easy to examine. This combined optical system
achieves a fundus view of up to 125° in total.
The optical system of the BIOM® 5 consists of the reduction lens and the
front lens. The reduction lens ensures that the distance between the pa-
tient's eye and the surgical microscope remains more or less the same when
the BIOM® 5 is swiveled in and out. Individually adjusted to the respective
surgical microscope, the microscope objective's focal distance is reduced.
The position of the reduction lens with respect to the surgical microscope
is preset.
The height adjustment of the front lens is used for focusing the BIOM® im-
age. The distance between the surgical microscope and the front lens is set
using the adjusting wheel at the BIOM® 5.
For BIOM® 5c only:
Press the combination foot switch to focus by means of the electric motor.
This height adjustment of the front lens brings the fundus image into the
focal point of the microscope objective.
As the image is completely reversed when the BIOM® 5 is used, optimal use
is only guaranteed in conjunction with a SDI®. The SDI® rights the complete
image reversal and can be switched on and off as required.
The following values apply for a period of 6 months at most in the shipping
container.
The transport and storage conditions according to DIN EN ISO 601-1 are:
An ambient temperature range of
A relative humidity range of
An air pressure range of
Attention
Risk of damage to the device due to improper transport and storage

Transport the BIOM® 5 carefully.

Store the BIOM® 5 under proper storage conditions.
including condensation
5o kPa to 106 kPa
Instruction Manual BIOM® 5 (G/55400/0413/en)
-40°C to +70°C
10% to 100%,
