9.11 Dismantle


Proceed in reverse order from assembly of the BIOM® 5.

Pull the BIOM® 5 off the adapter plate. To do so, swivel the BIOM® 5
out, fig. 9-4, page 14, pict.

Dismount the two optics,

For BIOM® 5c only:
Remove the drive belt and the flexible cable duct
from the BIOM® 5c.
Before sterilizing, check that the drive module (1) is secure. If it is
loose, either tighten the Allen screw, 2 mm (2) at the drive module or
call in your hospital technician.

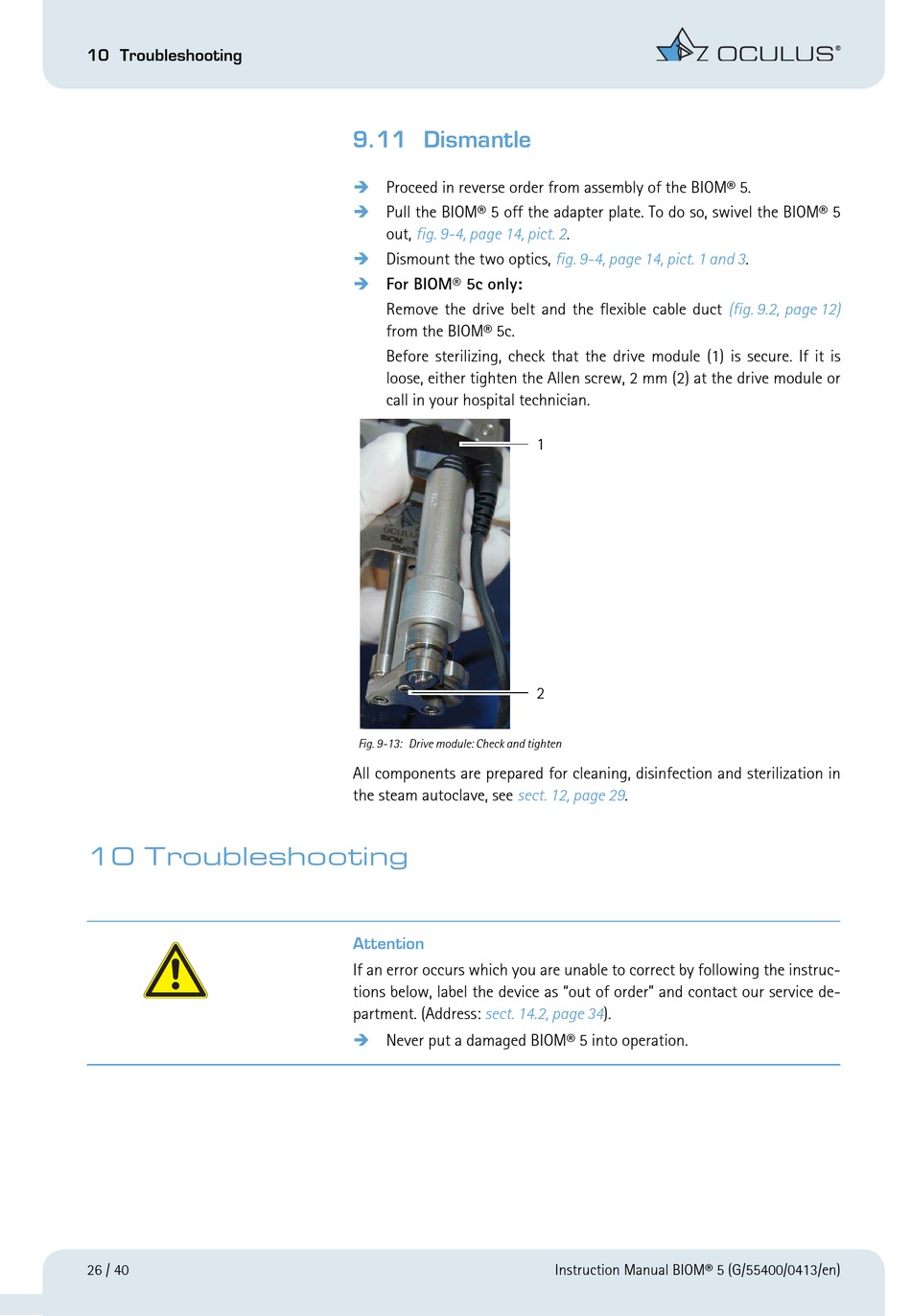

Fig. 9-13: Drive module: Check and tighten
All components are prepared for cleaning, disinfection and sterilization in
the steam autoclave, see sect. 12, page
Attention
If an error occurs which you are unable to correct by following the instruc-
tions below, label the device as "out of order" and contact our service de-
partment. (Address: sect. 14.2, page

Never put a damaged BIOM® 5 into operation.
2.
fig. 9-4, page 14, pict. 1 and
1
2
29.
34).
Instruction Manual BIOM® 5 (G/55400/0413/en)
3.
(fig. 9.2, page 12)
