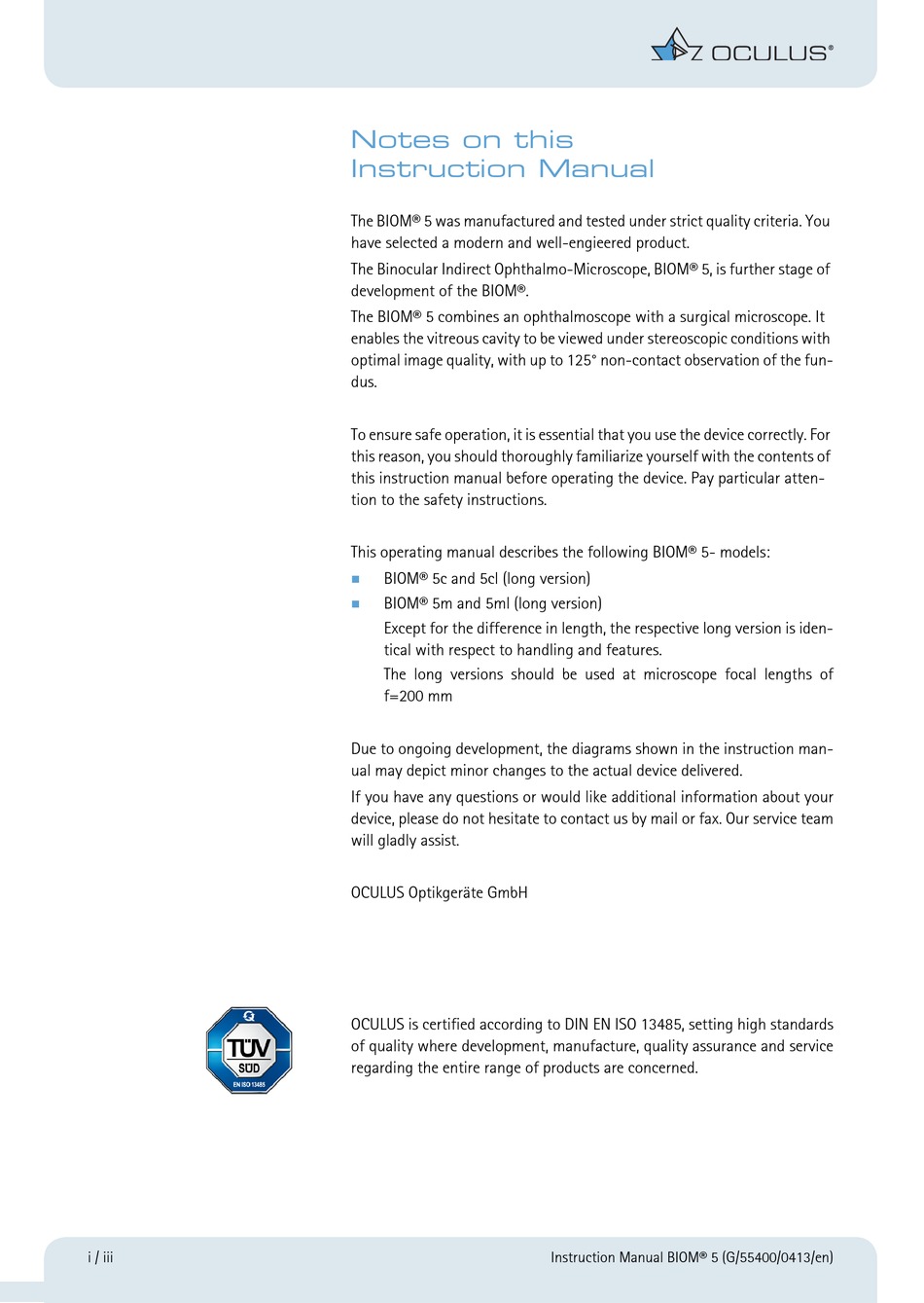

Notes on this
Instruction Manual
The BIOM® 5 was manufactured and tested under strict quality criteria. You
have selected a modern and well-engieered product.
The Binocular Indirect Ophthalmo-Microscope, BIOM® 5, is further stage of
development of the BIOM®.
The BIOM® 5 combines an ophthalmoscope with a surgical microscope. It
enables the vitreous cavity to be viewed under stereoscopic conditions with
optimal image quality, with up to 125° non-contact observation of the fun-
dus.
To ensure safe operation, it is essential that you use the device correctly. For
this reason, you should thoroughly familiarize yourself with the contents of
this instruction manual before operating the device. Pay particular atten-
tion to the safety instructions.
This operating manual describes the following BIOM® 5- models:
BIOM® 5c and 5cl (long version)

 BIOM® 5m and 5ml (long version)
Except for the difference in length, the respective long version is iden-
tical with respect to handling and features.
The long versions should be used at microscope focal lengths of
f=200 mm
Due to ongoing development, the diagrams shown in the instruction man-
ual may depict minor changes to the actual device delivered.
If you have any questions or would like additional information about your
device, please do not hesitate to contact us by mail or fax. Our service team
will gladly assist.
OCULUS Optikgeräte GmbH
OCULUS is certified according to DIN EN ISO 13485, setting high standards
of quality where development, manufacture, quality assurance and service
regarding the entire range of products are concerned.
Instruction Manual BIOM® 5 (G/55400/0413/en)
