Function Of The Biom® 5 - OCULUS BIOM 5c Instruction Manual

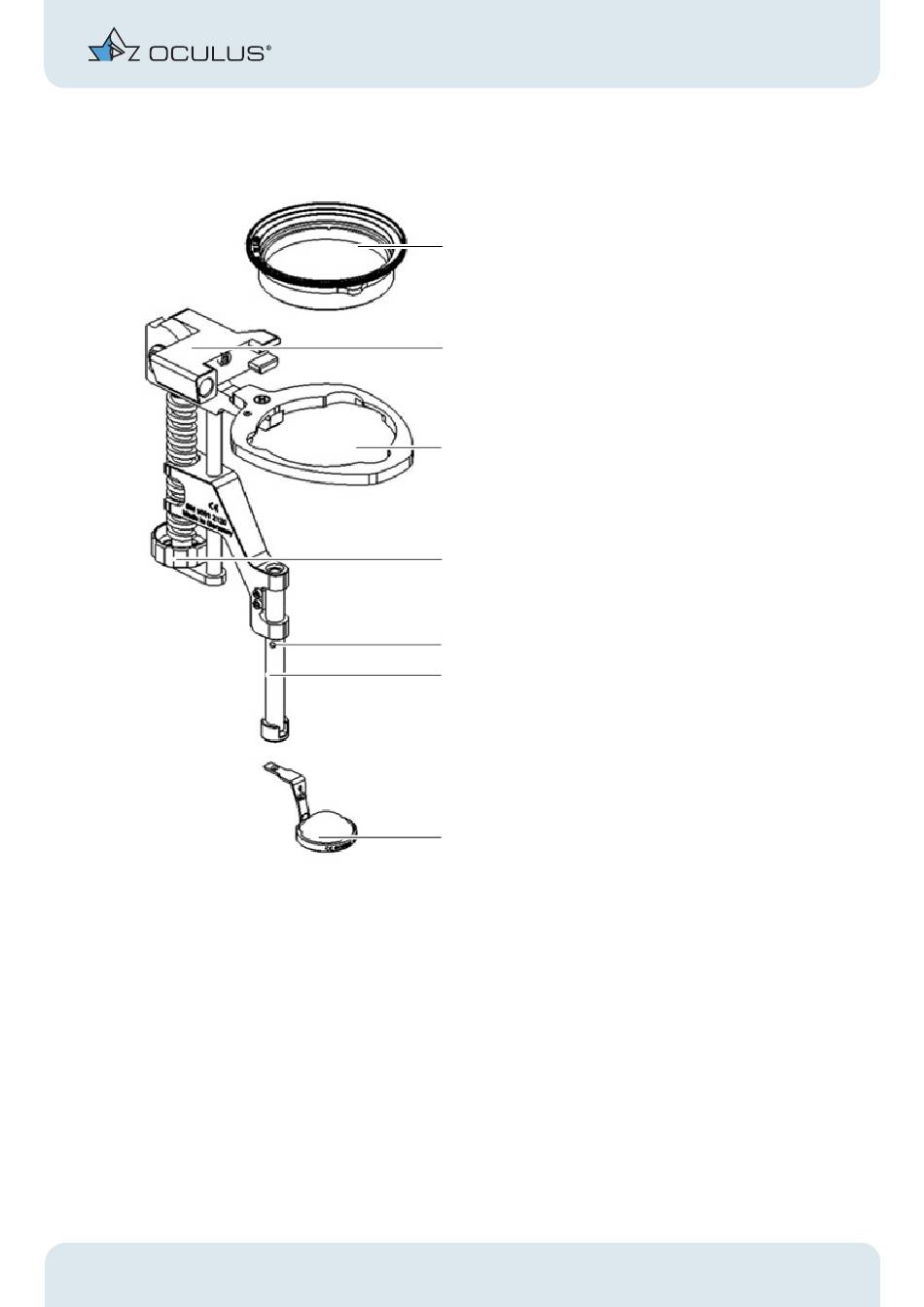

Fig. 5-2: Device overview BIOM® 5m with reduction lens and ophthalmoscopy lens
Instruction Manual BIOM® 5 (G/55400/0413/en)
®
BIOM 5m
1 Reduction lens
(not supplied with the BIOM®)
2 Adjuster, housing with swivel mechanism
1
3 Lens receptacle
4 Focus adjustment wheel
5 Control mark
6 Lens holder with safety rod
7 Front lens
2
(not supplied with the BIOM®)
3
4
5
6
7
5.1 Function of the BIOM® 5
The BIOM® 5 is used in conjunction with an SDI® (Stereoscopic Diagonal
Inverter) to erect the image for non-contact, wide-angle observation of the
fundus and vitreous body.
The combination of surgical microscope and the optical components of the
BIOM® 5 allows examination of the vitreous chamber under stereoscopic
conditions. The BIOM® 5 works as an indirect ophthalmomicroscope with-
out corneal contact during the surgery.
