Lift vector AC Drives
AGy -L
....
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for gefran AGy -L

Summary of Contents for gefran AGy -L

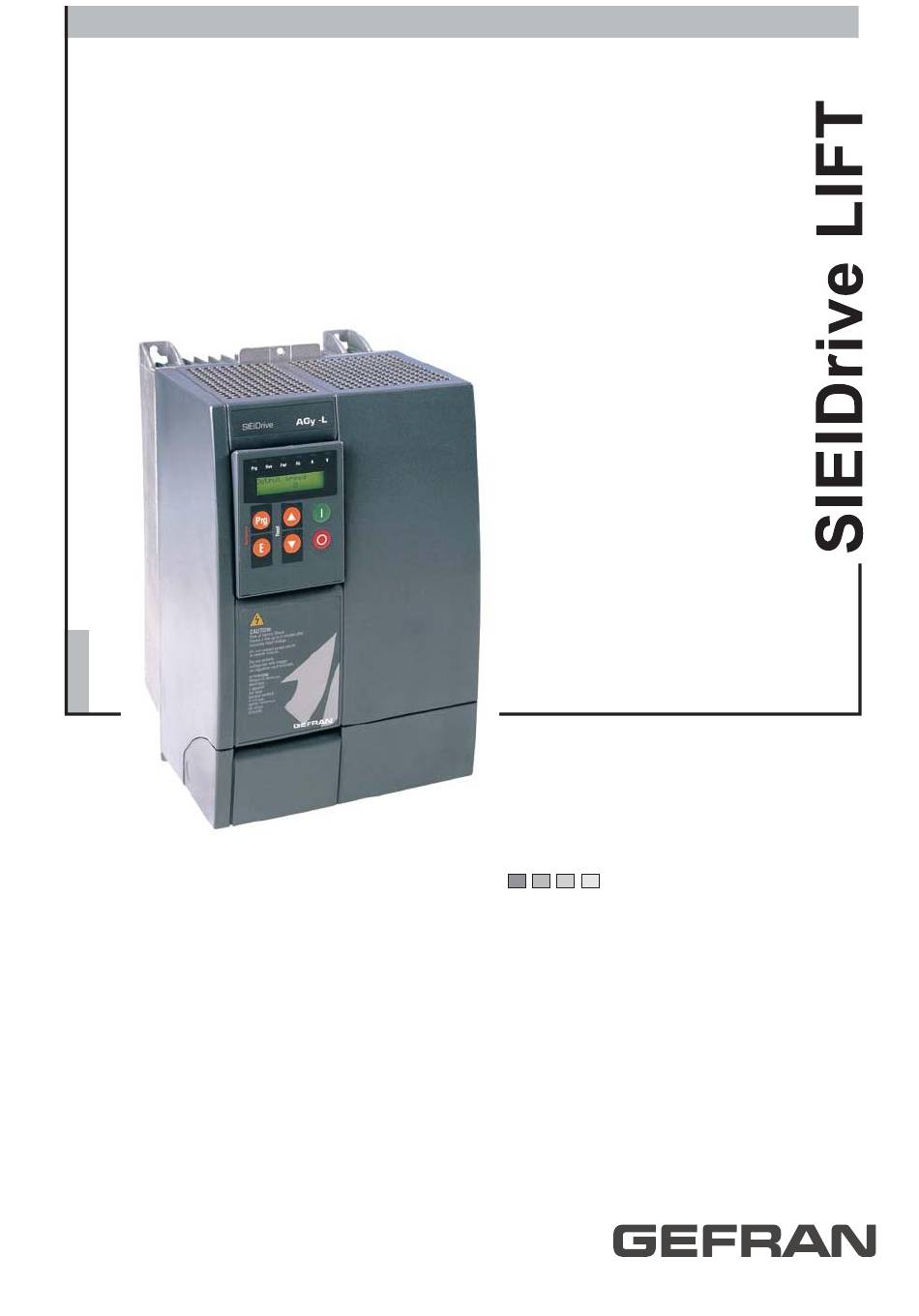

  • Page 1 Lift vector AC Drives AGy -L ..Instruction manual...

  • Page 3: Table Of Contents

    Table of Contents Safety Symbol Legend ......................... 48 1 - Safety Precautions ........................48 2 - Introduction ..........................50 3 - Environment ..........................51 4 - Wiring Procedure ........................59 5 - Drive Keypad Operation ......................65 6 - Commissioning suggestions ....................68 7 - Default lift configuration ......................

  • Page 4: Safety Symbol Legend

    1 - Safety Precautions According to the EEC standards the AGy -L and accessories must be used only after checking that the machine has been produced using those safety devices required by the 89/392/EEC set of rules, as far as the machine industry is concerned.
  • Page 5 If the front plate has to be removed because of ambient temperature higher than 40 degrees, the user has to ensure that no occasional contact with live parts may occur. Do not connect power supply voltage that exceeds the standard specification voltage fluctuation permissible. If excessive voltage is applied to the drive, damage to the internal components will result.

  • Page 6: Introduction

    2 - Introduction AGy -L is a series of dedicated drives used to control lift asynchronous motors ranging from 4.0 to 200 kW. Thanks to the special lift application software, it is best used in case of plant modernization and, in general, in all open loop applications up to 1 m/s and higher in all closed loop applications, by using EXP-ENC-AGy option.

  • Page 7: Environment

    3 - Environment 3.1 Environmental Conditions Ambient temperature __________________ [°C] 0 … +40; +40…+50 with derating, [°F] 32 … +104; +104…+122 with derating Installation location _____________________ Pollution degree 2 or better (free from direct sunligth, vibration, dust, corrosive or inflammable gases, fog, vapour oil and dripped water, avoid saline environment) Installation altitude _____________________ Up to 1000m (3281 feet) above sea level;...
  • Page 8 3.4 Input *: For the specified power sizes, the external reactor is strongly recommended Power Supply and Grounding Drives are designed to be powered from standard three phase lines that are electrically symmetrical with respect to ground (TN or TT network). In case of supply with IT network, the use of delta/wye transformer is mandatory, with a secondary three phase wiring referred to ground.
  • Page 9 AC Input Current Note! The Input current of the drive depends on the operating state of the connected motor. The tables (chapter 3.4) shows the values corresponding to rated continuous service, keeping into account typical output power factor for each size. 3.5 AC Output *: Linear shapes for K , respectively in the ranges [400, 460] Vac, [40, 50]°C, (104, 122)°F.
  • Page 10 Table 3.5.1-A: Overload Availability (Sizes 2040 ... 4371) (1) Load current must be reduced to 90% level to allow next overload cycle. (2) Drive current is limited to 100% level when drive overload alarm is selected as Ignore or Warning. (3) No limit on duration of this time interval @100% Cont current.
  • Page 11 Table 3.5.1-B: Overload Availability (Sizes 5450... 82000) Figure 3.5.1-B: Overload Duty Cycle (Sizes 5450... 82000)
  • Page 12 3.6 Open-Loop and Closed-Loop control section No. 3 Programmable Analog inputs: ________ Analog input 1 ±10 V 0.5 mA max, 10 bit + sign / unipolar or bipolar (0...10V=default) Analog input 2 ±10 V 0.5 mA max, 10 bit + sign / unipolar or bipolar (±10 V =default) Analog input 3 0...20 mA, 4...20mA 10 V max, 10 bit (4...20mA=default) No.
  • Page 13 3.8 Dimensions and installation guidelines Sizes from 2040 to 3150...
  • Page 14 Sizes from 4185 to 82000 Mounting Clearance The Drives must be mounted in such a way that the free flow of air is ensured. The clearance to the device must be at least 150 mm (6 inches). A space of at least 50 mm (2 inches) must be ensured at the front. On sizes 81600 and 82000 the top and bottom clearance must be at least 380 mm (15 inches), on front and sides must be ensured a space of at least 140 mm (5.5 inches).

  • Page 15: Wiring Procedure

    4 - Wiring Procedure 4.1 Power Section Terminals Function U1/L1, V1/L2, W1/L3 AC mains voltage (230V -15% ... 480V +10%) Braking unit resistor command (braking resistor must be connected between BR1 and C) C, D Intermediate circuit connection (770 Vdc, 1.65 x I U2/T1, V2/T2, W2/T3 Motor connection (AC line volt 3Ph, 1.36 I Motor ground connection...
  • Page 16 External fuses of the Power Section DC input side Use the following fuses when a Line Regen converter is used. Chokes / Filters Note! A three-phase inductance should be connected on the AC Input side in order to limit the input RMS current of the Drives.
  • Page 17 Braking Resistors The braking resistors can be subject to unforeseen overloads due to possible failures. The resistors have to be protected using thermal protection devices. Such devices do not have to interrupt the circuit where the resistor is inserted but their auxiliary contact must interrupt the power supply of the drive power section.
  • Page 18 4.2 Cooling fans Szes 2040 ... 5550 No connection is required, the internal fans are power supplied by an internal circuit. Sizes 6750 ... 82000 Power supply for these fans have to be provided as follow: - 6750: 0.8A@115V/60Hz, 0.45A@230V / 50Hz - 7900 ...
  • Page 19 4.3 Regulation Section ‘...
  • Page 20 Term. Designation Function Digital Output 4-NO Digital Output 4-COM Programmable digital relay output, default: [2] Drive OK (max 1A 30Vdc/250Vac) Digital Output 4-NC Digital Input 8 Programmable digital input - Default: Fault Reset src Digital Input 7 Programmable digital input - Default: Ext fault src Digital Input 6 Programmable digital input - Default: Freq Sel 3 src Digital Input 5...

  • Page 21: Drive Keypad Operation

    5 - Drive Keypad Operation In this chapter the parameters management is described, by using the drive keypad. 5.1 Keypad Changes made to parameter have immediate effect on drive operation, but are not automatically stored in permanent memory. An explicit command is required to permanently store the parameters: " C .000 Save parameters".
  • Page 22 5.2 Language selection Nota! Available on optional keypad KBG-LCD-... only. Switch-on the drive Press the Prg key for about 5 sec., the display will show: Press the the display will show: To select a new language, press Press the E key to confirm. 5.3 Moving through the drive main menu Soon after, the keypad display will show d.000 Output frequency parameter of DISPLAY menu.
  • Page 23 5.4 Scrolling through the drive parameters STARTUP menu example: 5.5 Parameters modification Example: how to change a frequency reference (STARTUP menù ). Note! Same procedure is also valid to Enable/Disable a function (ex.: S.301 Auto boost en) or program the drive I/ Os (i.e.: I.100 Dig output 1 cfg, etc.

  • Page 24: Commissioning Suggestions

    6 - Commissioning suggestions Before changing the parameter settings make sure that the starting values are default values. Change the parameters one at the time; if the change on any parameter is not effective, restore the param- eter initial value before changing another one. •...

  • Page 25: Default Lift Configuration

    In AGy -L drives, commands are always coming from Lift Control Word. It is possible to issue the Run Fwd or Run Rev commands from keypad, in order to simplify the startup procedure.
  • Page 26 Each command may come from any of the drive digital input terminals (either standard or expanded), or can be a logical combination of terminal inputs, obtained by using the drive internal programmable area It is anyway possible to assign commands different from the default ones: For example, if we want the Enable command to come from the digital input 3 of the drive (terminal 24 on the regulation board), we have to set parameter I.000 Enable src to the value “[4] DI 3”.
  • Page 27 Ramp Sel 1 ... 2 The binary code defined by the status of these signals selects the set of parameters for ramp profile (jerks, acceleration and deceleration). By default, the first ramp selector is commanded by the ShortFloorFl (see chapter 7.3), while the second ramp selector is fixed to FALSE. Therefore, the first ramp set is normally active, and the drive will automatically switch to the second ramp set whenever a short floor is detected (see Fig.7.5).
  • Page 28 Fig.7.1 – Lift standard wiring and connection of Emergency Module MW22U (optional)
  • Page 29 7.2 Lift Sequence Timing diagrams of the lift sequence are reported in Fig. 7.2 and Fig. 7.3. Fig. 7.2 – Standard lift sequence S.250 Cont close delay (Default : 0,20) S.251 Magnet time (Default : 1) S.252 Brake open delay (Default : 0,20) S.253 Smooth start dly (Default : 0)

  • Page 30: Lift-Dedicated Digital Output Functions

    Fig. 7.3 – Detailed stopping sequence S.260 Lift Stop Mode = [0] DC brake at stop (Default) S.260 Lift Stop Mode = [1] Normal stop 7.2.1 Lift-dedicated digital output functions Several specific functions can be programmed on the drive digital outputs, in order to check the correctness of the lift sequence and to improve the interaction with the external sequencer.

  • Page 31: Speed Indication

    This signal is available as default on terminal 16, Digital output 1. [52] Contactor UP TRUE when the Run contactor for upward motion has to be closed. [53] Contactor DOWN TRUE when the Run contactor for downward motion has to be closed. [54] Brake cont TRUE when the mechanical brake has to be released.

  • Page 32: Short Floor Function

    deceleration ramp is too slow, as compared to the re-aligning distance, the lift car could stop after the floor level. If acceleration and/or deceleration ramps are too fast, the drive may reach the output current limit. In this case, the drive will automatically clamp the current to a safe value, with a resulting loss of output torque.
  • Page 33 7.4 Startup Menu Lift version has parameters that are organized with access levels, as follows: The access level is set by the parameter P.998 Param access lev. Note! When using E@syDrives configurator, all parameters are accessible, regardless of what is specified by parameter P.998.
  • Page 34 Code Display (Description) Def. Min. S.180 Car max speed (linked to A.090) 0.50 0.01 5.00 Speed of the lift car (m/s) when the inverter outputs the rated frequency. S.200 Frequency ref 0 (linked to F.100) 10.0 -F.020 F.020 See description of S.207. S.201 Frequency ref 1 (linked to F.101) 50.0...
  • Page 35 Code Display (Description) Def. Min. S.241 Acceleration 2 (linked to F.203) 0.60 0.01 5.00 Linear acceleration (m/s ) with ramp set 2. S.242 Jerk acc end 2 (linked to F.256) 1.40 0.01 10.00 Jerk (m/s ) applied at the beginning of a deceleration with ramp set 2. S.243 Jerk dec ini 2 (linked to F.257) 1.40...
  • Page 36 Code Display (Description) Def. Min. Amount of slip compensation (% of rated slip, calculated from nameplates) during regeneration (power flows back from load to motor). S.312 Slip comp filter (linked to P.101) 10.0 Time constant (s) of the filter used for slip compensation. The lower this value, the faster the compensation, with improved speed control.
  • Page 37 7.5 Menù Display Code Display Description Unit Var. d.000 Output frequency Drive output frequency 0.01 001 d.001 Frequency ref Drive frequency reference 0.01 002 d.002 Output current Drive output current (rms) d.003 Output voltage Drive output voltage (rms) d.004 DC link voltage DC Bus drive voltage (DC) d.005 Power factor Power factor...
  • Page 38 Code Display Description Unit Var. d.201 An in 1 monitor Analog input 1 output block % value d.202 An in 1 term mon Analog input 1 input block % value d.210 An in 2 cnf mon Analog input 2 destination; it shows the function associated to this AI.
  • Page 39 Code Display Description Unit Var. d.450 Mdplc error Status of internal sequencer No error Internal sequencer error d.500 Lift space 0.01 Space needed to accelerate the car from zero to max speed and then decelerate back to zero d.501 Lift space Space needed to accelerate the car from zero to max speed d.502 Lift space 0.01...

  • Page 40: Encoder Interface (Exp-Enc-Agy Option Board)

    8 - Encoder Interface (EXP-ENC-AGy option board) AGy -L provides an enhanced encoder interface for closed loop speed control. Standard two channels quadrature digital encoders with 5V, 8V or 24V power supply can be used. Maximum input frequency on either channel is 150kHz.
  • Page 41 8.4 Encoder cable break control function The encoder cable break control function is available from card EXP-ENC-AGy rev. C with fw 3.04 and later. To enable the function, set parameter I.506 Enc fault enable = 1 (Enabled) Note! For instructions on how to connect single-channel encoders and enable the encoder cable break control function and for details of electrical specifications and configurations, please see the manual supplied with the EXP-ENC-AGy card.

  • Page 42: Emergency Operation

    9 - Emergency Operation AGy -L is able to operate from a backup power supply (batteries, or single-phase 220Vac) in case of mains fault. In figure 7.1, typical connection diagram of the Emergency Module MW22 is shown. When using this configuration, the following parameters have to be changed from default, in order to activate the emergency operation: I.005 Freq Sel 3 src = “[0] False”...

  • Page 43: Troubleshooting

    10 - Troubleshooting 10.1 Drive Alarm Condition The drive keypad will show on the 2nd line of alphanumeric display a blinking message with the code and name of the alarm occurred. The figure below shows an example of OV Overvoltage alarm condition during d.000 Output frequency parameter displaying.
  • Page 44 10.3 List of drive alarm events Table 10.3.1 provides a description of the causes for all the possible alarms. *) OH switch sensor threshold and OHS analog sensor threshold depend on the drive size (75 °C ... 85 °C) Table 10.3.1 Alarm event list...

  • Page 45: Emc Directive

    11 - EMC Directive EMC Directive The possible Validity Fields of the EMC Directive (89/336) applied to PDS “CE marking” summarises the presumption of compliance with the Essential Requirements of the EMC Directive, which is formulated in the EC Declaration of Conformity Clauses numbers [.] refer to European Commission document “Guide to the Application of Directive 89/336/EEC”...

  • Page 47: Parameter List

    12 - Parameter list Figure 12.1: Parameters Description Legend Note! (ALIAS): On STARTUP menu only. Parameter code of same parameter on other menu . (*): Parameter value depends on the drive size. (1): KBG-LCD-.. keypad: “Confirm? NO” KBG-1 keypad: “off” (2): LCD keypad: “Confirm? YES”...
