User Instructions for PRLCD Remote
Remote Control for Solar Charger Driver Model # LSDCMPPT
Dear valued customer:
Thank you for choosing another Autec Power Systems product and please read the
instructions carefully before use.
•
Email:
sales@autec.com
Technical Sales / Customer Service:
+1-818-338-7788
31328 Via Colinas Suite 102 •
Westlake Village, CA 91362 USA
•
www.autec.com
1 / 11
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AUTEC LSDCMPPT
Summary of Contents for AUTEC LSDCMPPT
- Page 1 User Instructions for PRLCD Remote Remote Control for Solar Charger Driver Model # LSDCMPPT Dear valued customer: Thank you for choosing another Autec Power Systems product and please read the instructions carefully before use. • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 •...
-
Page 2: Table Of Contents
3.6: Checking status and warning.................8 4.Related information........................8 5.Lock/Unlock remote........................10 6.Indicator Light of Controller Conditions..............11 7.Setting battery parameters(For Reference)..............11 • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com... -
Page 3: Product Overview

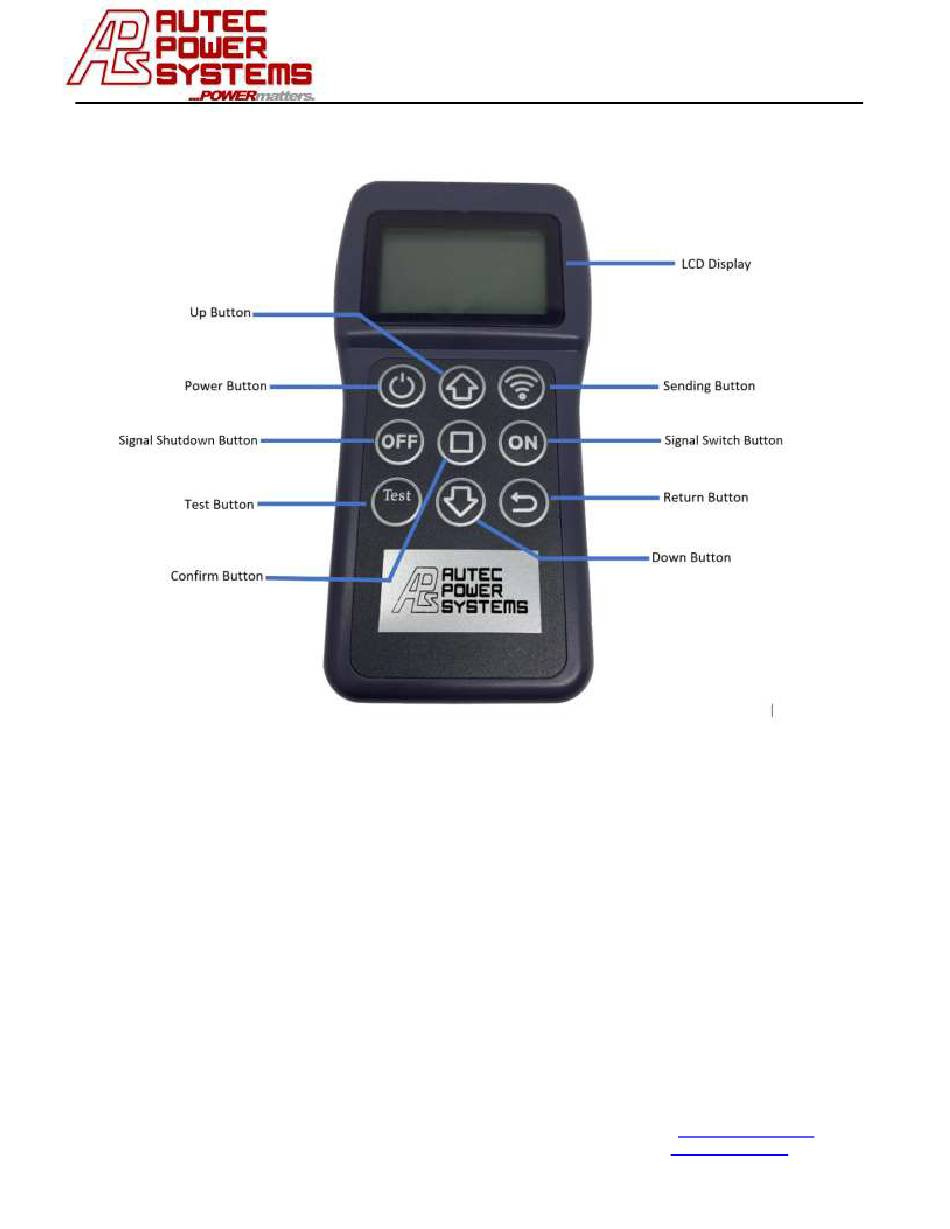

User Instructions for PRLCD Remote 1. Product Overview PRLCD remote is used for reading and setting parameters for the Autec Power systems series LSDCMPPT. Please verify the PRLCD model version before setting the parameters. Requires 2AA batteries, batteries not included. -
Page 4: Operation Steps
3.1 : Confirm controller’s model and version Method as follows: 1. The model No. is on the part, see image 3-1, LSDCMPPT is the model number. 2. See label on the side of controller for product version, reference image 3-2. -
Page 5: Choose Right Version
“ “ to adjust parameters. After setting press “ “ to confirm, see image 3-8 and 3-9. • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA •... -
Page 6: Input Parameters
“, then you will hear a tone, which will indicate the controller(Solar Charger/Driver) is successfully programmed with the new settings. • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA •... -
Page 7: Reading The Controller's(Solar Charger/Driver) Settings
Image: 3-12 Edit Settings Image: 3-13 Press “ “ to adjust parameter Image: 3-14 Press “ “ to confirm • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com... -
Page 8: Related Information
Under-voltage: 9V Recovery: 11.1V Power saving: on Start saving power: 11V Super saving power: 10V • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com 8 / 11... - Page 9 3. Only G3 has “model 1” & “model 2” options. G4 and G5 are “power saving models”, same as “model 1”. • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA •...
-
Page 10: Lock/Unlock Remote
Press the three buttons again to unlock. Note: Under lock condition you can’t revise parameters, but you can read controller’s parameters. Image 3-15 lock/unlock remote • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA •... -
Page 11: Indicator Light Of Controller Conditions
28.8 27.6 • Above parameters are for reference, users should set parameters according to their lighting needs. • Email: sales@autec.com Technical Sales / Customer Service: +1-818-338-7788 31328 Via Colinas Suite 102 • Westlake Village, CA 91362 USA • www.autec.com 11 / 11...
