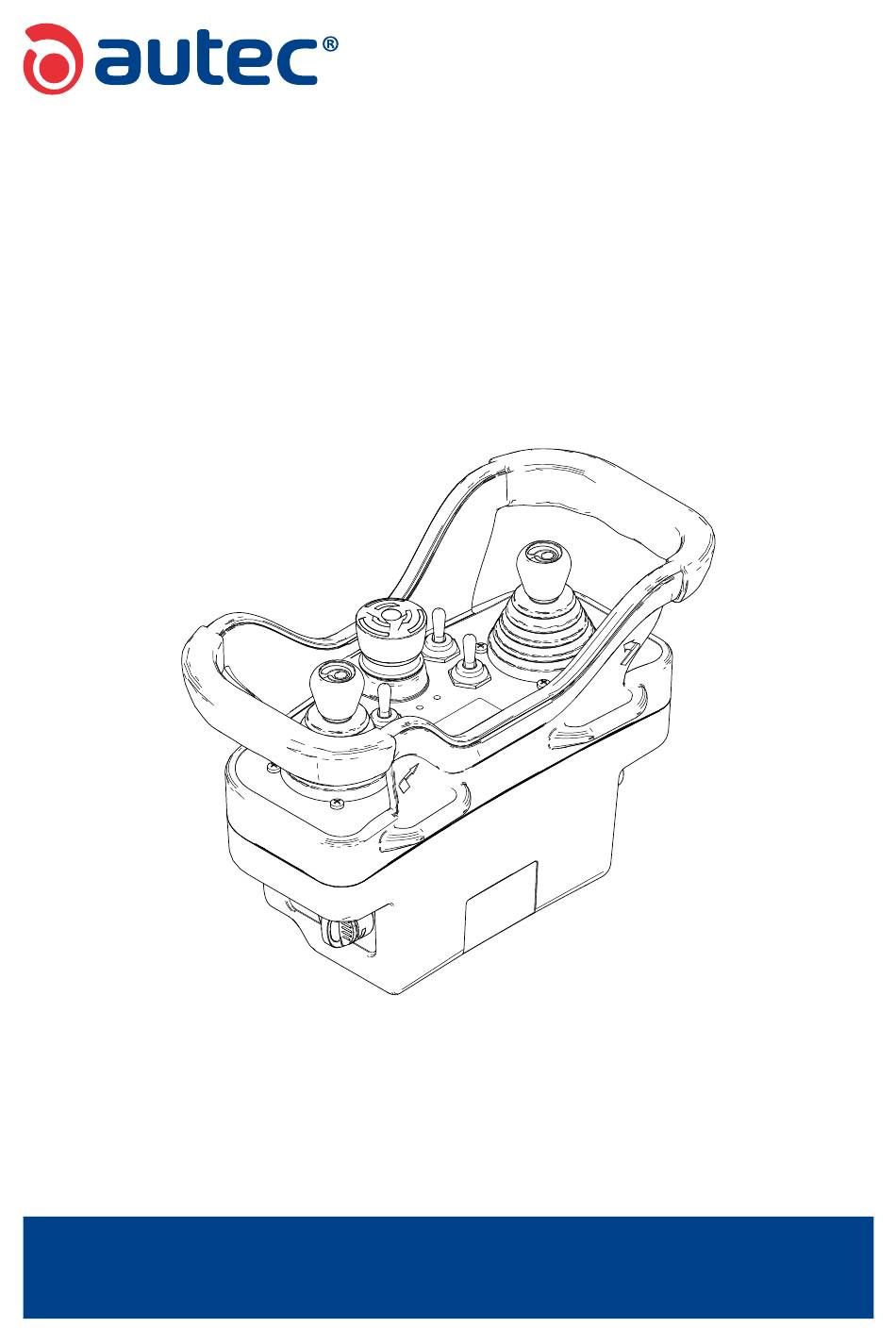

- Page 1 LIUDJS001_eng-01 Instruction Manual for the use and the maintenance of the Radio Remote Control Original instructions Part C: DJS Transmitting Unit DYNAMIC+ SERIES...
- Page 3 Autec Radio Remote Control and all of its components are done solely and completely in accordance with this Manual, and with all local applicable laws, safety rules and standards (all of the foregoing referred to herein as “Laws,...
- Page 4 It is also the responsibility of the Manufacturer and of the design professionals of the Machine on which the Autec Radio Remote Control is to be installed and used to be certain that the structure, condition, organization and markings of the Machine as installed at the facility is appropriate for and will allow for the safe and reliable use and control of the Machine through the Autec Radio Remote Control interface.
- Page 5 Laws, Regulations and Standards, even local, and that such Users and other Persons do in fact at all times operate or work with the Autec Radio Remote Control safely and ONLY in compliance with Autec instructions and warnings and with all applicable Laws, Regulations and Standards, even local.
-
Page 6: Table Of Contents
Maintenance ......................36 Malfunction signalled by the Transmitting Unit ..........37 11.1 Red LED [B] and green LED [A] ..............37 11.2 Bi-coloured LED [A][B] ................. 38 11.3 Identifying the activated command .............. 40 Decommissioning and disposal ................. 43 LIUDJS001_eng-01 AUTEC... -
Page 7: Information On The Use Of Instructions
(Part A) of the Manual provided with the Radio Remote Control. Structure of the Instruction Manual The Manual for the use and maintenance of Autec Dynamic+ series Radio Remote Controls consists of different parts, that altogether form the Manual; the Manual must be read carefully,... - Page 8 Receiving Unit. Usage and maintenance instruction as a whole are to be considered as an integral part both of the Autec Radio Remote Control and of the Machine, system, device or Machinery system where the Radio Remote Control is installed.
-
Page 9: Caption And Terminology
Information on the use of instructions Caption and terminology Contact Autec if any of the instructions, symbols, warnings or images are not clear and understandable, or if you have doubts or questions. In this part of the Manual, the terms listed below have the same meaning explained in the... -
Page 10: To Whom The Instructions Are Addressed
Regulation for the storage of instructions are described in the paragraph with the same title in the general part: please refer to that part. Intellectual property Restrictions connected to intellectual property are described in the paragraph with the same title in the general part: please refer to that part. LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 11: Brief Product Presentation

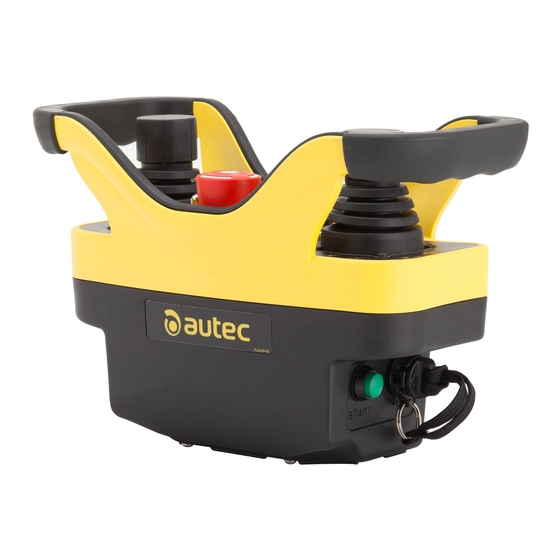

Brief product presentation Series, Radio Remote Control and Unit The object of this part of the Manual is the DJS Transmitting Unit of a Dynamic+ series' Autec Radio Remote Control. Autec Dynamic+ series' Radio Remote Controls are designed to be used on Machines and provide a command interface to their command and control system, to be used from an appropriate distance and position. -
Page 12: Description Of The Transmitting Unit
Description of the Transmitting Unit Description of the Transmitting Unit LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 13: Technical Data
Weight ......................1.3kg (3Lb) Run time at 20°C (68°F): - with battery MBM06MH ....................11h - with battery LPM02 ....................18.5h - with MBM06MH battery and display ................9.5h - with LPM02 battery and display ................... 16h AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 14: Technical Data Sheet
Manufacturing year, bar code and Transmitting Unit Battery housing Transmitting Unit identification number identification plate (TU ID) MODEL, TYPE and main Transmitting Technical data plate Battery housing Unit technical data, marking and possible Radio Remote Control marks LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 15: Light And Acoustic Warning Signals
Machine Manufacturer depending on the Machine's functions for which he wants to receive information. Signals provided by the red LED [A] indicate a Radio Remote Control malfunction. The meaning of these signals and the possible actions to perform are described in chapter 11. AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 16: Acoustic Signals
The acoustic signal device activates whenever the red LED [A] illuminates. The meaning of red LED [A] signals and of the acoustic signal device, and the possible actions to adopt are described in chapter 11. The meaning of the acoustic signals cannot be modified. LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 17: General Operating Instructions
2. rotate the power keyswitch clockwise. 8.1.4 power keyswitch removal Perform the following operations to remove the power keyswitch: 3. rotate the power keyswitch anticlockwise, 4. pull the power keyswitch to remove it from the corresponding housing. AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 18: Start Pushbutton
Machine immediately whenever a dangerous condition occurs. The Machine Manufacturer and/or the Installer must provide the instructions and warnings concerning possible risks that may originate from the Machine stop (by way of example: movement inertia, swinging load…). LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 19: Display
Manual mode. It is not possible to scroll the lines if icons only are displayed. The display lighting stays on for a time set by the Machine Manufacturer. Symbol Meaning This symbol identifies the DISPLAY pushbutton. AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 20: Command Meaning
(offset) (see "Part D" in the Instruction Manual), - invert the movement direction of the joystick's axis (see Installation Manual). Symbol Meaning This symbol identifies the TEACH+ command. This symbol identifies the TEACH- command. LIUDJS001_eng-01 AUTEC - Dynamic+ series... - Page 21 This switch is used to switch on and off a Machine's engine. Symbol Meaning This symbol indicates the power on command of a Machine's engine. This symbol indicates the switch off command of a Machine's engine. AUTEC - Dynamic+ series LIUDJS001_eng-01...
-
Page 22: Low Power Function
- extending the battery run-time. This function is established by the Machine Manufacturer (see Technical Data Sheet). Battery The Dynamic+ series' Transmitting Units can only be powered by Autec rechargeable batteries. For warnings and instructions regarding the battery, see Battery Charger manual. -
Page 23: Id Internal Tx Memory
The Radio Remote Control start up is protected by a power keyswitch to prevent unauthorised use of the Machine. To activate the Radio Remote Control it is necessary to insert the power keyswitch as described in the following procedure. AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 24: Command Activation
Commands monitored by the Transmitting Unit during start up are chosen by the Machine Manufacturer according to the risk assessment. If this assessment was positive, the Manufacturer can ask Autec to modify the behaviour of commands D2-D20, A1-A8, H1-H8 and L1-L8 during start up. -
Page 25: Radio Link Interruption
The Transmitting Unit automatically switches off after 3.5 minutes after the onset of the signal. It is necessary to bring the Machine to a safe state and replace the battery with a charged one (see paragraph 8.7). AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 26: Switching Off The Transmitting Unit
Technical Data Sheet (Automatic Switch Off). Setting or removal of the automatic switch off time (Automatic Switch Off) is done by Autec and decided by the Machine Manufacturer, according to his risk assessment and to the operation and functions he need on the Machine. -
Page 27: Data Feedback" Function
If the Transmitting Unit has an LED array for the "Data Feedback" function, specific Machine conditions are signalled if they are illuminated (by way of example: load limits, limit switch). The signalled conditions depend on the settings chosen by the Machine Manufacturer. AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 28: Cable Control
(by way of example: risk of overturning, of cable dragging by other Machinery), do not cause hazards. In such situations, the User must pull out the belt or open it by unfastening its buckle(s). LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 29: Back-Up Unit
If the Transmitting Unit cannot be used, it can be replaced with a Transmitting Unit called "BACK-UP UNIT"; you need to ask for it from Autec. It is identical to the Unit that cannot be used any more; the only difference is the presence of the plate “BACK-UP UNIT”... -
Page 30: Instructions For The User
Autec Radio Remote Controls. However, instructions given in the following paragraphs do not replace nor complete the instructions that must be provided by the Manufacturer of the Machine where an Autec Radio Remote Control (to which the DJS Transmitting Unit belongs) is installed. - Page 31 - keep at a safe distance from any risk situations originating from the use of the Machine where the Autec Radio Remote Control is installed; - avoid doing anything else while using the Radio Remote Control, such as, by way of example, operate other Machines and/or other devices, eat and/or drink, use communication devices (phone, radio phone, etc.), keyboards, computers, IT devices or AV equipment,...
-
Page 32: Belt Or Harness
Transmitting Unit and use it as described in paragraph 9.3.1 or 9.3.2. Replace the belt or harness if it is damaged or worn. 9.3.1 Waist belt Assembly LIUDJS001_eng-01 AUTEC - Dynamic+ series... - Page 33 If the Transmitting Unit and the belt are used in a different way from the one described in the above mentioned figure, this constitutes improper use and may lead to damage to the Transmitting Unit, to the User, to people and/or property. AUTEC - Dynamic+ series LIUDJS001_eng-01...
- Page 34 Instructions for the User 9.3.2 Shoulder harness Assembly LIUDJS001_eng-01 AUTEC - Dynamic+ series...
- Page 35 If the Transmitting Unit and the belt are used in a different way from the one described in the above mentioned figure, this constitutes improper use and may lead to damage to the Transmitting Unit, to the User, to people and/or property. AUTEC - Dynamic+ series LIUDJS001_eng-01...
-
Page 36: Maintenance
Maintenance Maintenance Instructions for correct Radio Remote Control maintenance are described in the chapter "Maintenance" included in "Part A" of the Instruction Manual. Therefore, please refer to that part of the Manual. LIUDJS001_eng-01 AUTEC - Dynamic+ series... -
Page 37: Malfunction Signalled By The Transmitting Unit
At Radio Remote Control start up, the green LED is off The Transmitting Unit does not Perform the address storage work correctly. procedure (see paragraph 8.16.1). the red LED has TWO long blinks AUTEC - Dynamic+ series LIUDJS001_eng-01... -
Page 38: Bi-Coloured Led [A][B]
Unit has been on for eight minutes. Transmitting Unit and re-start the hours radio remote control. The Transmitting Unit does not Contact the support service of the The LED blinks red work correctly. Machine Manufacturer. ONCE for very long. LIUDJS001_eng-01 AUTEC - Dynamic+ series... - Page 39 11.3. green blinks Whenever the red LED illuminates, the acoustic signal device activates. After this signal, the Transmitting Unit switches off. Press START pushbutton and hold it down until the Transmitting Unit automatically switches off. AUTEC - Dynamic+ series LIUDJS001_eng-01...
-
Page 40: Identifying The Activated Command
You can identify the activated command by observing the red LED [A] long blinks followed by short blinks, as described in the table below. Red LED Green LED Activated command Number of short Number of long blinks blinks LIUDJS001_eng-01 AUTEC - Dynamic+ series... - Page 41 Malfunction signalled by the Transmitting Unit Red LED Green LED Activated command Number of short Number of long blinks blinks Whenever the red LED illuminates, the acoustic signal device activates. AUTEC - Dynamic+ series LIUDJS001_eng-01...
- Page 42 If the red LED shows THREE long blinks and TWO short blinks, this means that the Transmitting Unit detected that command H2 is activated. If the red LED shows FOUR long blinks and ONE short blink, this means that the Transmitting Unit detected that command L1 is activated. LIUDJS001_eng-01 AUTEC - Dynamic+ series...
-
Page 43: Decommissioning And Disposal
Decommissioning and disposal Instructions for correct decommissioning and disposal of Radio Remote Controls are described in chapter "Decommissioning and disposal" in "Part A" of the Instruction Manual. Therefore, please refer to that part of the Manual. AUTEC - Dynamic+ series LIUDJS001_eng-01... - Page 44 Via Pomaroli, 65 - 36030 Caldogno (VI), ITALY PH: +39 0444 901000 - Fax: +39 0444 901011 info@autecsafety.com - www.autecsafety.com MADE IN ITALY...
