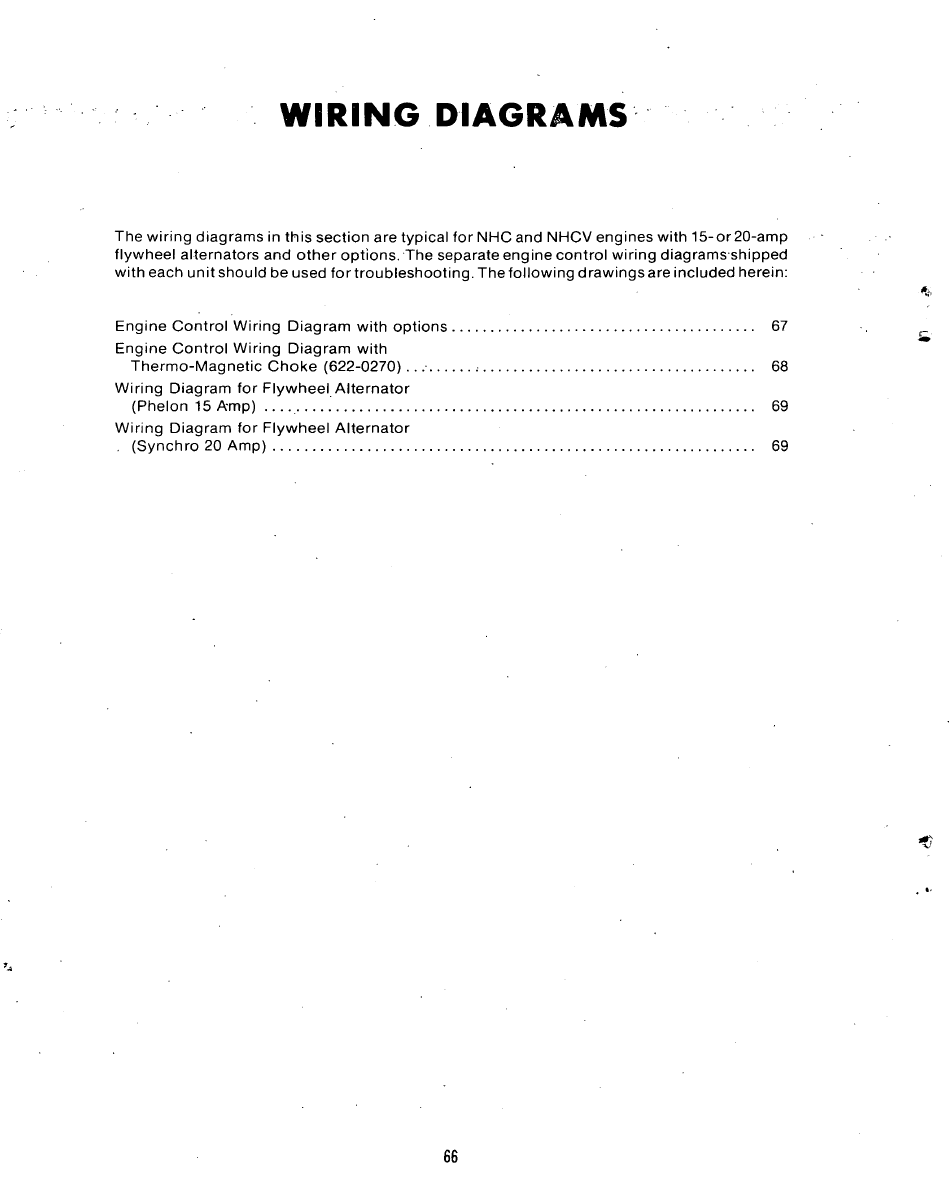

WIRING DIAGRAMS
The wiring diagrams in this section are typical for NHC and NHCV engines with 15-or20-annp
flywheel alternators and other options. The separate engine control wiring diagrams shipped
with each unit should be used for troubleshooting. The following drawings are included herein:
Engine Control Wiring Diagram with options
67
_
Engine Control Wiring Diagram with
Thermo-Magnetic Choke (622-0270)
68
Wiring Diagram for Flywheel Alternator
(Phelon 15 Amp)
69
Wiring Diagram for Flywheel Alternator
. (Synchro 20 Amp)
69
f i
66
