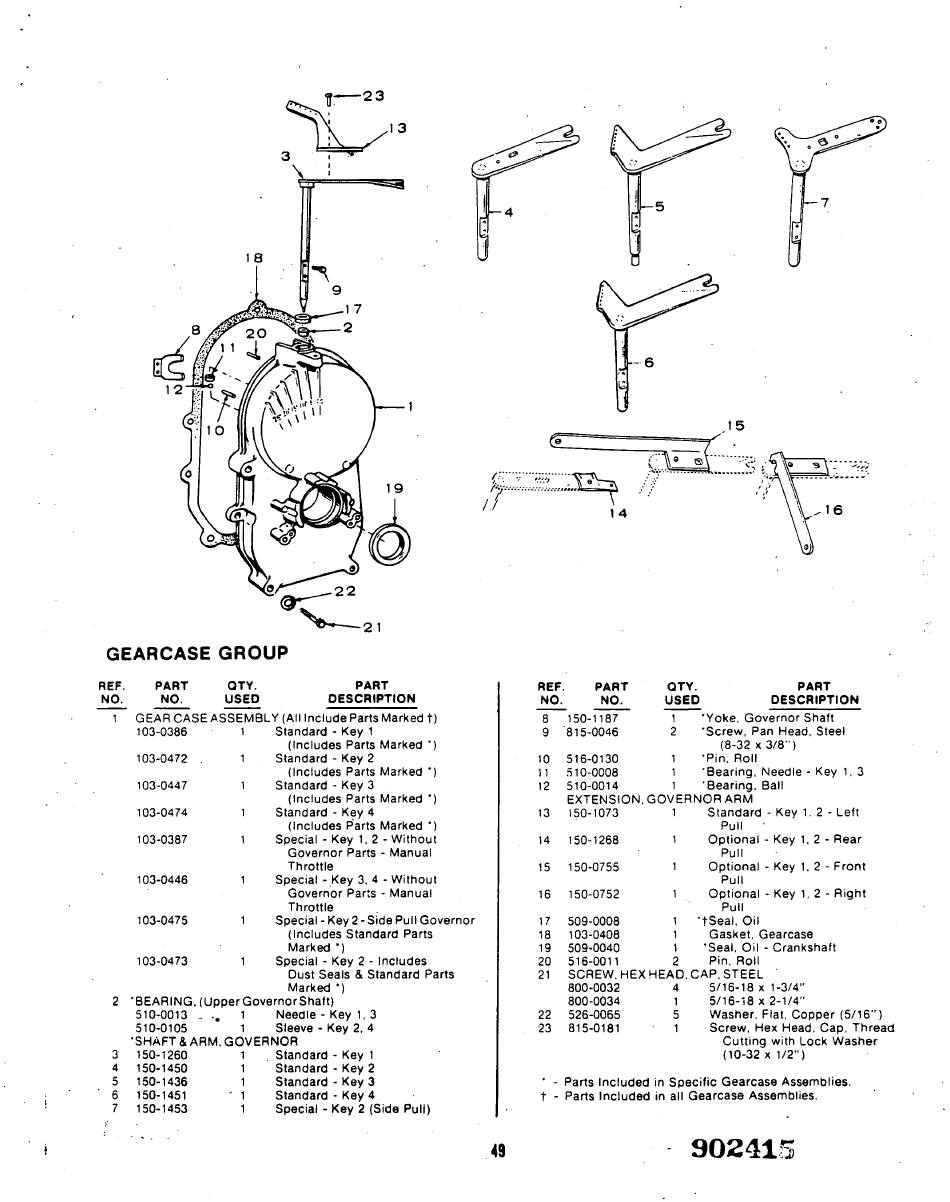

Onan NHC Series Operator's/Service Manual And Parts Catalog page 318

7 — 2 3
GEARCASE GROUP
REF.
NO.
PART
NO.
QTY.
USED
PART
DESCRIPTION
1 GEAR CASE ASSEMBLY (All Include Parts Marked t )
103-0386 1 Standard - Key 1
(Includes Parts Marked ")
103-0472 . 1 Standard - Key 2
(Includes Parts Marked ' )
103-0447 1 Standard - Key 3
(Includes Parts Marked ' )
103-0474 1 Standard - Key 4
(Includes Parts Marked ' )
103-0387 1 Special - Key 1, 2 - Without
Governor Parts - Manual
Throttle
103-0446 1 Special- Key 3. 4 - Without
Governor Parts - Manual
Throttle
103-0475 1 Special-Key2-SidePullGovernor
(Includes Standard Parts
Marked ' )
103-0473 1 Special - Key 2 - Includes
Dust Seals & Standard Parts
Marked ' )
2 'BEARING, (Upper GovernorShaft)
510-0013 .. . . 1 Needle - Key 1, 3
510-0105 1 Sleeve - Key 2,4
'SHAFT & ARM. GOVERNOR
150-1260 1 Standard - Key 1
150-1450 1 Standard - Key 2
150-1436 1 Standard - Key 3
150-1451 ' 1 Standard - Key 4
150-1453 1 Special - Key 2 (Side Pull)
REF.
NO.
PART
NO.
8 150-1187
9 '815-0046
10
11
12
13
17
18
19
20
21
22
23
516-0130
510-0008
510-0014
EXTENSION,
150-1073
14 150-1268
15 150-0755
16 150-0752
QTY. PART
USED DESCRIPTION
1 'Yoke. Governor Shaft
2 "Screw, Pan Head, Steel
(8-32 x 3/8")
1 'Pin. Roll
1 'Bearing, Needle - Key 1, 3
1 'Bearing. Ball
GOVERNOR ARM
1 Standard - Key 1 . 2 - Left
Pull
1 Optional - Key 1 , 2 - Rear
Pull
1 Optional - Key 1 . 2 - Front
Pull
1 Optional - Key 1 , 2 - Right
Pull
1 "tSeal, Oil
1 Gasket, Gearcase
1 'Seal. Oil - Crankshaft
2 Pin, Roll
509-0008
103-0408
509-0040
516-0011 ;
SCREW. HEX HEAD. CAP, STEEL
800-0032 4
800-0034 1
526-0065 5
815-0181 1
5/16-18 x 1-3/4"
5/16-18 x 2-1/4"
Washer, Flat, Copper (5/16")
Screw, Hex Head. Cap. Thread
Cutting with Lock Washer
(10-32 x 1/2")
' - Parts Included in Specific Gearcase Assemblies,
t - Parts Included in all Gearcase Assemblies.
49
902415
