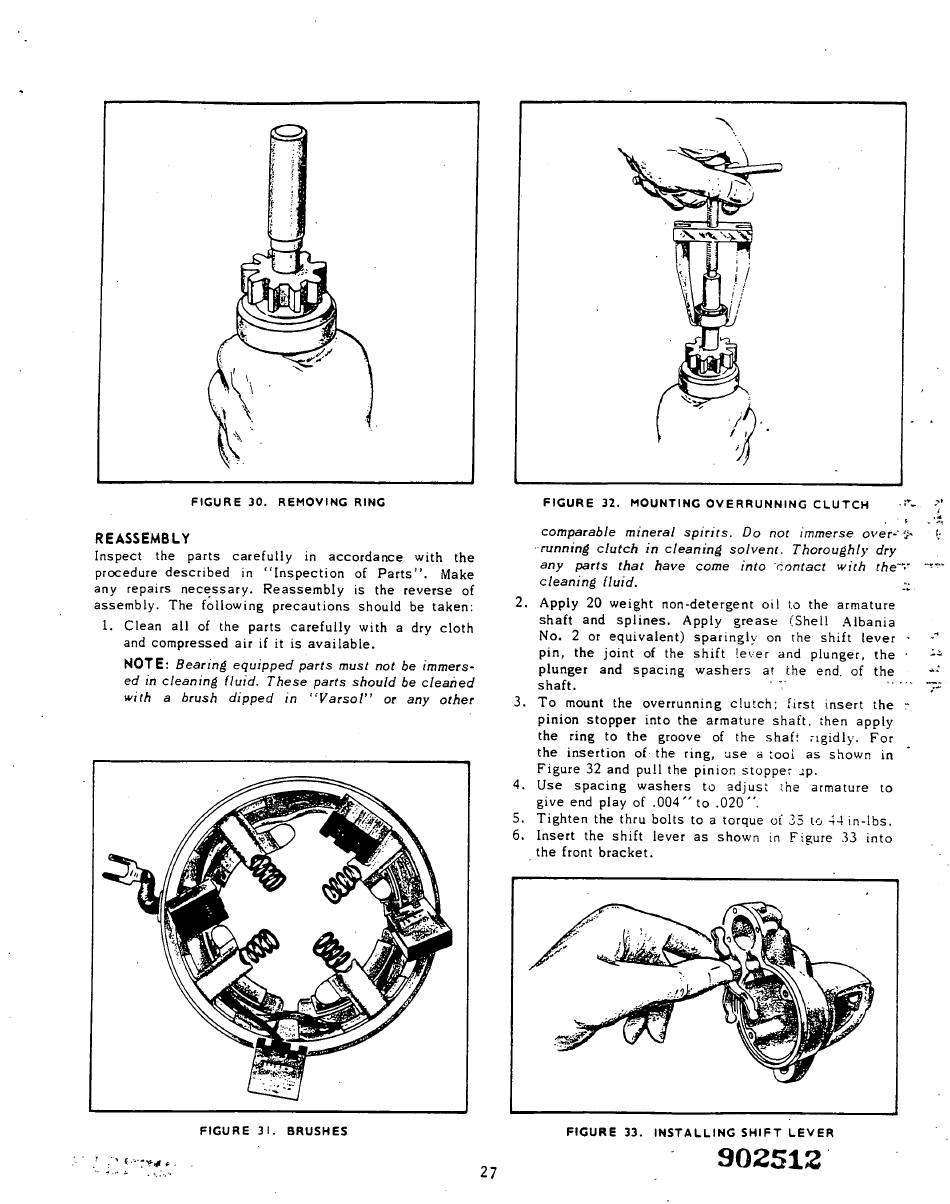

FICURE 30. REMOVING RING
REASSEMBLY
Inspect the parts carefully in accordance with the
procedure described in "Inspection of Parts". Make
any repairs necessary. Reassembly is the reverse of
assembly. The following precautions should be taken:
1. Clean a l l of the parts carefully with a dry cloth
and compressed air if it is available.
NOTE: Bearing equipped parts must not be immers-
ed in cleaning fluid. These parts should be cleaned
with a brush dipped in "Varsol" or any other
FIGURE 3 1 . BRUSHES
FIGURE 32. MOUNTING OVERRUNNING CLUTCH
comparable mineral spirits. Do not immerse over- 'J-
running clutch i n cleaning solvent. Thoroughly dry
any parts that have come into contact with the''"
cleaning lluid. -
2. Apply 20 weight non-detergent o i l to the armature
shaft and splines. Apply grease (Shell Albania
No. 2 or equivalent) sparingly on the shift lever -
pin, the joint of the shift [ever and plunger, the •
plunger and spacing washers at the end. of the
shaft.
3. To mount the overrunning clutch; first insert the r
pinion stopper into the armature shaft, then apply
the ring to the groove of the shaft rigidly. For
the insertion of the ring, use a tool as shown in
Figure 32 and pull the pinion stopper j p .
4. Use spacing washers to adjust the armature to
give end play of . 0 0 4 " t o .020".
5. Tighten the thru bolts to a torque of 35 to 44 in-lbs.
6. Insert the shift lever as shown in Figure 33 into
the front bracket.
FIGURE 33. INSTALLING SHIFT LEVER
27
902512
