Onan NHC Series Operator's/Service Manual And Parts Catalog page 50

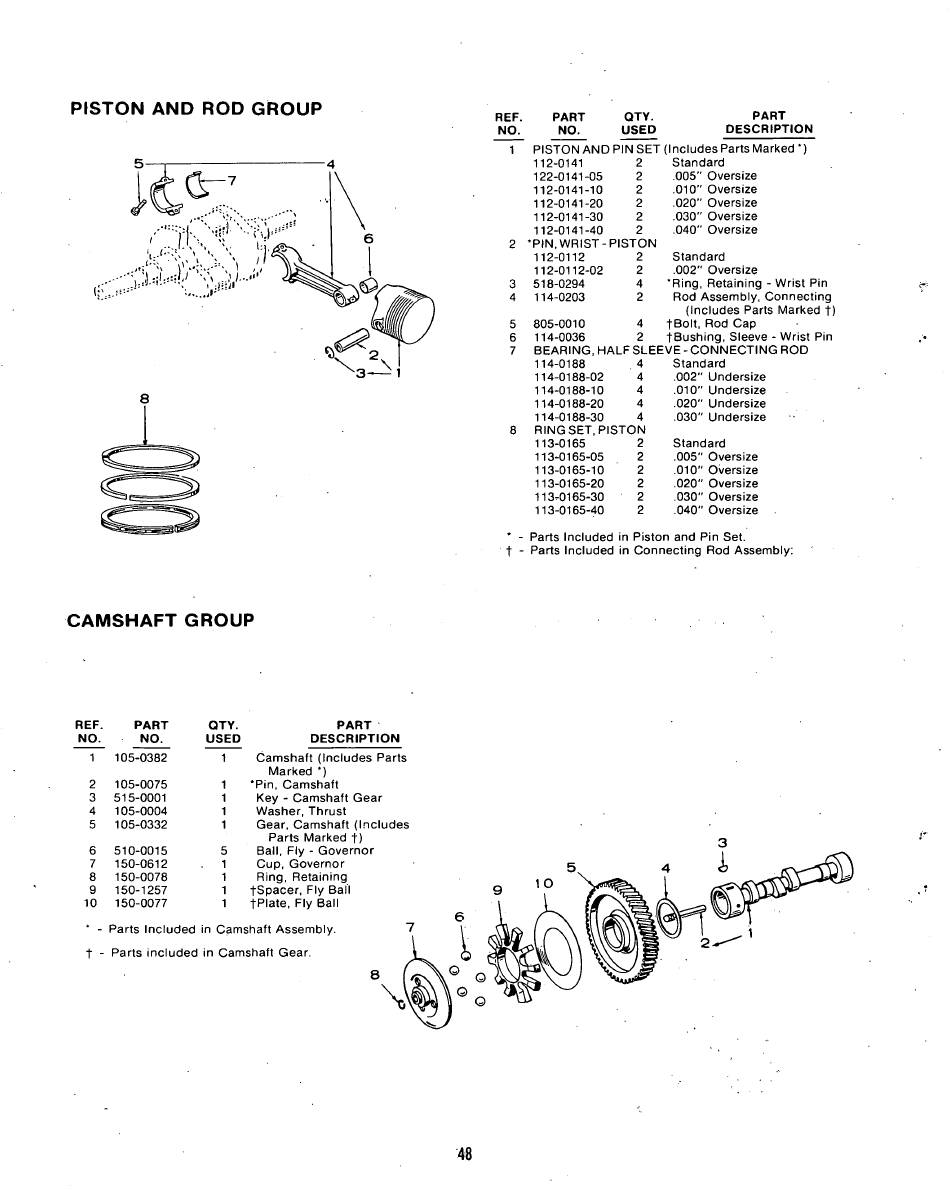

PISTON AND ROD GROUP
REF. PART
QTY.
PART
NO. NO.
USED DESCRIPTION
1
PISTON AND PIN SET (Includes Parts Marked *)
112-0141
2 Standard
122-0141-05 2
.005" Oversize
112-0141-10 2 .010" Oversize
112-0141-20
2 .020" Oversize
112-0141-30 2 .030" Oversize
112-0141-40
2 .040" Oversize
2 *PIN,WRIST- PISTON
112-0112
2 Standard
112-0112-02 2 .002" Oversize
3
518-0294 4 'Ring, Retaining - Wrist Pin
4 114-0203
2 Rod Assembly, Connecting
(Includes Parts Marked t )
5
805-0010 4 fBolt, Rod Cap
6 114-0036 2 fBushing, Sleeve - Wrist Pin
7 BEARING, HALF SLEEVE-CONNECTING ROD
114-0188
4 Standard
114-0188-02
4
.002" Undersize
114-0188-10 4 .010" Undersize
114-0188-20 4 .020" Undersize
114-0188-30
4 .030" Undersize
8
RING SET, PISTON
113-0165 2 Standard
113-0165-05 2 .005" Oversize
113-0165-10 2 .010" Oversize
113-0165-20 2 .020" Oversize
113-0165-30 2 .030" Oversize
113-0165-40
2
.040" Oversize
* - Parts Included in Piston and Pin Set.
t - Parts Included in Connecting Rod Assembly:
CAMSHAFT GROUP
REF. PART QTY. PART
NO. NO. USED
DESCRIPTION
1 105-0382 1 Camshaft (Includes Parts
Marked *)
2
105-0075 1 'Pin, Camshaft
3 515-0001 1 Key - Camshaft Gear
4 105-0004 1 Washer, Thrust
5 105-0332 1 Gear, Camshaft (Includes
Parts Marked t )
6 510-0015 5 Ball, Fly - Governor
7 150-0612 1 Cup, Governor
8 150-0078 1 Ring, Retaining
9 150-1257 1 tSpacer, Fly Ball
10 150-0077 1 fPlate, Fly Ball
* - Parts Included in Camshaft Assembly,
t - Parts included in Camshaft Gear.
