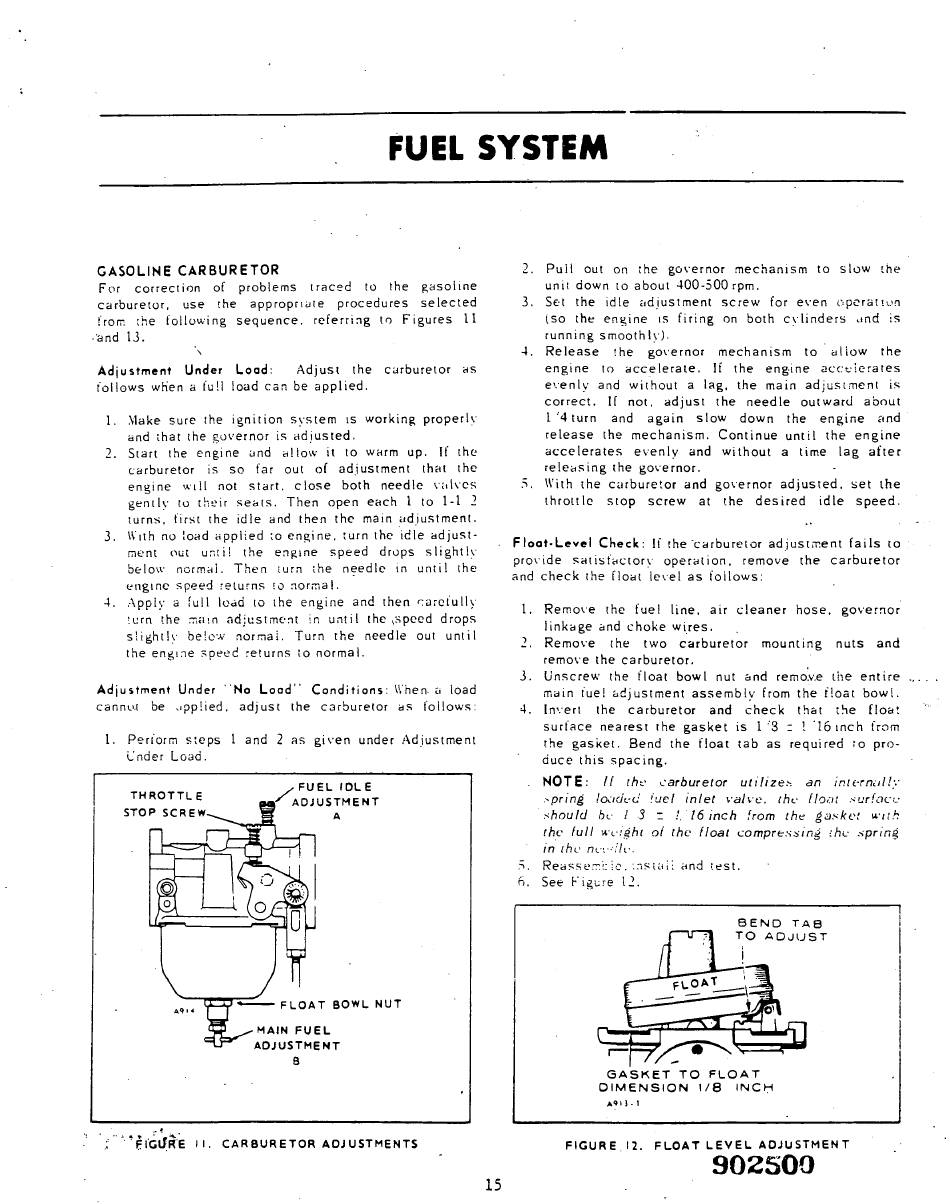

FUEL SYSTEM
GASOLINE CARBURETOR
For
correction of problems traced
to the
gasoline
carburetor,
use
the
appropriate procedures
selected
from the following sequence, referring to Figures 11
• 'and 13.
\
Adjustment Under Load:
Adjust the carburetor
as
follows when a full load can be applied.
1. Make sure the ignition system is working properly
and that the governor is adjusted.
2. Start the engine and allow it to warm up. If the
carburetor
is so far out of adjustment that the
engine will not start, close both needle valves
gently to their seats. Then open each I to 1-1 2
turns, first the idle and then the main adjustment.
3. With no load applied to engine, turn the idle adjust-
ment out until the engine speed drops slightly
below normal. Then turn the needle in until the
engine speed returns to normal.
4. Appiy a full load to the engine and then carefully
•urn the mam adjustment in until the ^speed drops
slightly below normal. Turn the needle out until
the engine speed returns to normal.
Adjustment Under "No Lood" Conditions: When a load
canno.t be applied, adjust the carburetor as follows:
1. Perform steps 1 and 2 as given under Adjustment
Under Load.
T H R O T T L E
STOP SCREW
O
F U E L I D L E
A D J U S T M E N T
A
If
F L O A T B O W L N U T
M A I N F U E L
A D J U S T M E N T
8
' p I G J r t E
I I . C A R B U R E T O R A D J U S T M E N T S
2. Pull out on the governor mechanism to slow the
uni! down to about 400-500 rpm.
3. Set the idle adjustment screw for even operation
(so the engine is firing on both cylinders and is
running smooth ly).
4. Release
the
governor
mechanism
to
allow
the
engine to accelerate.
If the engine accelerates
evenly and without a lag, the main adjustment is
correct. If not. adjust the needle outward about
1 '4 turn
and
again slow down
the
engine
and
release the mechanism. Continue until the engine
accelerates evenly and without a time lag after
releasing the governor.
5. With the carburetor and governor adjusted, set the
throttle
stop screw
at the desired
idle speed.
Float-Level Check: If the carburetor adjustment f a i l s to
provide satisfactory operation, remove the carburetor
and check the float level as follows:
1. Remove the fuel line, air cleaner hose, governor
linkage and choke wires.
2. Remove
the
two carburetor
mounting nuts and
remove the carburetor.
3. Unscrew the float bowl nut and remo.v.e the entire
main fue! adjustment assembly from the float bowl.
4. Invert
the carburetor
and check
that
the float
surface nearest the gasket is 1 '3 : 1 '16 inch from
the gasket. Bend the float tab as required to pro-
duce this spacing.
NOTE:
//
thv
carburetor
utilizes
an
internnHy
spring
!ckia't.-d iuel
inlet
valve,
thv lloai
surface-
should
bt.- ! 3 z !. 16 inch
Irom the gaskc.
wnh
the lull weight of the float compressing
:he spring
in the
ner-iie.
5. Reassemc ic. :nsiail and test.
6. See Figure 12.
B E N D
T A B
T O
A D J U S T
G A S K E T
T O
F L O A T
D I M E N S I O N
1 / 8
I N C H
F I G U R E
12. F L O A T L E V E L
A D J U S T M E N T
15
902500
