PARTS LIST '(RUF)
REF DES. PART NO. QTY
DESCRIPTION
B l
I
STARTER &. S O L E N O I D - E N G I N E '
BTI 1
B A T T E R Y - I S V .
E i , a
2. SPARK PLUG
E 3 |
SENDER - OIL PRESSURE
F l
1 FUSE, 3 5 AMP
. Gl
1 ALTERNATOR
J l
1
CONNECTOR
. M l
1
A M M E T E R
M2 1 .METER - OIL PR ESS URE
SI 1 SWITCH - S T A R T
S 2
1
SWITCH - IGNITION
S 3 1 BREAKER i . CAP. ASSEMBLY
S 4
1 SWITCH - L O P K O
T l 1 COIL - IGNITION
• T B I 1 B L O C K - T E R M I N A L
|
STRIP - MAR KF. R
VRI 1
REGULATOR - VOLTAGE
Wl 1
JUMPER ( S E E N O T E l)
* WHEN USED
, _ CAUTION!
RES 1 4 - REGULATOR MUST BE GROUNDED
THROUGH MOUNTING BOLTS
NOTE:
I. REMOVE JUMPER (Wl), WHEN
AMMETER (Ml) IS USED

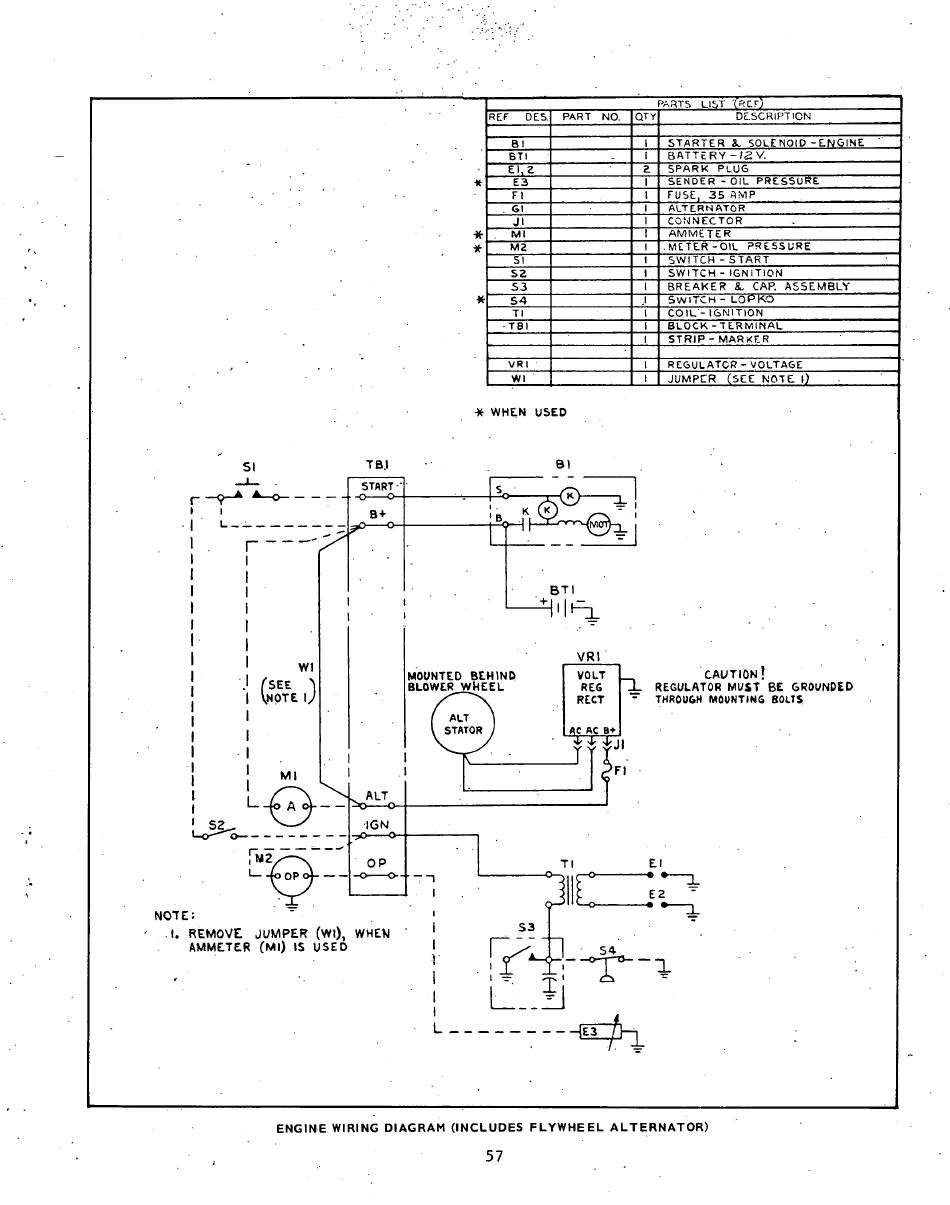

ENGINE WIRING DIAGRAM (INCLUDES F L Y W H E E L A L T E R N A T O R )
