Onan NHC Series Operator's/Service Manual And Parts Catalog page 317

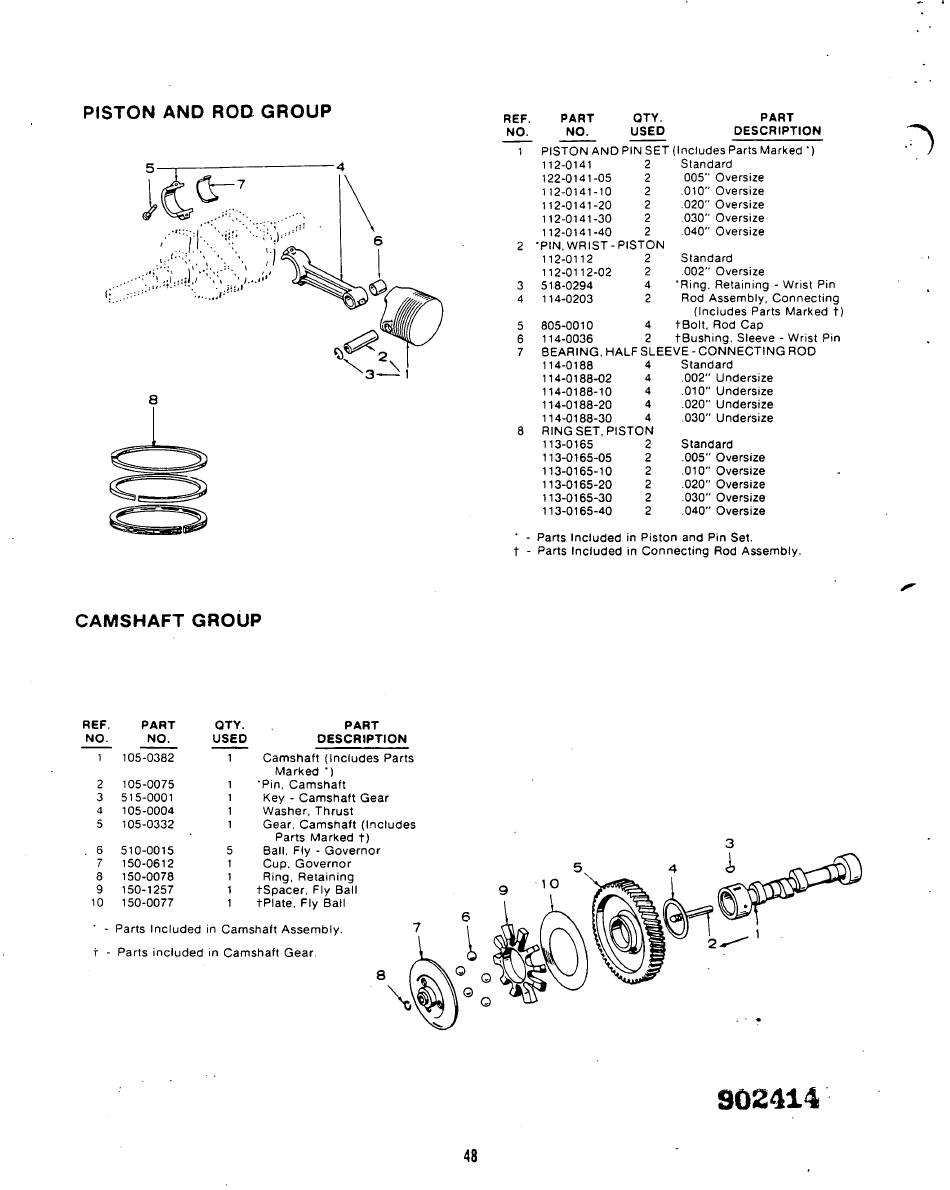

PISTON AND ROD GROUP
REF. PART QTY. PART
NO. NO. USED DESCRIPTION
1 PISTON AND PIN SET (Includes Parts Marked ")
112-0141 2 Standard
122-0141-05 2 005" Oversize
112-0141-10 2 .010" Oversize
112-0141-20 2 .020" Oversize
112-0141-30 2 .030" Oversize
112-0141-40 2 .040" Oversize
2 "PIN.WRIST-PISTON
112-0112 2 Standard
112-0112-02 2 .002" Oversize
518-0294 4 'Ring, Retaining - Wrist Pin
114-0203 2 Rod Assembly, Connecting
(Includes Parts Marked t )
805-0010 4 tBolt, Rod Cap
114-0036 2 tBushing. Sleeve - Wrist Pin
BEARING, HALF SLEEVE -CONNECTING ROD
114-0188
114-0188-02
114-0188-10
114-0188-20
114-0188-30
8 RING SET, PISTON
113-0165
113-0165-05
113-0165-10
113-0165-20
113-0165-30
113-0165-40
Standard
.002" Undersize
.010" Undersize
.020" Undersize
.030" Undersize
Standard
.005" Oversize
.010" Oversize
.020" Oversize
.030" Oversize
.040" Oversize
' - Parts Included in Piston and Pin Set.
t - Parts Included in Connecting Rod Assembly.
CAMSHAFT GROUP
REF. PART QTY. PART
NO. NO. USED
DESCRIPTION
1
105-0382
1
Camshaft (Includes Parts
Marked ')
2 105-0075 1 'Pin. Camshaft
3 515-0001
1 Key - Camshaft Gear
4 105-0004 1 Washer, Thrust
5 105-0332
1
Gear. Camshaft (Includes
Parts Marked t )
. 6 510-0015 5 Ball. Fly - Governor
7 150-0612
1
Cup. Governor
8 150-0078 1 Ring, Retaining
9 150-1257
1
tSpacer. Fly Ball
10 150-0077 1 tPlate. Fly Ball
' - Parts Included in Camshaft Assembly,
t - Parts included in Camshaft Gear.
