Onan NHC Series Operator's/Service Manual And Parts Catalog page 329

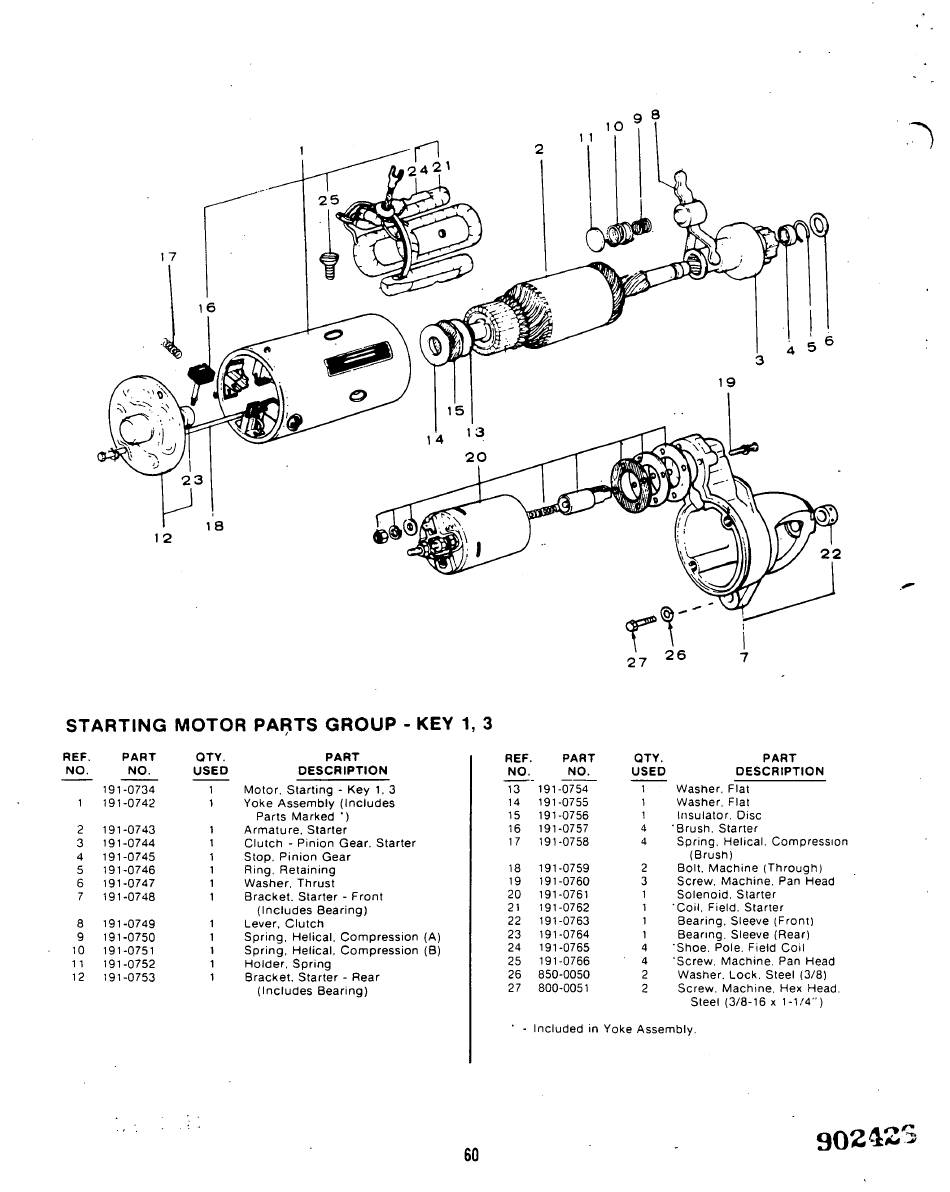

STARTING MOTOR PARTS GROUP - KEY 1, 3
REF. P A R T Q T Y . P A R T
N O .
N O .
U S E D D E S C R I P T I O N
191-0734
1
M o t o r . S t a r t i n g - K e y 1. 3
1
191-0742
1
Y o k e A s s e m b l y ( I n c l u d e s
Parts M a r k e d ' )
2
191-0743
1
A r m a t u r e . S t a r t e r
3 191-0744
1
C l u t c h - P i n i o n G e a r , Starter
4
191-0745
1
S t o p . P i n i o n G e a r
5 191-0746
1 R i n g . R e t a i n i n g
6 191-0747
1
W a s h e r . T h r u s t
7
191-0748
1
B r a c k e t . Starter - F r o n t
( I n c l u d e s B e a r i n g )
8 191-0749
1
Lever, C l u t c h
9 191-0750
1
S p r i n g , H e l i c a l . C o m p r e s s i o n (A)
10 191-0751 1 S p r i n g , H e l i c a l , C o m p r e s s i o n (B)
11
191-0752
1 H o l d e r , S p r i n g
12 191-0753
1
B r a c k e t . Starter - Rear
(Includes Bearing)
REF. P A R T
N O .
N O .
13
191-0754
14 191-0755
15 191-0756
16
191-0757
17
191-0758
18 191-0759
19 191-0760
20 191-0761
21 191-0762
22 191-0763
23
191-0764
24 191-0765
25 191-0766
26 850-0050
27
800-0051
QTY. PART
USED DESCRIPTION
1 Washer. Flat
1 Washer. Flat
1 Insulator. Disc
4 'Brush. Starter
4 Spring, Helical. Compression
(Brush)
2 Bolt. Machine (Through)
3 Screw. Machine. Pan Head
1 Solenoid. Starter
1 "Coil. Field. Starter
1 Bearing. Sleeve (Front)
1 Bearing. Sleeve (Rear)
4 -Shoe. Pole. Field Coil
4 "Screw. Machine. Pan Head
2 Washer. Lock. Steel (3/8)
2 Screw. Machine. Hex Head.
Steel (3/8-16 x 1-1/4")
- Included in Yoke Assembly.
60
90242
