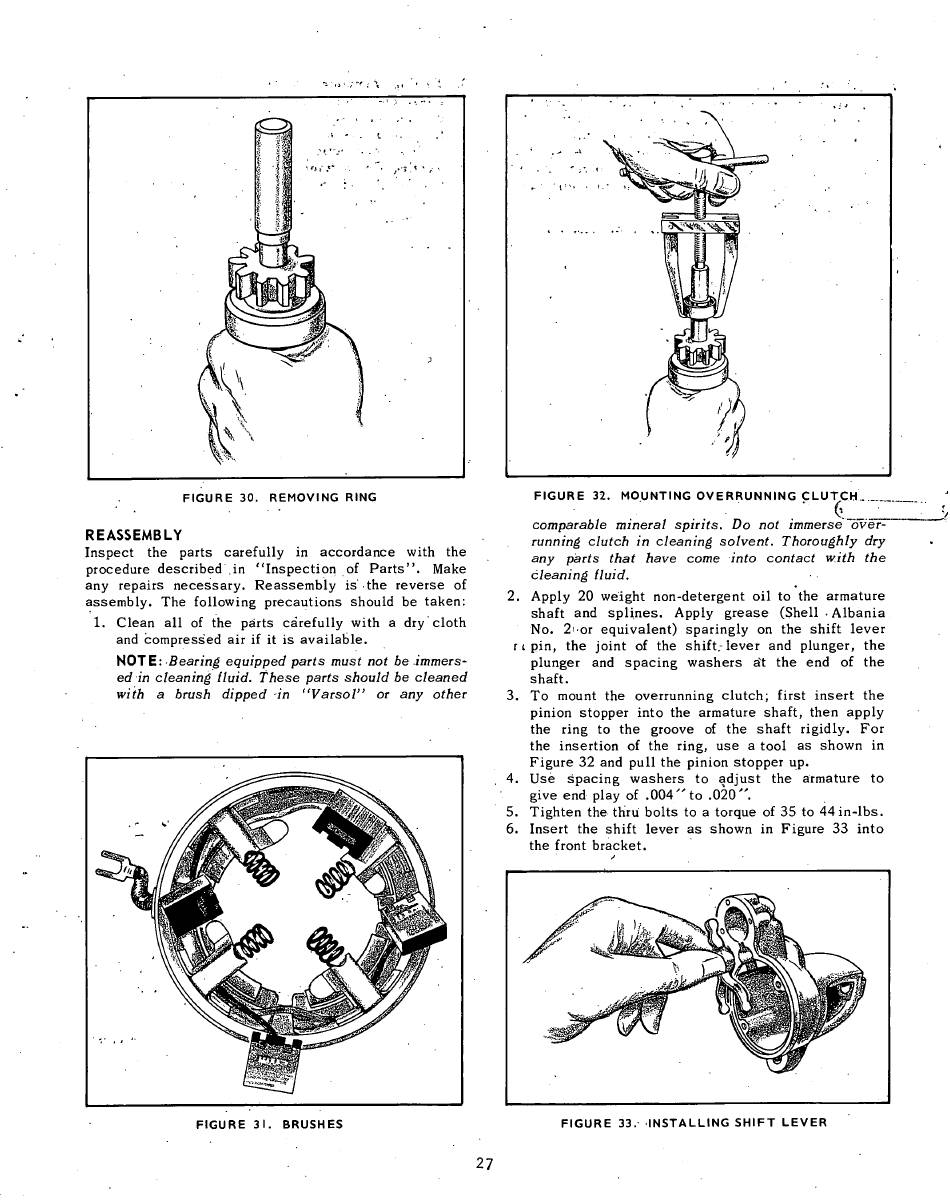

FIGURE 30. REMOVING RING
REASSEMBLY
Inspect the parts carefully in accordance with the
procedure described in "Inspection of Parts". Make
any repairs necessary. Reassembly is the reverse of
assembly. The following precautions should be taken:
1. Clean a l l of the parts carefully with a dry cloth
and compressed air if it is available.
NOTE: Searing equipped parts must not be immers-
ed in cleaning lluid. These parts should be cleaned
with a brush dipped in "Varsol" or any other
FIGURE 32. MOUNTING OVERRUNNING CLUTCH
comparable mineral spirits. Do not immerse"over- '
running clutch in cleaning solvent. Thoroughly dry
any parts that have come into contact with the
cleaning fluid.
2. Apply 20 weight non-detergent o i l to the armature
shaft and splines. Apply grease (Shell . Albania
No. 2! or equivalent) sparingly on the shift lever
r i pin, the joint of the shift.-lever and plunger, the
plunger and spacing washers dt the end of the
shaft.
3. To mount the overrunning clutch; first insert the
pinion stopper into the armature shaft, then apply
the ring to the groove of the shaft rigidly. For
the insertion of the ring, use a tool as shown in
Figure 32 and pull the pinion stopper up.
4. Use spacing washers to adjust the armature to
give end play of . 0 0 4 " t o .020".
5. Tighten the thru bolts to a torque of 35 to 44 i n - l b s .
6. Insert the shift lever as shown in Figure 33 into
the front bracket.
FIGURE 3 1 . BRUSHES
FIGURE 33. INSTALLING SHIFT LEVER
27
