Si04-960

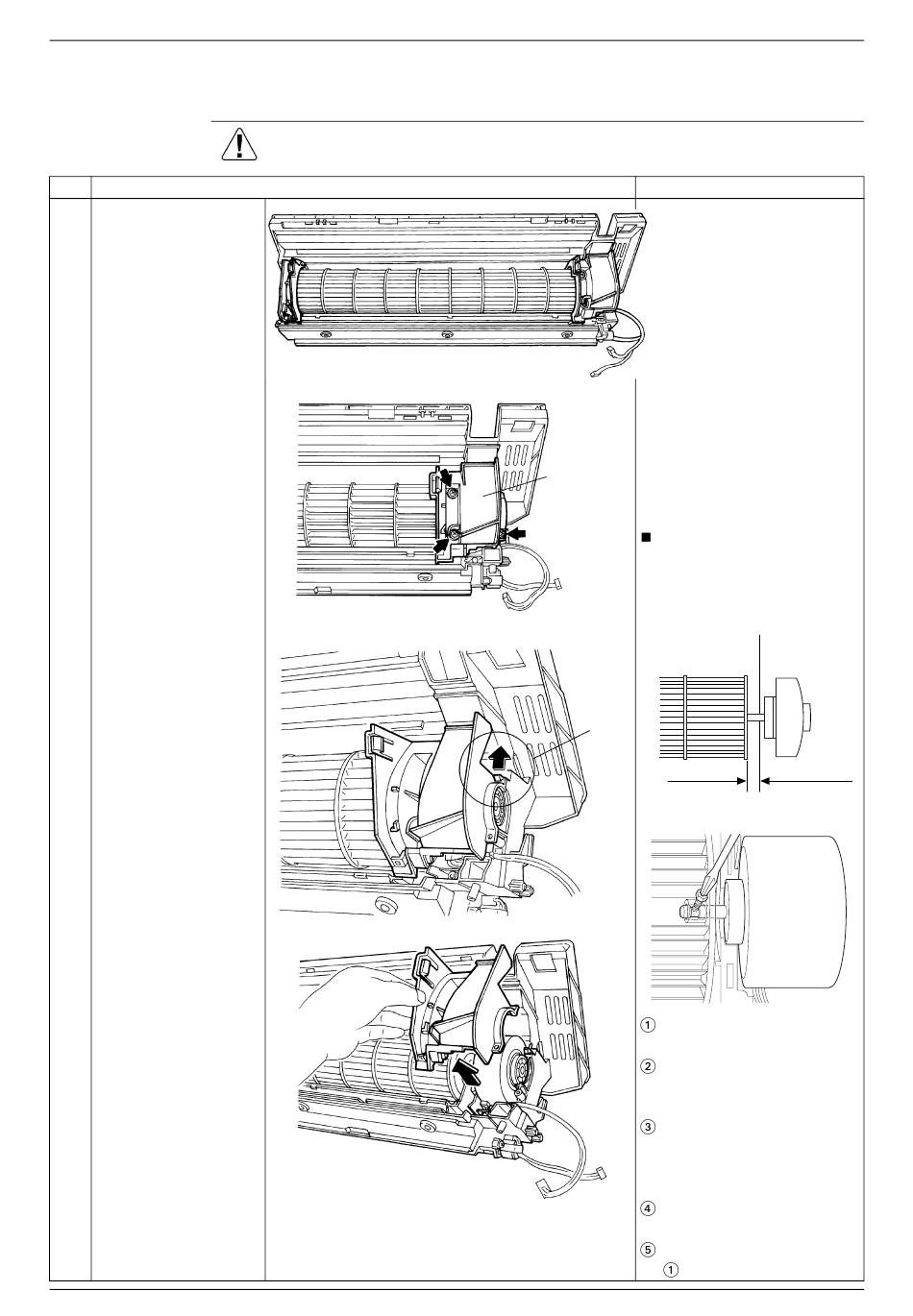

7. Removal of Fan Rotor / Fan Motor

Procedure
Step
1 To remove right side
panel, remove the 3
screws.
2 Disengage the hook
and remove the right
side panel.
Removal Procedure
Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Procedure
Removal of Fan Rotor / Fan Motor
(R2556)
Right side
panel
When reassembling the fan
motor, provide as much as
5mm of play between the
side face of the rotor and the
(R2557)
bottom frame.
Hook
Side face of rotor
(R2558)
Insert the fan motor approx.
5mm
Tighten the screw until it
stops. Then give the screw
one more turn.
Rotate the fan rotor and
confirm the fan motor and
the fan rotor are installed
appropriately.
(R2559)
Tighten the screw
completely if appropriate.
If not appropriate, go back to
.
Points
Side face of
bottom frame
5mm
(R2808)
(R9582)
17
