Detailed Setup Instructions / Oblivion PNP
Getting set up and ready to fly is a quick and simple task, as mostly everything comes pre-built from the
TBS factory. When using TBS equipment, it is plug & play to get ready. Follow these easy steps and you will
be shredding the sky in just a few minutes!
Installing the receiver
You can install any receiver supporting PPM/SBUS/SPEK or CRSF. It is recommended to use CRSF or SBUS
where available for lower latency and best resolution/precision.

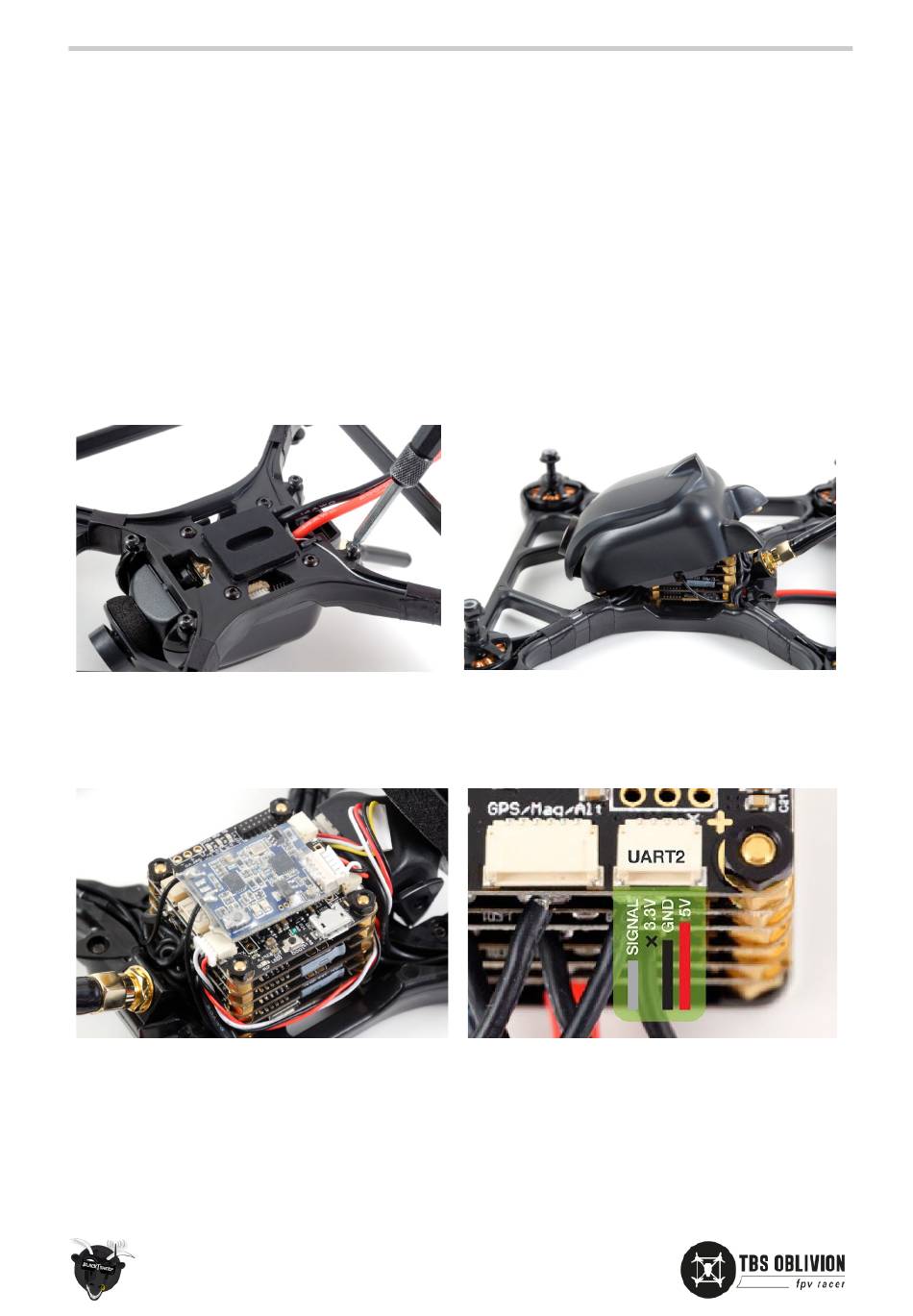

Open the OBLIVION by removing four screws on the bottom side of the frame, and pull up the canopy to
reveal the internals.
For CRSF we recommend UART 1 using the "5V" cable included in the PNP set. For SBUS receivers, we
recommend soldering to the 3 pads marked "SIG", "GND", "5V" near the UART2 socket (see photo below).
Prepare a new custom receiver cable by using a JST Micro SH 1.0 mm 4-Pin lead to interface with your
receiver. Note that the new lead connects to the ​ U ART2 port​ , not UART1 as with the CROSSFIRE Nano RX.
Pin-out:​ R ed = 5V​ ​ B lack = Gnd​ ​ ​ W hite = control signal​ (PPM/SBUS/SPEK)
8
Y ellow ​ = not used ​
