Receiver configuration for Crossfire/CRSF
To set up COLIBRI and CROSSFIRE Nano to use the CRSF control- and telemetry-protocol, you need to
configure the receiver to output the CRSF protocol.
Power on the CROSSFIRE TX and Nano RX, open the CROSSFIRE TX configuration menu, go to the Nano TX
settings and change the channel map for CH1 and CH2 to "CRSF RX" and "CRSF TX".
System calibration
The initial setup of the COLIBRI and CORE PRO requires the FPV video feed to be on channel Band A CH1
5865 MHz. The configuration is done via the CORE PRO "ENTER"-button on the side of the OBLIVION and
R/C radio stick movement as prompted on the OSD screen.
In order to make the OBLIVION recognize the type of the R/C signal (CRSF/PPM/SBUS/SPEK), the COLIBRI
FC has to be switched to the correct protocol. This is initially done by pressing the "ENTER"-button, as
shown in the following pictures, until the correct receiver protocol appears on the OSD.

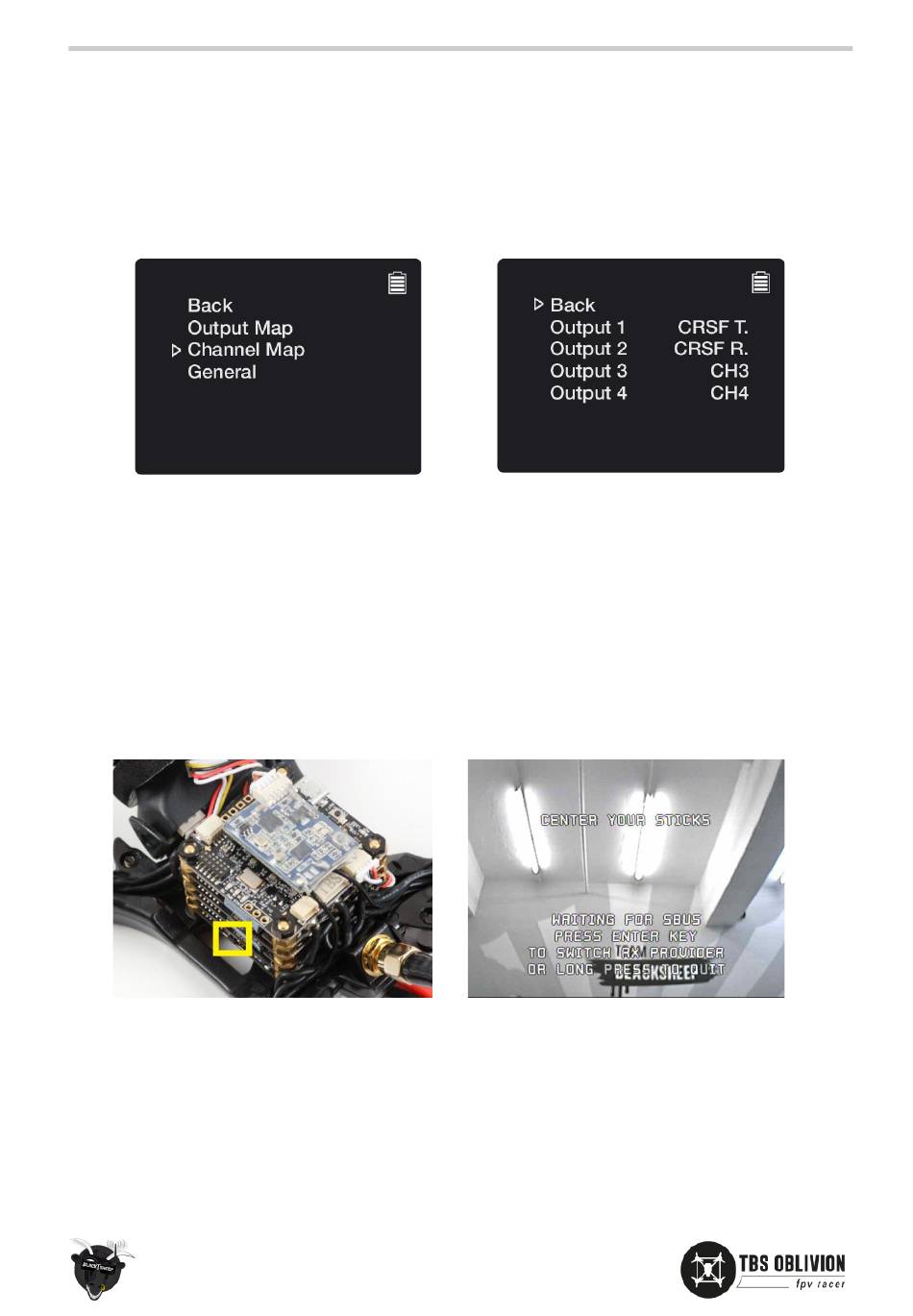

Press the "ENTER"-button on the side of the
OBLIVION (as indicated) to cycle signal
protocols.
Centering your sticks will start the countdown.
If you are not using the currently-active RX
provider (in this case SBUS), push the
ENTER-button of the CORE PRO to cycle
through the available options.
