Further Configuration
Changing settings on the TBS OBLIVION (CORE PRO, POWERCUBE, UNIFY PRO) is all done through the OSD
and R/C radio inputs, using the sticks to navigate the menus and make changes. Further in-depth changes
of the COLIBRI flight controller can be made via the USB-interface.
POWERCUBE manual: ​
●
● CORE PRO manual: ​
UNIFY PRO manual: ​
●
● COLIBRI/BetaFlight wiki: ​
Warning: remove the propellers before setting up the quad for the first time!
To enter and navigating the menu system:
● Configuration menu - both sticks on center position, also throttle
Menu navigation - scroll back and forth using the roll- and pitch-stick
●
● Select/enter change - left press roll- and pitch-stick
OSD Boot up messages
When power is applied, the OSD will engage and show you a boot up summary screen. Verify that the
following devices have been detected:
● TBS CORE PRO V2​ - Responsible for CAM, OSD, PSU, and GPS - binding it all together
BAND A CH:1​ - Current VTX frequency that will broadcast on
●
● SELF TEST - ​ T BS: WHAT DOES IT DO?
● PCUBE C.SENS V2​ - Detected TBS POWERCUBE on-board current sensor on FPVISION board
CROSSFIRE​ - Detected TBS CROSSFIRE RX connected via BST to COLIBRI
●
● COLIBRI FC V3.2​ - Detected TBS COLIBRI Flight Controller on the POWERCUBE stack
BATTERY: 4S BATTERY​ - The battery type (based on voltage) detected
●
Entering OSD configuration menu
When you have a working R/C setup, you can enter the OSD configuration menu using the radio sticks.

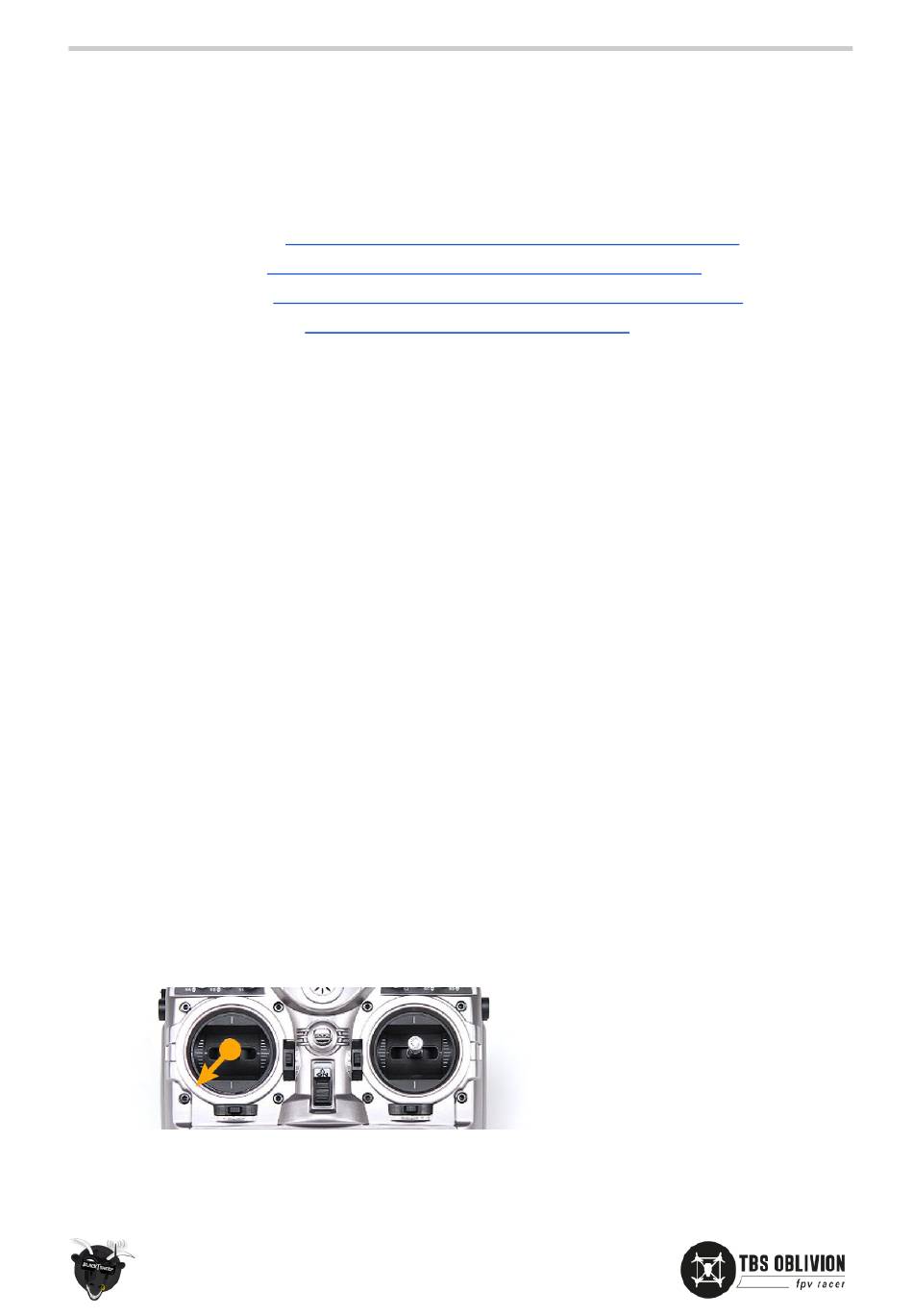

1. To enter the OSD configuration menu, hold the throttle stick down-left for 4 seconds (mode 2)
2. A countdown will let you know that you are about to enter the OSD menu
h ttp://www.team-blacksheep.com/tbs-powercube-manual.pdf
h ttp://www.team-blacksheep.com/tbs-core-pro-manual.pdf
h ttp://www.team-blacksheep.com/tbs-unify-pro-5g8-manual.pdf
h ttps://github.com/betaflight/betaflight/wiki
23
