Quick Start Guide - RTF set
The following steps will get you setup and ready to fly quickly. It is a condensed version intended for
experienced pilots. Each step is elaborated in more detail in this manual if you are new to this.
In the RTF set, you will only need to adjust VTX frequency if necessary, insert the battery and go fly.
Let's go!
1. Plug in the Battery to power on the OBLIVION and TBS Tango, tune into Band A CH1 5865 MHz to
begin the software configuration.
2. To set the video transmitter power, enter the configuration menu (down-left) and go to "CALLSIGN"
and enter your own HAM call sign (required), go back and to "GENERAL" and "VIDEO
TRANSMITTER", make your changes to the desired band, channel and transmission power. If you
do not have a HAM callsign, consider completing a HAM license test in order to qualify for all high
power settings of the video transmitter.
3. Adjust the camera angle if needed, limited adjustments possible with the installed camera mount.
Change camera to the higher angle camera mount if necessary.
4. Be sure to place yourself in a safe distance of the drone. Spin up the propellers by holding throttle
down and arm by pulling Switch C towards you.

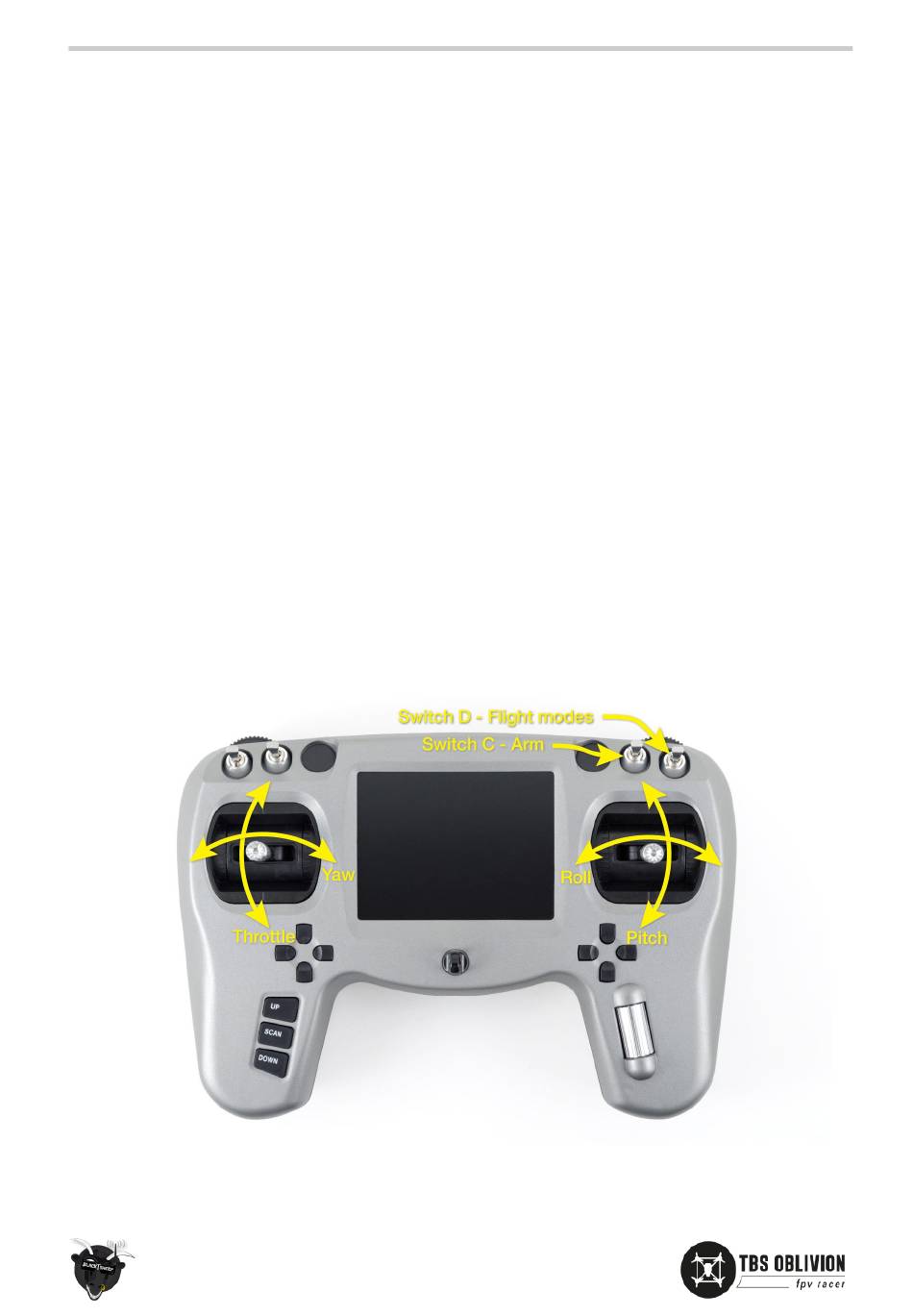

Factory configured remote control overview for the TBS TANGO is shown below. The control layout is the
most common "Mode 2". Arm and flight modes switches are mapped to the top switches.
