6.3

The armrests

The armrests of the Excel G-Modular are foldable backwards for side transfer. To flip back the armrests, you must
follow the steps below.

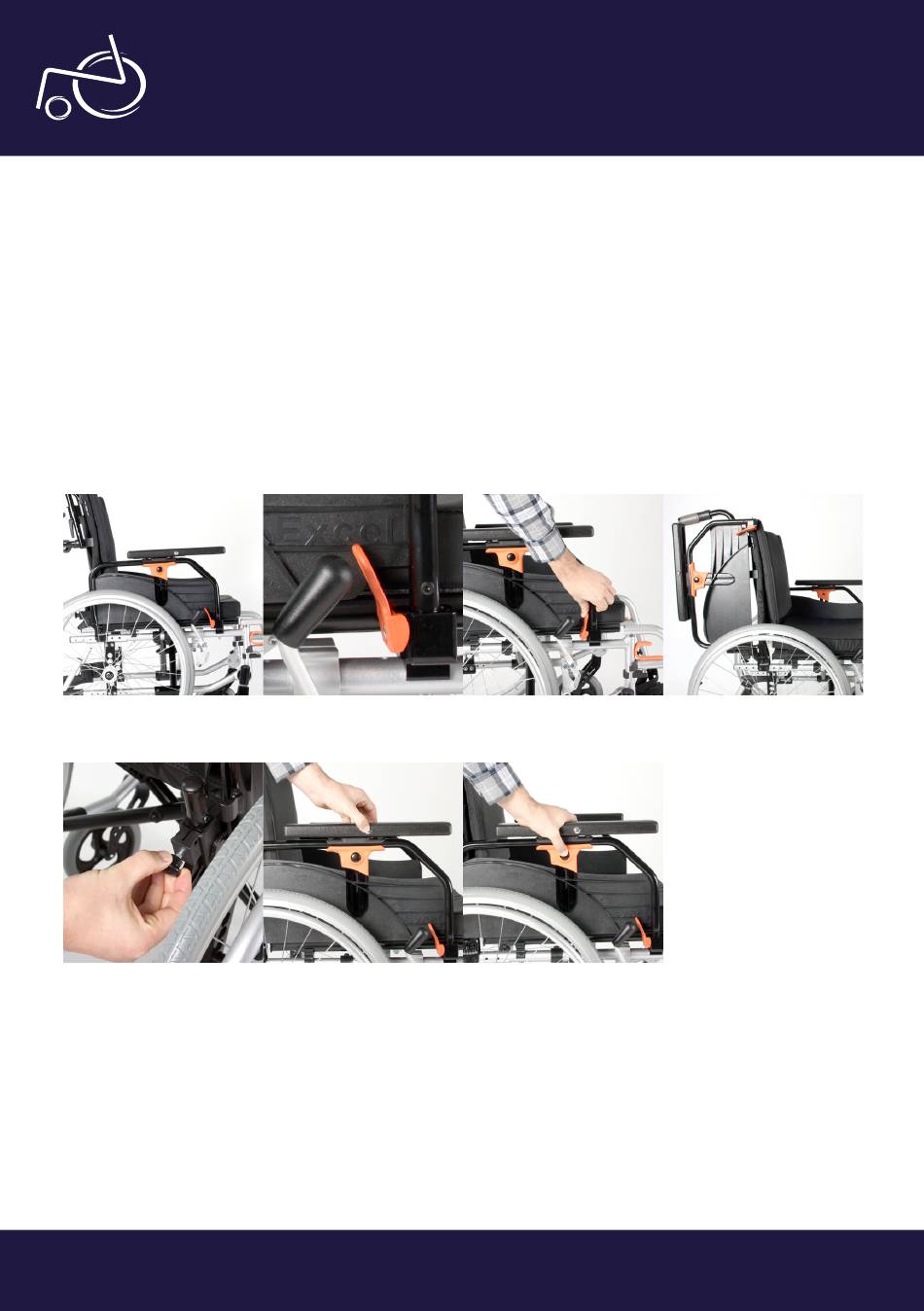

• On photo 12 you can see the armrests of the Excel G-Modular wheelchair;
• To fold down the armrest, engage the orange lever as per photo 13.
• You can now fold the armrests backwards. The armrests cannot be folded further back than shown in photo
15;
• By pulling the lever shown on photo 16, you can remove the armrests from the wheelchair. To place the
armrest back again, push the armrests into the fixing points. When they are in the correct position you will
hear a satisfying click.
• Finally, the armrest is also depth adjustable (photo 17) and height adjustable (photo 18).
EXCEL G-MODULAR | PHOTO 12
EXCEL G-MODULAR | PHOTO 16
Koperslagerij 3 | 4651 SK Steenbergen | The Netherlands | T: +31 (0)167-573020 | E: info@vanosmedical.nl | W: www.vanosmedical.com
User Manual | Excel G-Modular
EXCEL G-MODULAR | PHOTO 13
EXCEL G-MODULAR | PHOTO 17
© 2015 Excel, part of Van Os Medical B.V.
EXCEL G-MODULAR | PHOTO 14
EXCEL G-MODULAR | PHOTO 18
18
EXCEL G-MODULAR | PHOTO 15
