FOOTREST REMOVAL INSTRUCTONS

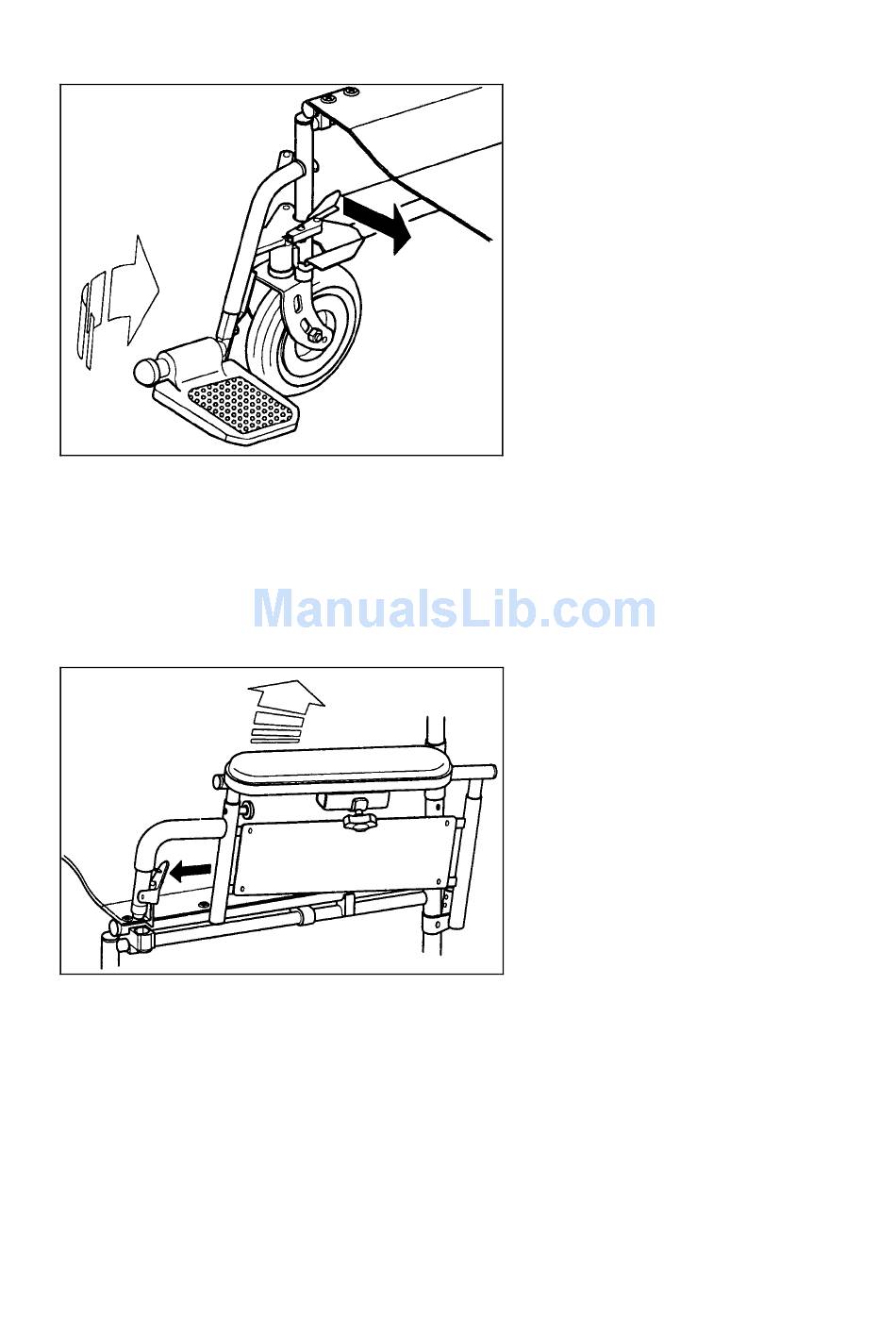

Picture 15
1. Push the spring loaded steel lever (picture 15) inward
2. Swing the footrest assembly slightly outward and lift the complete footrest
assembly clear of the main frame
3. Installation is in reversed order of removal procedure
SIDEPLATE / ARMREST REMOVAL INSTRUCTIONS
Picture 16
1. Simply pull the side panel / armrest upward and push the spring loaded pin at
the front of the side panel (picture 16) downward until it releases the assembly
2. Installation is in reversed order of removal procedure
