Armrests - Excel Mobil User Manual

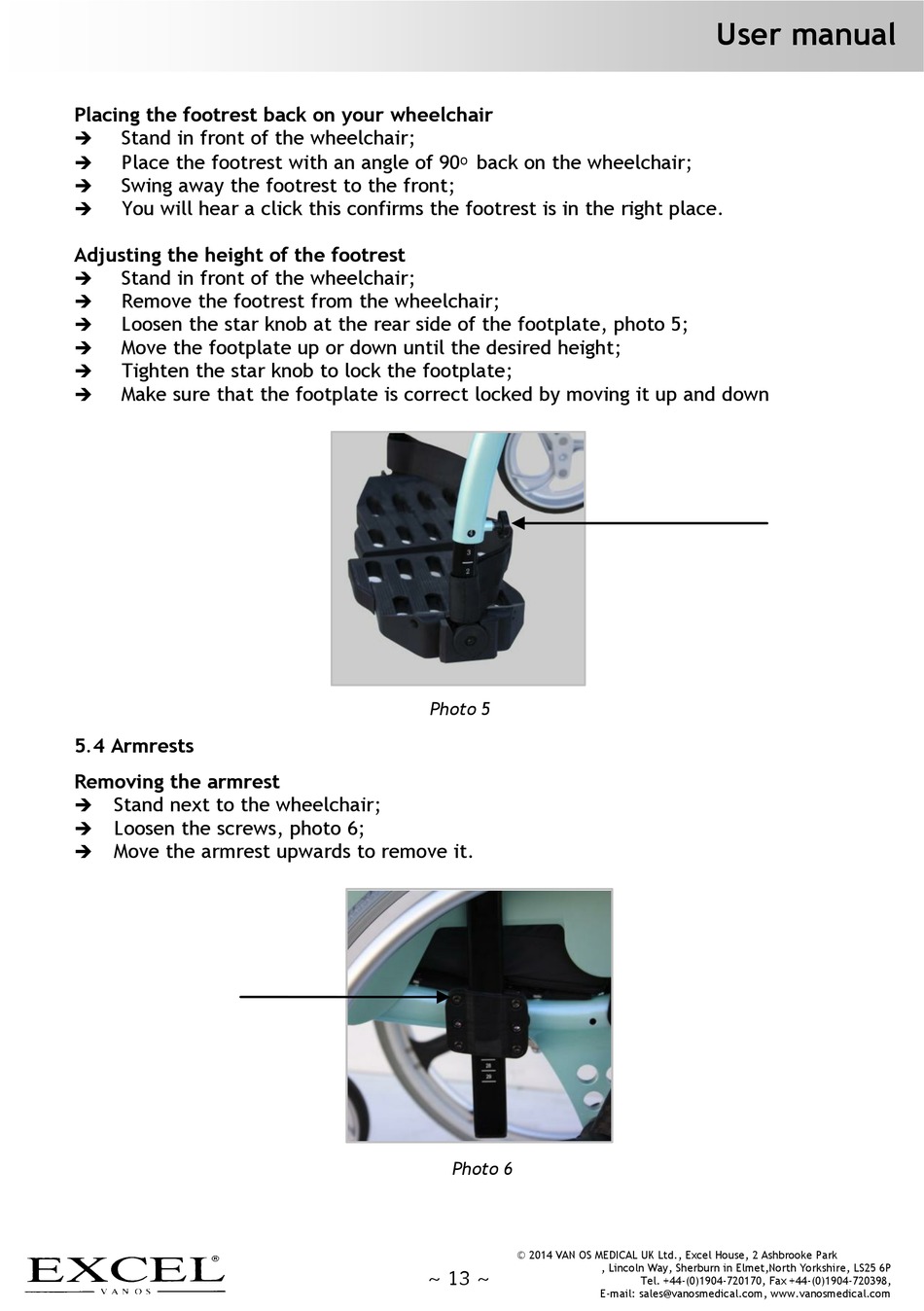

Placing the footrest back on your wheelchair
Stand in front of the wheelchair;

Place the footrest with an angle of 90ᵒ back on the wheelchair;

Swing away the footrest to the front;

You will hear a click this confirms the footrest is in the right place.

Adjusting the height of the footrest
Stand in front of the wheelchair;

Remove the footrest from the wheelchair;

Loosen the star knob at the rear side of the footplate, photo 5;

Move the footplate up or down until the desired height;

Tighten the star knob to lock the footplate;

Make sure that the footplate is correct locked by moving it up and down


5.4 Armrests

Removing the armrest
Stand next to the wheelchair;

Loosen the screws, photo 6;

Move the armrest upwards to remove it.

Photo 5
Photo 6
