The footrests

The leg supports also have foot plates attached. These are both foldable and adjustable in height and angle.
6.7.1

Folding the footrests

You can fold the footrests by following these steps:

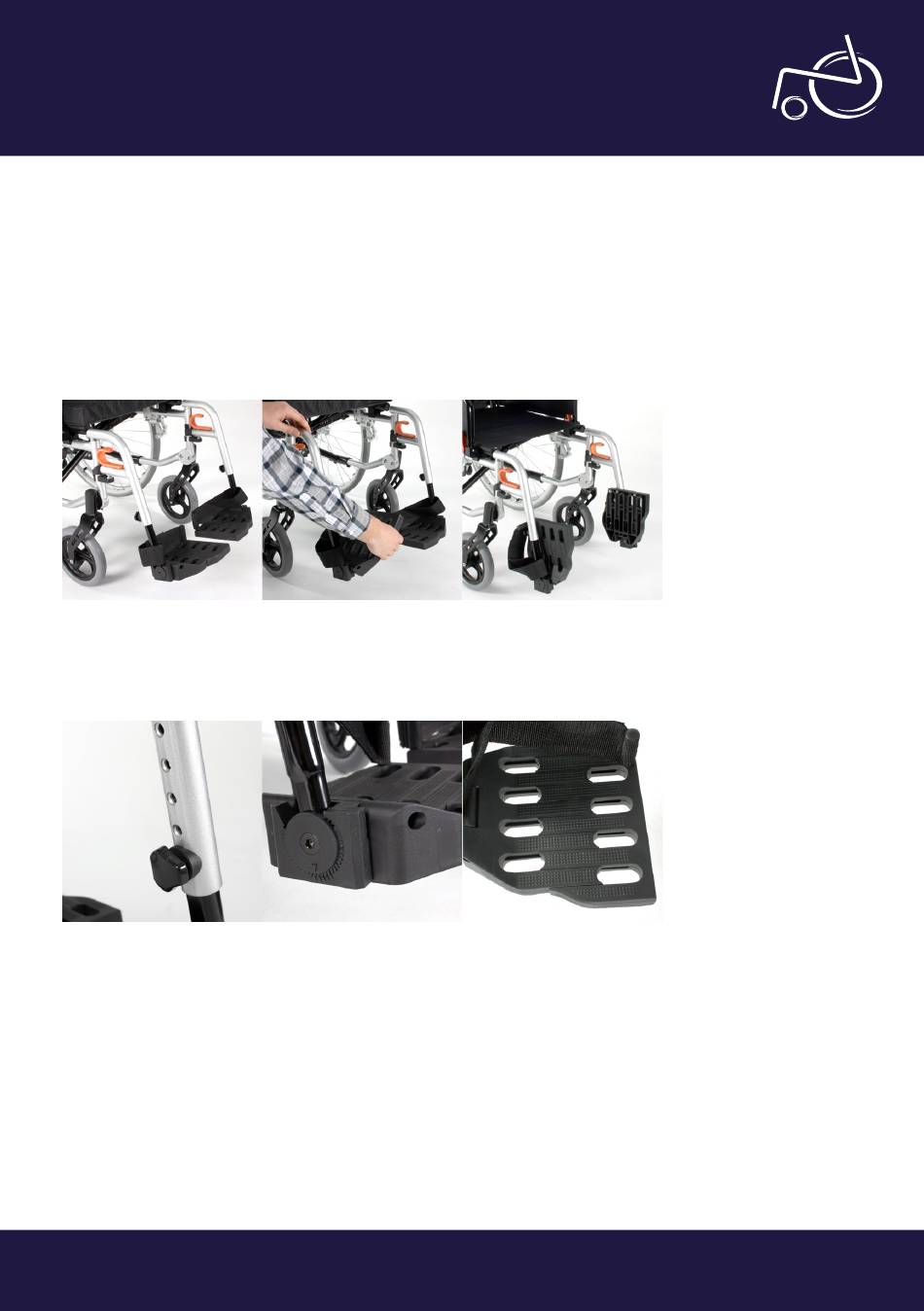

• Photo 27: you can see how the wheelchair looks when the foot rests are not folded;
• You can fold the footrests by pushing the footrests upwards, as shown in photo 28;
• In photo 29 you can see how the leg rests look when the footrests are folded.
EXCEL G-MODULAR | PHOTO 27
6.7.2

Adjusting the height of the footrests

It is also possible to adjust the height of the foot plates. As you can see in picture 30, the footrest has five different
height settings.
EXCEL G-MODULAR | PHOTO 30
6.7.3

Adjusting the angle of the footrests

It is also possible to adjust the angle of the foot plates (photo 31). You can only do this with an Allen key. By
loosening the angle adjustment you can set the angle to your preference.
6.7.4

Adjusting the width of the footrests

It is also possible to adjust the width of the foot plates (photo 32). At the back of the footplate there is an Allen bolt.
Loosen, remove, set the footplate to the desired width and re-tighten.
