Summary of Contents for MeiTrack T633L
- Page 1 MEITRACK T633L User Guide MEITRACK T633L User Guide...
- Page 2 MEITRACK T633L User Guide Change History File Name MEITRACK T633L User Guide Project T633L Creation Date 2019-04-11 Update Date 2021-04-02 Subproject User Guide Total Pages Version V1.3 Confidential External Documentation Copyright © 2021 Meitrack Group All rights reserved. - 2 -...
-
Page 3: Table Of Contents
3 First Use ................................... - 12 - 3.1 Installing the SIM Card ..........................- 12 - 3.2 Configuring Device Parameters by Meitrack Manager ................- 12 - 3.3 Installing GPS and GSM Antennas ....................... - 12 - 3.4 Device Connection Diagram........................- 13 - 3.5 Tracking by Mobile Phone ........................... -
Page 4: Copyright And Disclaimer
2.1 Product Overview The T633L is a brand new 4G vehicle tracker with multiple RS232 and RS485 interfaces. This unit can connect to multiple accessories: RFID card reader, camera and LED Nixie Tube Display. At the same time, the T633L has a CAN interface, which support to monitor the CANBUS data of the vehicle. -
Page 5: Monitoring
2.3.1 Analysis of driver driving behavior The analysis of driving behavior includes Idle Overtime detection, Fatigue Driving detection, Overspeed detection, Harsh Braking detection, Harsh Acceleration detection and Harsh Cornering detection, etc Copyright © 2021 Meitrack Group All rights reserved. - 5 -... -
Page 6: Emergency Alarm Detection
Vehicle Impact Detection Emergency Alarm: The alert results vary according to the device installation, vehicle model and vehicle weigh. After the device has been installed properly, you can use the CB4 command and Meitrack Manager software to adjust the Impact Detection alert values. -
Page 7: Can Interface
LED1_RS485 √ LED2_RS485 All above are the peripheral that T633L already supported. If necessary, Meitrack is capable of customizing any peripherals like cameras, ultrasonic fuel sensor, LED display connected to T633L as long as they support RS232/RS485. 2.3.5 CAN Interface The device can read CAN bus data of a vehicle that supports the FMS protocol. -
Page 8: Specifications
1 RS232 port (8 pins) for connecting to the RFID card reader or ultrasonic fuel sensor 1 extended RS232 port (4 pins) for connecting to the RFID reader or ultrasonic fuel Copyright © 2021 Meitrack Group All rights reserved. - 8 -... -
Page 9: T633L And Accessories

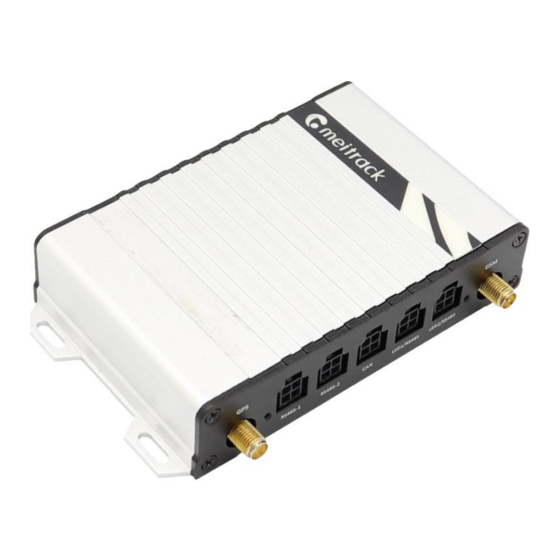

A53 fuel level sensor (voltage sensor) ⚫ A52 digital temperature sensor ⚫ RFID reader ⚫ Buzzer ⚫ Camera ⚫ A81 LED Nixie Tube Display ⚫ Speaker and microphone 2.6 About the T633L 2.6.1 Appearance Copyright © 2021 Meitrack Group All rights reserved. - 9 -... -
Page 10: Led Indicator
Positive charge of the power input, connected to the positive charge of the vehicle battery. Input voltage: 11.4–36 V. 2 (GND) Black Ground wire, connected to the negative charge of the vehicle battery or to the negative terminal. Copyright © 2021 Meitrack Group All rights reserved. - 10 -... - Page 11 Maximum voltage for output open collector (invalid): 40 V Maximum current for output low voltage (valid): 400 mA Connect to a buzzer. The port can be set to positive or negative input 8. Copyright © 2021 Meitrack Group All rights reserved. - 11 -...
-
Page 12: First Use
3.2 Configuring Device Parameters by Meitrack Manager This section describes how to use Meitrack Manager (version 6.0.2.4 or later) to configure the device on a computer. Procedure: Install the USB driver and Meitrack Manager. -
Page 13: Device Connection Diagram
Secure the antenna by using double sided tapes. Note: Do not install the GPS antenna at a metal covered place. 3.4 Device Connection Diagram Copyright © 2021 Meitrack Group All rights reserved. - 13 -... -
Page 14: Tracking By Mobile Phone
Click the SMS link. The device's location will be displayed on Google Maps on your mobile phone. Note: Ensure that the device's SIM card number has subscribed the caller ID service. Otherwise, the tracking function by mobile phone will be unavailable. Copyright © 2021 Meitrack Group All rights reserved. - 14 -... - Page 15 If the value is greater than 12, GPRS reaches the normal level. 0Km/h Indicates the speed. Unit: km/h Indicates the remaining battery power. None http://maps.meigps.c Indicates the map link. None om/?lat=22.513781&l Latitude: 22.513781 ng=114.057183 Longitude: 114.057183 Copyright © 2021 Meitrack Group All rights reserved. - 15 -...
-
Page 16: Ms03 Tracking System
Visit http://ms03.trackingmate.com, enter the user name and password, and log in to the MS03. (Purchase the login account from your provider.) For more information about how to add a tracker, see the MEITRACK GPS Tracking System MS03 User Guide (chapter 4 "Getting Started").
