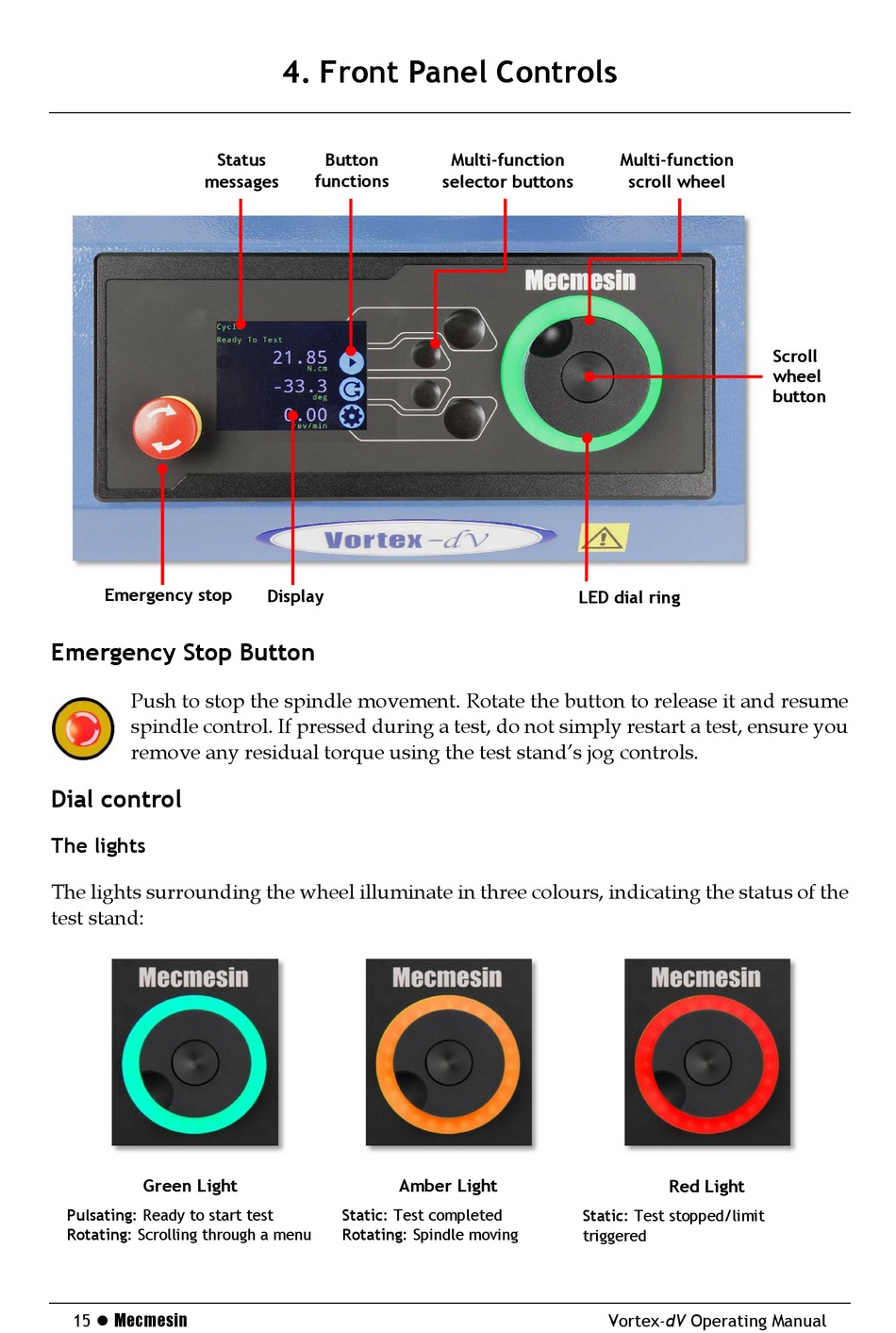

Emergency stop
Emergency Stop Button
Push to stop the spindle movement. Rotate the button to release it and resume
spindle control. If pressed during a test, do not simply restart a test, ensure you
remove any residual torque using the test stand's jog controls.
Dial control
The lights
The lights surrounding the wheel illuminate in three colours, indicating the status of the
test stand:
Green Light
Pulsating: Ready to start test
Rotating: Scrolling through a menu
15 Mecmesin
4. Front Panel Controls
Button
functions
Display
Amber Light
Static: Test completed
Rotating: Spindle moving
Multi-function
selector buttons
LED dial ring
Static: Test stopped/limit
triggered
Vortex-dV Operating Manual
Multi-function
scroll wheel
Scroll
wheel
button
Red Light
