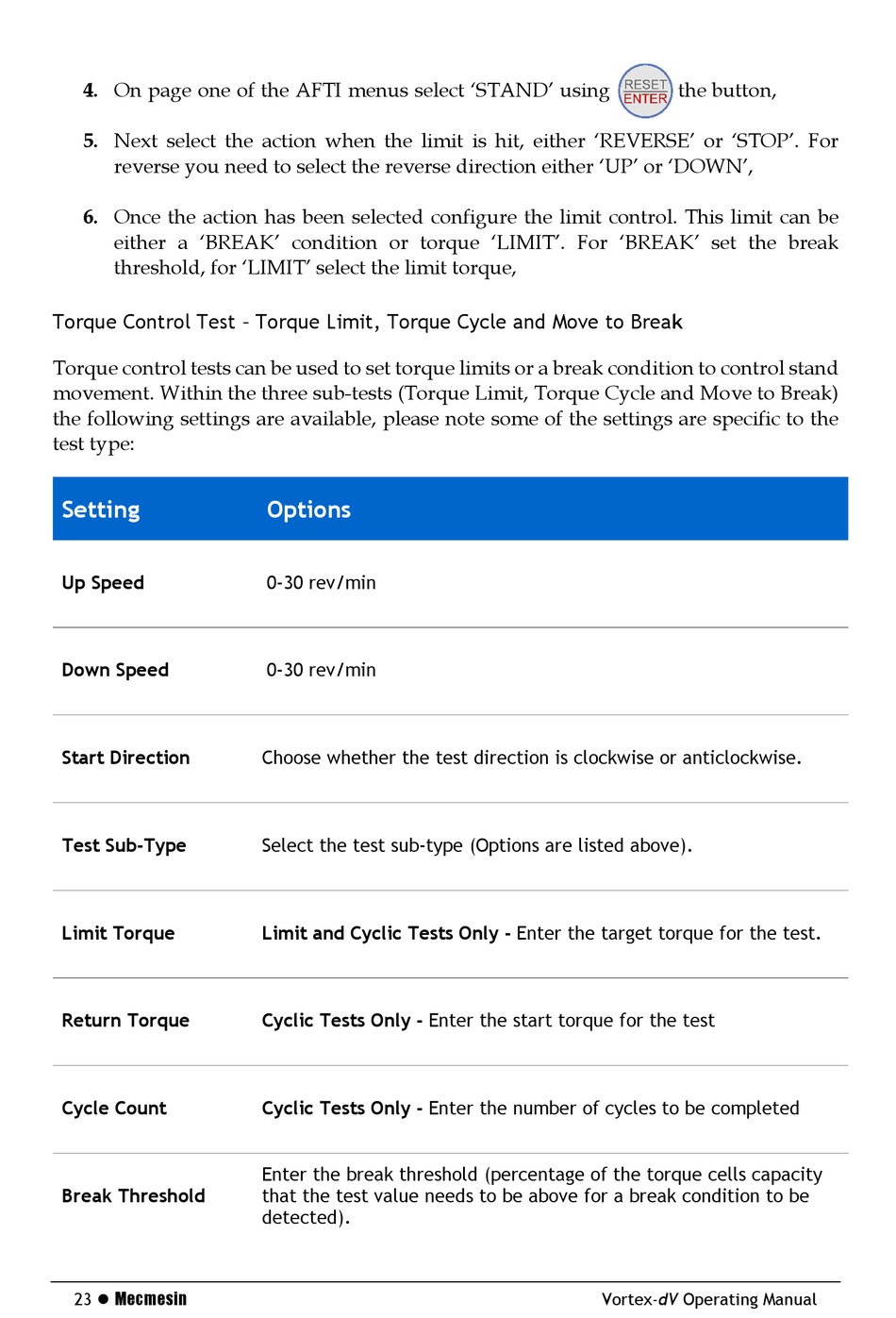

Mecmesin Vortex-dV Operating Manual page 23

4. On page one of the AFTI menus select 'STAND' using
5. Next select the action when the limit is hit, either 'REVERSE' or 'STOP'. For
reverse you need to select the reverse direction either 'UP' or 'DOWN',
6. Once the action has been selected configure the limit control. This limit can be
either a 'BREAK' condition or torque 'LIMIT'. For 'BREAK' set the break
threshold, for 'LIMIT' select the limit torque,
Torque Control Test – Torque Limit, Torque Cycle and Move to Break
Torque control tests can be used to set torque limits or a break condition to control stand
movement. Within the three sub-tests (Torque Limit, Torque Cycle and Move to Break)
the following settings are available, please note some of the settings are specific to the
test type:
Setting
Up Speed
Down Speed
Start Direction
Test Sub-Type
Limit Torque
Return Torque
Cycle Count
Break Threshold
23  Mecmesin
Options
0-30 rev/min
0-30 rev/min
Choose whether the test direction is clockwise or anticlockwise.
Select the test sub-type (Options are listed above).
Limit and Cyclic Tests Only - Enter the target torque for the test.
Cyclic Tests Only - Enter the start torque for the test
Cyclic Tests Only - Enter the number of cycles to be completed
Enter the break threshold (percentage of the torque cells capacity
that the test value needs to be above for a break condition to be
detected).
