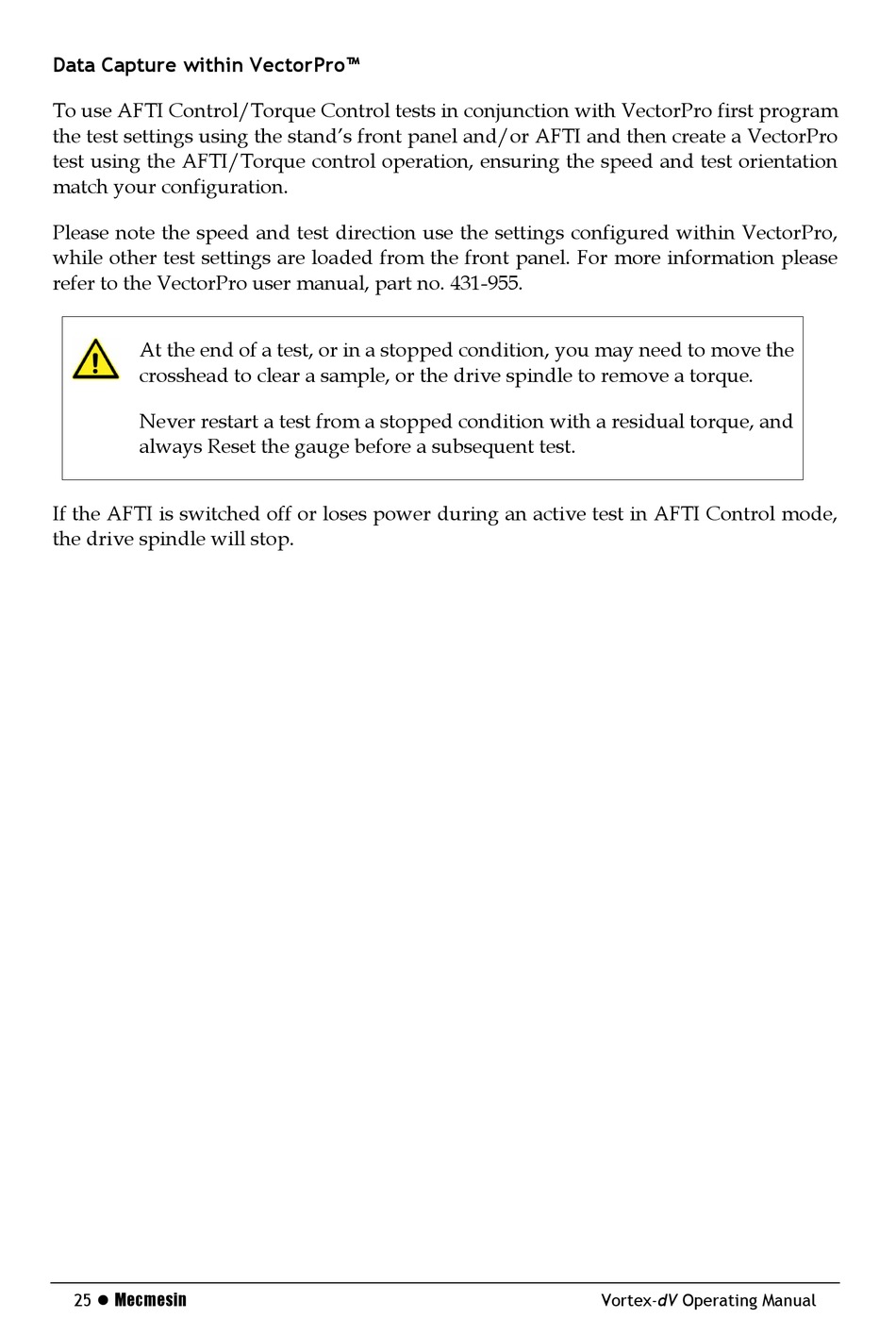

Mecmesin Vortex-dV Operating Manual page 25

Data Capture within VectorPro™
To use AFTI Control/Torque Control tests in conjunction with VectorPro first program
the test settings using the stand's front panel and/or AFTI and then create a VectorPro
test using the AFTI/Torque control operation, ensuring the speed and test orientation
match your configuration.
Please note the speed and test direction use the settings configured within VectorPro,
while other test settings are loaded from the front panel. For more information please
refer to the VectorPro user manual, part no. 431-955.
At the end of a test, or in a stopped condition, you may need to move the
crosshead to clear a sample, or the drive spindle to remove a torque.
Never restart a test from a stopped condition with a residual torque, and
always Reset the gauge before a subsequent test.
If the AFTI is switched off or loses power during an active test in AFTI Control mode,
the drive spindle will stop.
25  Mecmesin
Vortex-dV Operating Manual
