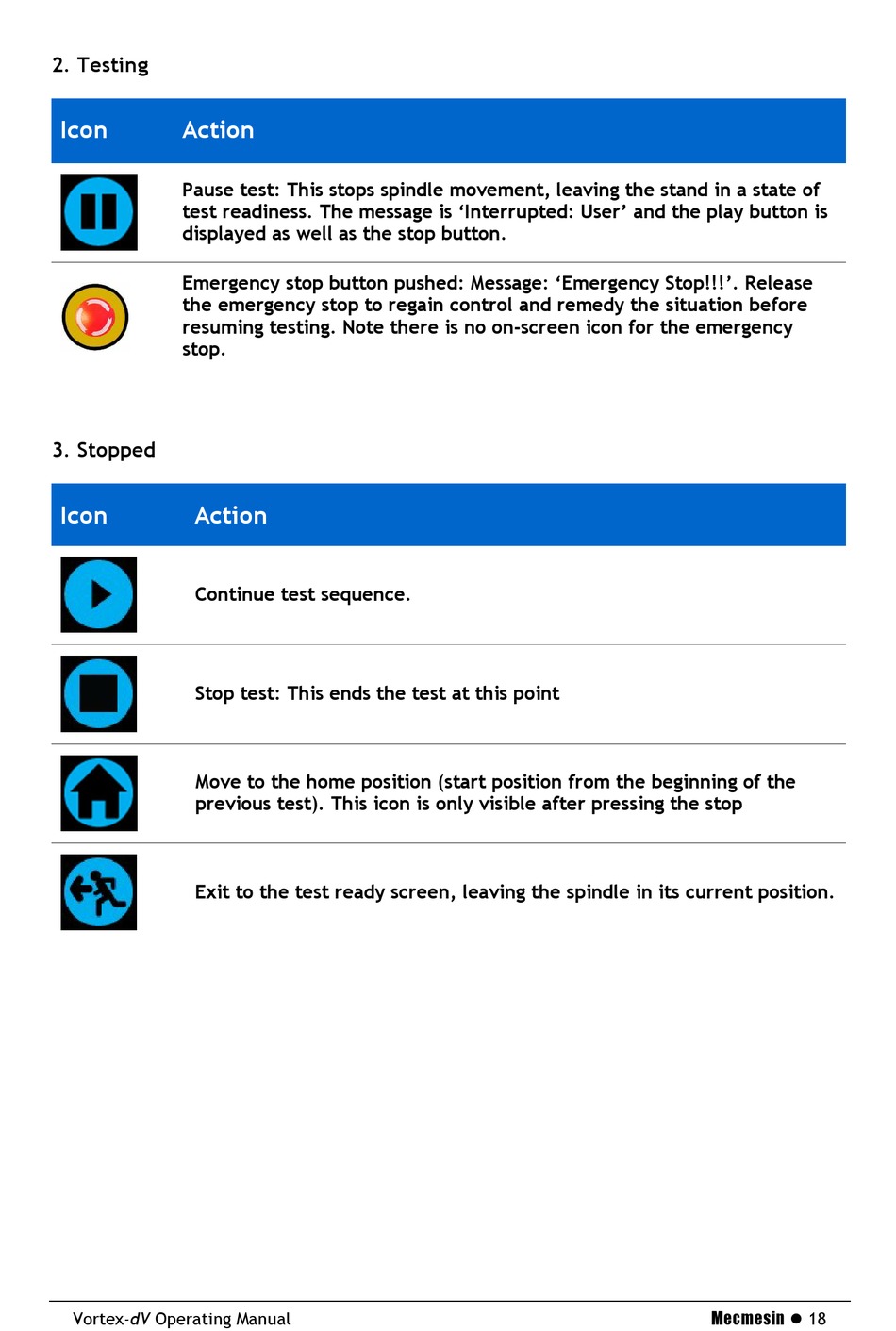

Mecmesin Vortex-dV Operating Manual page 18

2. Testing
Icon Action
Pause test: This stops spindle movement, leaving the stand in a state of
test readiness. The message is 'Interrupted: User' and the play button is
displayed as well as the stop button.
Emergency stop button pushed: Message: 'Emergency Stop!!!'. Release
the emergency stop to regain control and remedy the situation before
resuming testing. Note there is no on-screen icon for the emergency
stop.
3. Stopped
Icon Action
Continue test sequence.
Stop test: This ends the test at this point
Move to the home position (start position from the beginning of the
previous test). This icon is only visible after pressing the stop
Exit to the test ready screen, leaving the spindle in its current position.
Vortex-dV Operating Manual
Mecmesin  18
