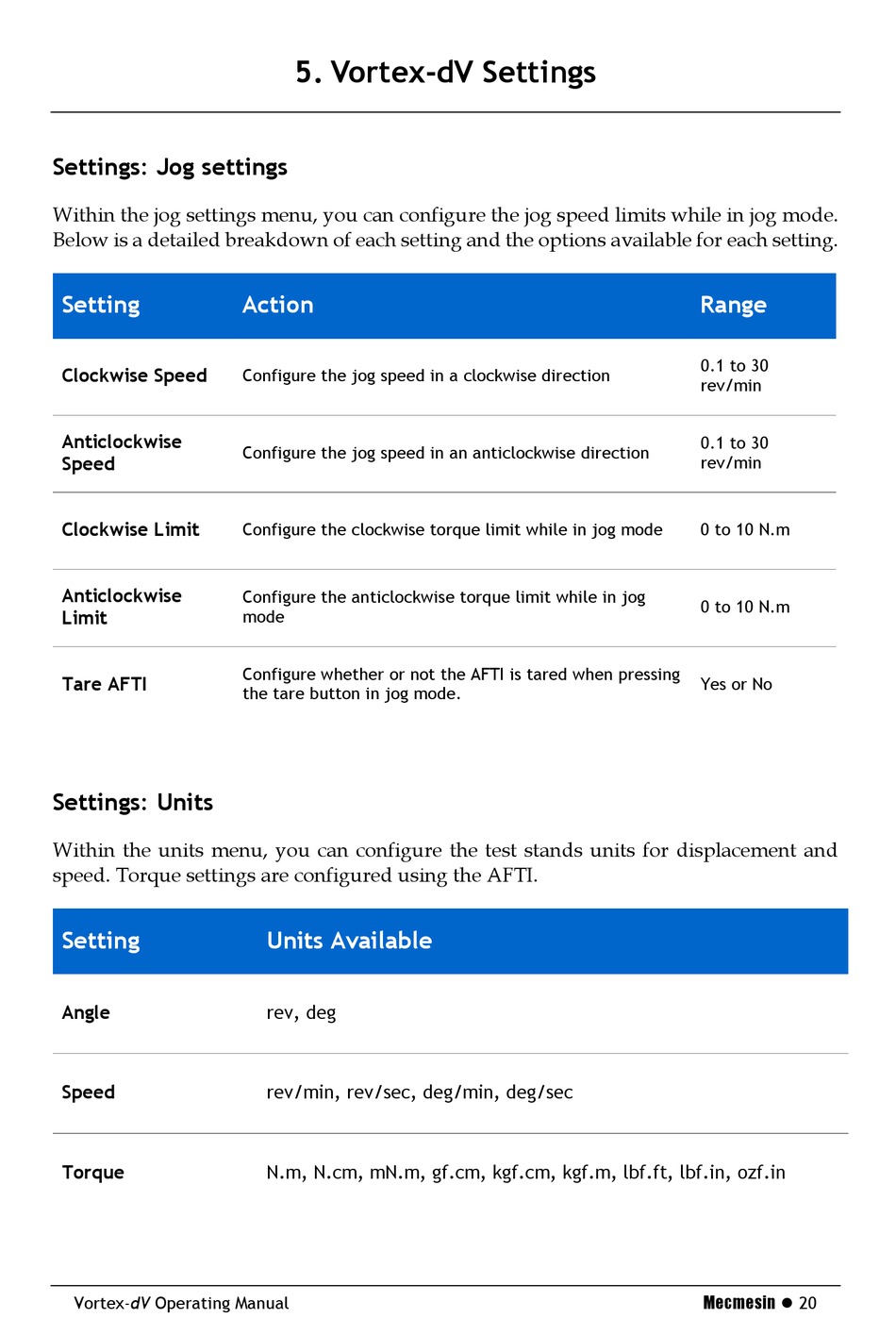

Settings: Jog settings

Within the jog settings menu, you can configure the jog speed limits while in jog mode.
Below is a detailed breakdown of each setting and the options available for each setting.
Setting
Clockwise Speed
Anticlockwise
Speed
Clockwise Limit
Anticlockwise
Limit
Tare AFTI

Settings: Units

Within the units menu, you can configure the test stands units for displacement and
speed. Torque settings are configured using the AFTI.
Setting
Angle
Speed
Torque
Vortex-dV Operating Manual

5. Vortex-dV Settings

Action
Configure the jog speed in a clockwise direction
Configure the jog speed in an anticlockwise direction
Configure the clockwise torque limit while in jog mode
Configure the anticlockwise torque limit while in jog
mode
Configure whether or not the AFTI is tared when pressing
the tare button in jog mode.
Units Available
rev, deg
rev/min, rev/sec, deg/min, deg/sec
N.m, N.cm, mN.m, gf.cm, kgf.cm, kgf.m, lbf.ft, lbf.in, ozf.in
Range
0.1 to 30
rev/min
0.1 to 30
rev/min
0 to 10 N.m
0 to 10 N.m
Yes or No
Mecmesin  20
