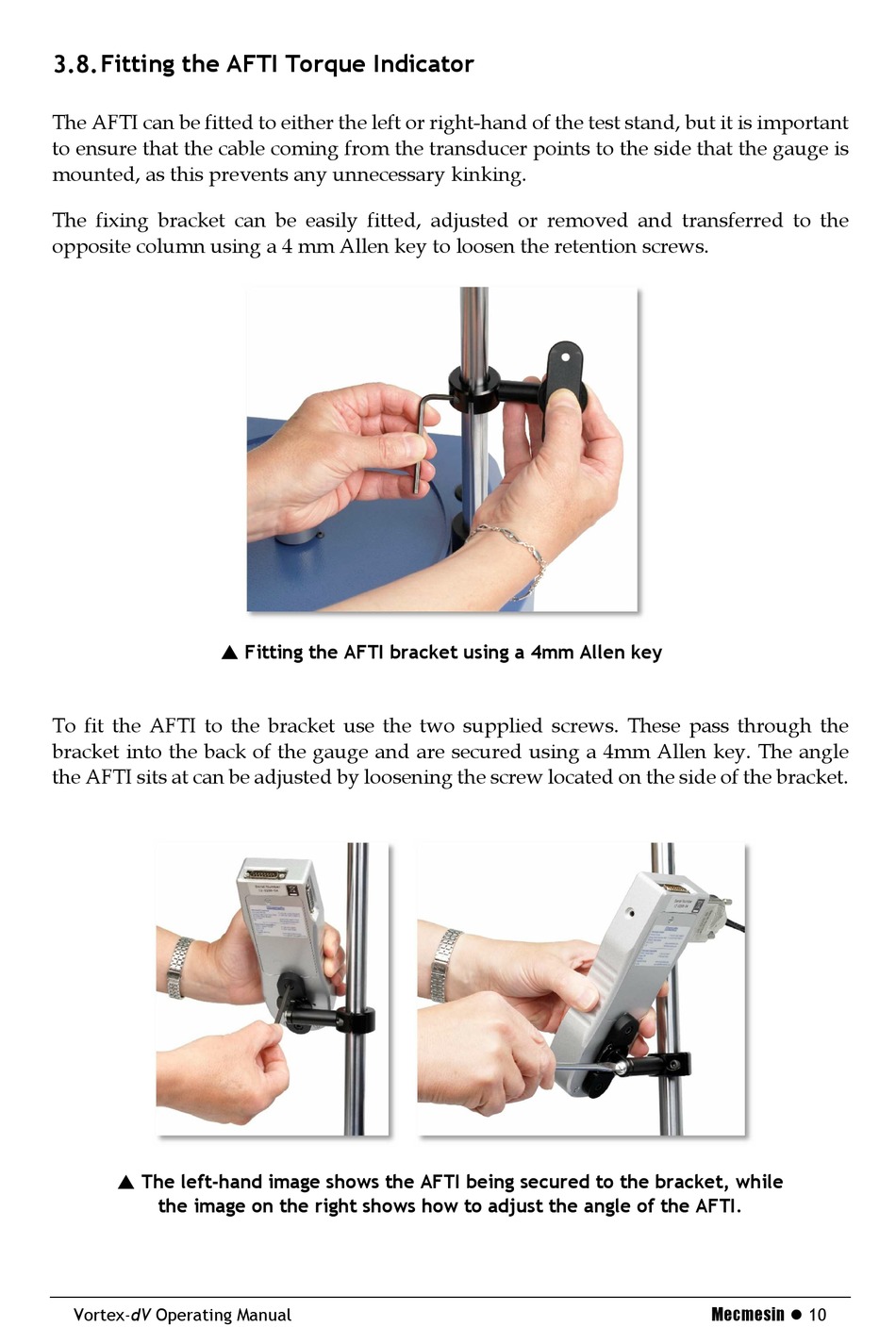

Fitting the AFTI Torque Indicator

The AFTI can be fitted to either the left or right-hand of the test stand, but it is important
to ensure that the cable coming from the transducer points to the side that the gauge is
mounted, as this prevents any unnecessary kinking.
The fixing bracket can be easily fitted, adjusted or removed and transferred to the
opposite column using a 4 mm Allen key to loosen the retention screws.
 Fitting the AFTI bracket using a 4mm Allen key
To fit the AFTI to the bracket use the two supplied screws. These pass through the
bracket into the back of the gauge and are secured using a 4mm Allen key. The angle
the AFTI sits at can be adjusted by loosening the screw located on the side of the bracket.
 The left-hand image shows the AFTI being secured to the bracket, while
the image on the right shows how to adjust the angle of the AFTI.
