Emergency stop

Emergency Stop Button

Push to stop the crosshead movement. Rotate the button to release it and
resume crosshead control. If pressed during a test, do not restart a test, ensure
you remove any residual force using the test stand's jog controls.

Multi-function Scroll Wheel Control

Scroll Wheel Colours
The lights surrounding the wheel illuminate in three colours, indicating the status of the
test stand:
Green Light
Pulsating: Ready to start test
Rotating: Scrolling through a
menu
MultiTest-dV Operating Manual

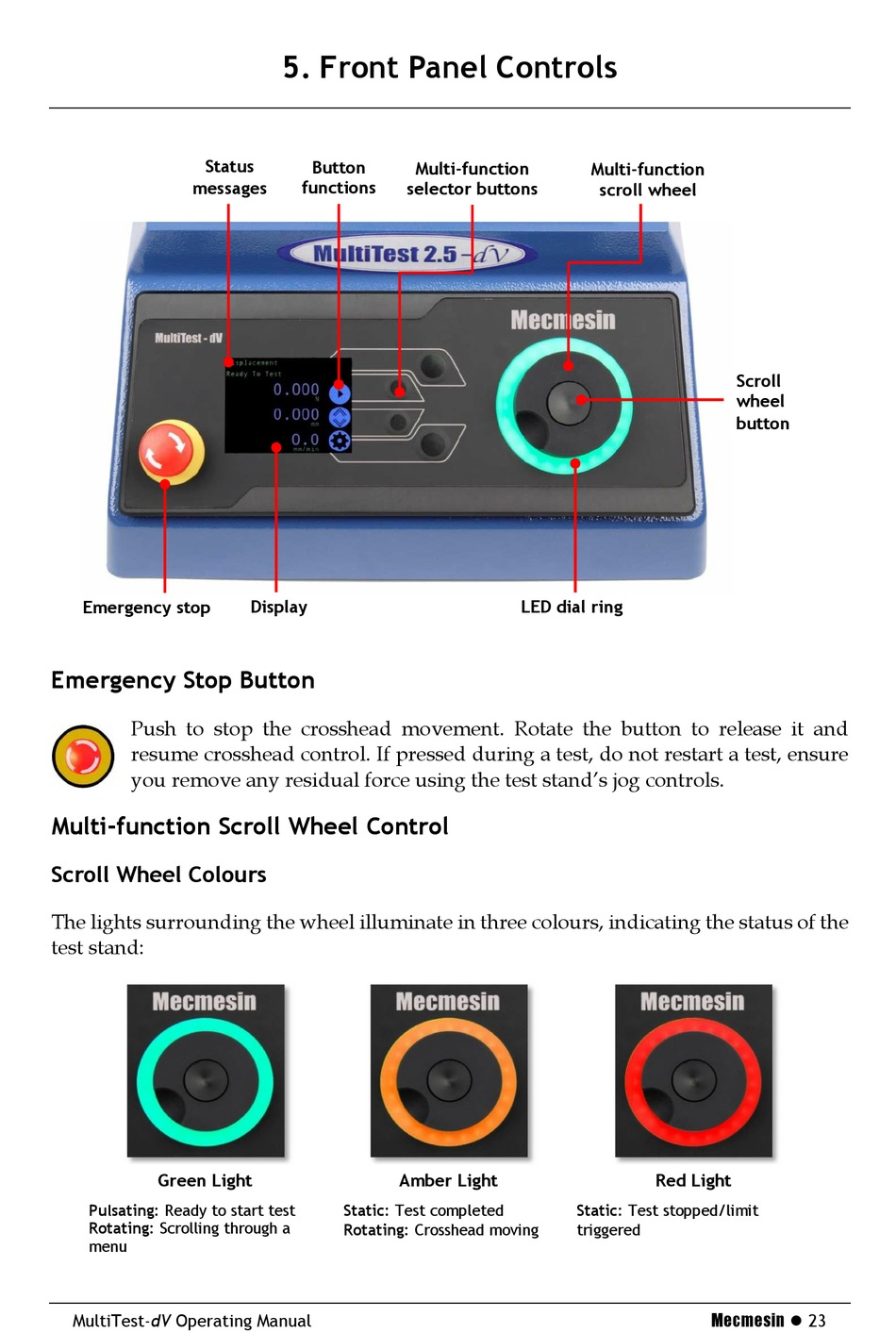

5. Front Panel Controls

Button
Multi-function
functions
selector buttons
Display
Amber Light
Static: Test completed
Rotating: Crosshead moving
Multi-function
scroll wheel
LED dial ring
Red Light
Static: Test stopped/limit
triggered
Scroll
wheel
button
