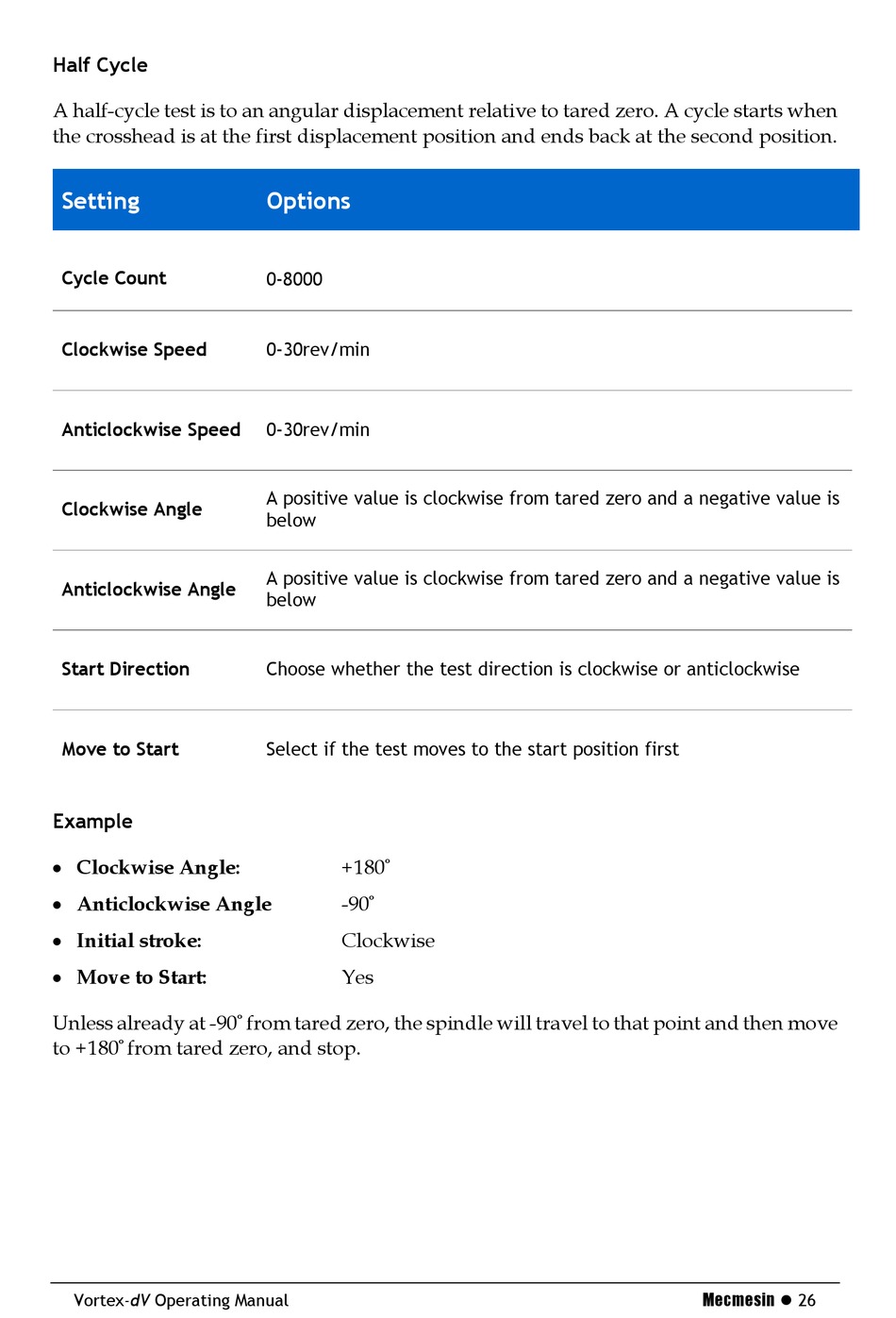

Mecmesin Vortex-dV Operating Manual page 26

Half Cycle
A half-cycle test is to an angular displacement relative to tared zero. A cycle starts when
the crosshead is at the first displacement position and ends back at the second position.
Setting
Cycle Count
Clockwise Speed
Anticlockwise Speed
Clockwise Angle
Anticlockwise Angle
Start Direction
Move to Start
Example
 Clockwise Angle:
 Anticlockwise Angle
 Initial stroke:
 Move to Start:
Unless already at -90
to +180 from tared zero, and stop.
°
Vortex-dV Operating Manual
Options
0-8000
0-30rev/min
0-30rev/min
A positive value is clockwise from tared zero and a negative value is
below
A positive value is clockwise from tared zero and a negative value is
below
Choose whether the test direction is clockwise or anticlockwise
Select if the test moves to the start position first
+180
°
-90
°
Clockwise
Yes
from tared zero, the spindle will travel to that point and then move
°
